Description
Product Description

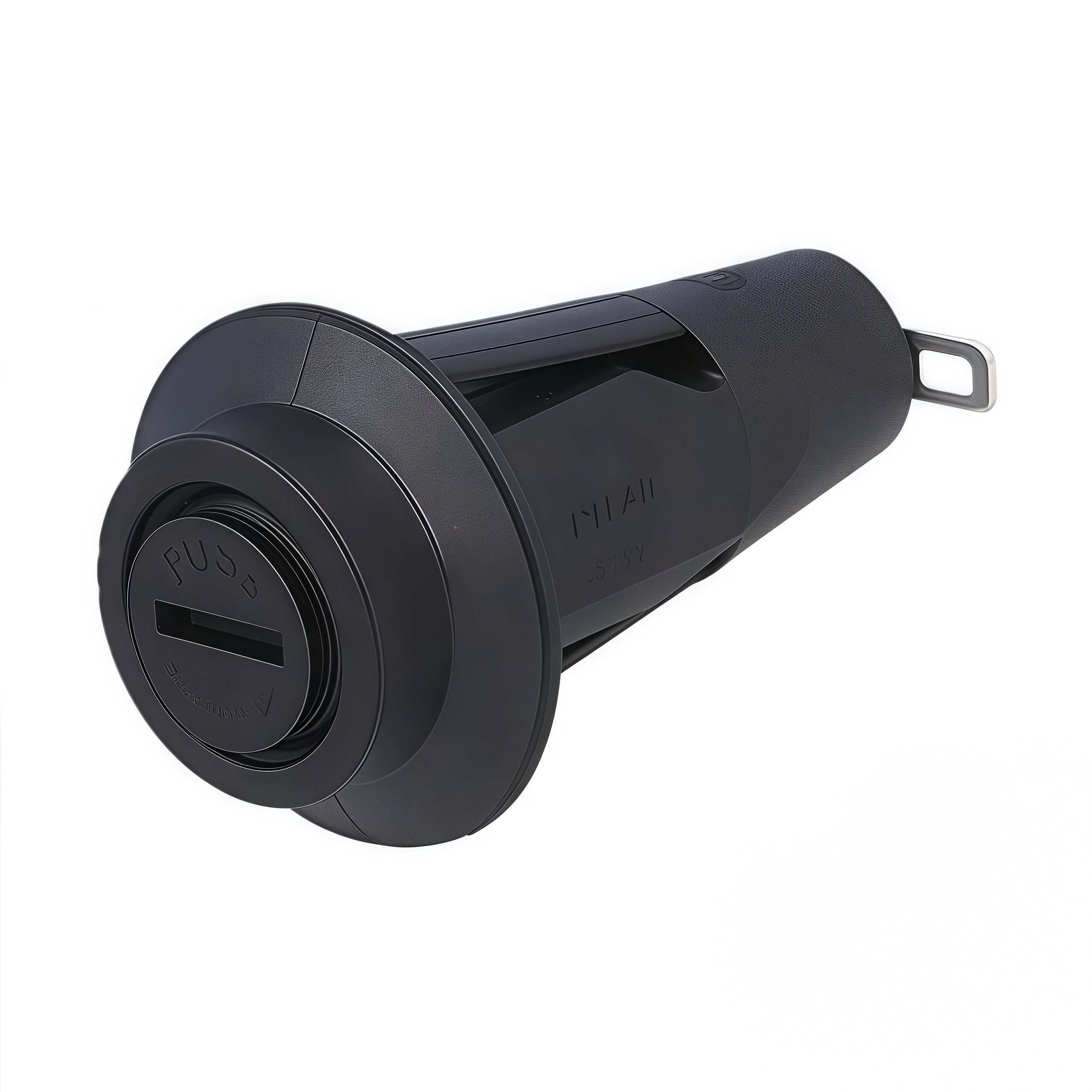

The panel-mounted fuse holder is convenient for inspection and repair, and does not need to disassemble the machine to replace the fuse.
Features
- Anti-vibration design eliminates accidental electric shocks for operators
- Compact design, small structure
- Snap-in mounting
- PBT, UL94V-0 material boy
- Straight quick connect terminal, easy to wire
- Can be installed on the panel without a screw driver
- 250Vac 6.3A Rating
- For 5.2x20mm fuses usage
- Ambient Temperature: -20℃~125℃
- lnsulation Resistance: >100mOhm @ 500Vdc
- Contact Resistance: 5mOhm at 1A DC
- Dielectric Strength: >1500acV 1 minute
- Nickel / tin plated brass terminals:
| Item Name | PTF-40 Snap-in Fuse Holder |
| Mounting Type | Panel |
| Terminal Width | 3 mm |
| Terminal thickness | 0.5mm |
| Max Diameter | 22 mm |
| Length | 37.5 mm |
| Cut-out diameter | 12.7 mm |
| MOQ | 1000PCS |
