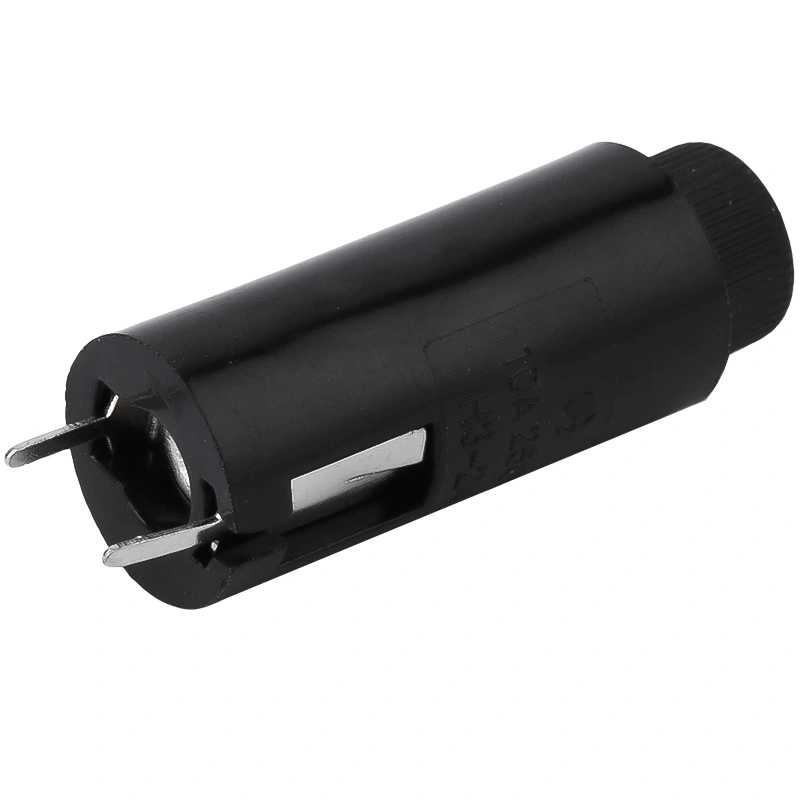

Fuse Holder pcb mount vertical R3/24 panel fuse holder
Product Introduction
1. Product model: R3-24
2. Rated current: 10A
3. Rated voltage: 250V/125V (AC/DC)
4. Fitting: 5 x 20mm fuse pipe
5. Split current: 50A
6. Base: Black Bakelite (UL-94V0)
7. Terminal: 0.5mm (phosphor)
8. Withstand voltage: 3000VAC
9. Contact resistance: <5mΩ
10. Insulation resistance: >100MΩ
Note: Product changes are not notified
