Description

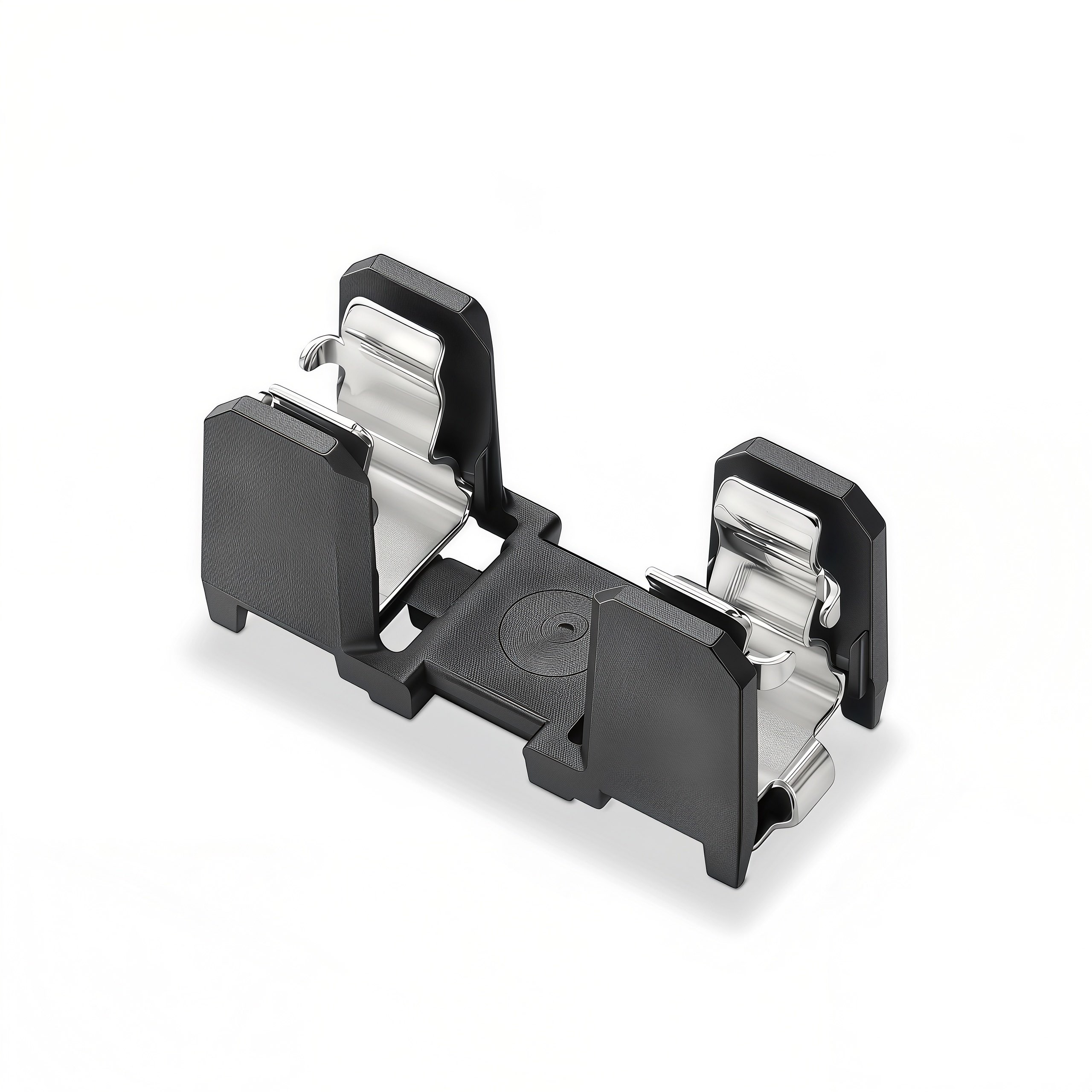

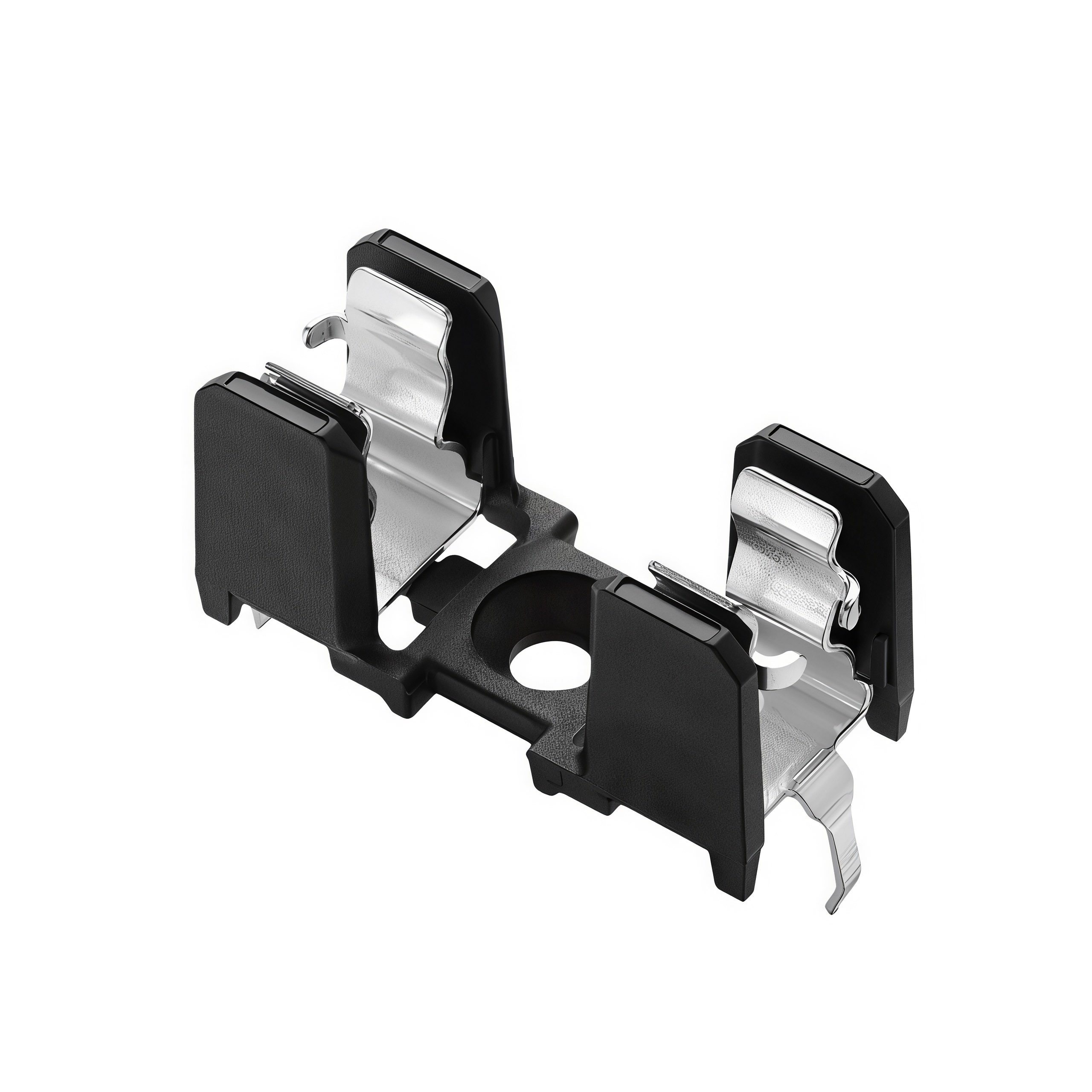

Product model: PTF /15S-1 Fuse Holder Block PTF/15S-1 5×20 SMT PCB Mount Fuse Holder Surface Mount Fuse Holder
Applicable fuse: 5.2x20mm
Suitable for: PCB installation and welding(SMT)
Terminals: Tin copper alloy
Base: PBT + GF30. Upper cover: PC
Working voltage: 500V (250V) AC
Rated current: 16A mxa:20A
Working temperature: -40℃ to 130℃
Flame Retardant Grade: UL-94V0
Welding temperature: 200℃℃ (3 seconds)
Insulation Resistance: > 10 MΩ (500 VDC: 1 min)
Voltage withstand: 1500V (DC)
