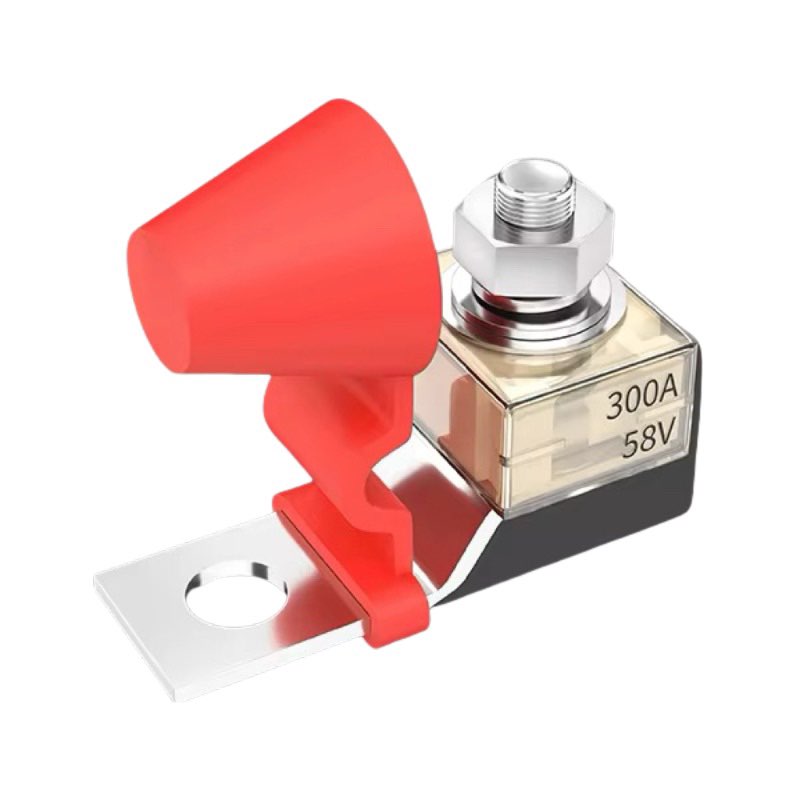

Battery Terminal Fuses ANL/B058 Bolt Marine Fuse
The characteristics of the fuse may change depending on the usage conditions. Product description
Rated voltage: less than DC 58V
Rated interrupting capacity: 2,000A@58V DC
30 A to 100 A fuses operate at up to 105 °C; 125 A to 300 A fuses operate at up to 125 °C
Material:
1. Copper alloy
2. Ceramic
3. Plastic
Execution Standard: ISO 8820-6 and DIN 72581-5
Certified lead-free and RoHS compliant
- Transparent covers make it easier to see when fuses blow
- Fuses install like insulating nuts
Product dimensions
Product Catalog
| P/N | Rated Voltage | Rated Current | Color |
| ANL-B58030 | 58V DC | 30A | Cyan |
| ANL-B58040 | 58V DC | 40A | Blue |
| ANL-B58050 | 58V DC | 50A | Red |
| ANL-B58060 | 58V DC | 60A | Golden |
| ANL-B58075 | 58V DC | 75A | Oxblood red |
| ANL-B58080 | 58V DC | 80A | Green |
| ANL-B58090 | 58V DC | 90A | Violet |
| ANL-B58100 | 58V DC | 100A | Yellow |
| ANL-B58125 | 58V DC | 125A | Sky blue |
| ANL-B58150 | 58V DC | 150A | Orange |
| ANL-B58175 | 58V DC | 175A | White |
| ANL-B58200 | 58V DC | 200A | Navy blue |
| ANL-B58250 | 58V DC | 250A | Pink |
| ANL-B58300 | 58V DC | 300A | Gray |
Fusing characteristics
| Rated current% | Rated time | ||
|---|---|---|---|
| Min | Max | ||
| 100% | 100 hrs. | — | |
| 135% | 5 s | 1800 s | |
| 150% | 1 s | 600 s | |
| 200% | 0.2 s | 60 s | |
| 350% | 0.03 s | 1 s | |
| 600% | 0.01 s | 0.2 s | |
