Product Information

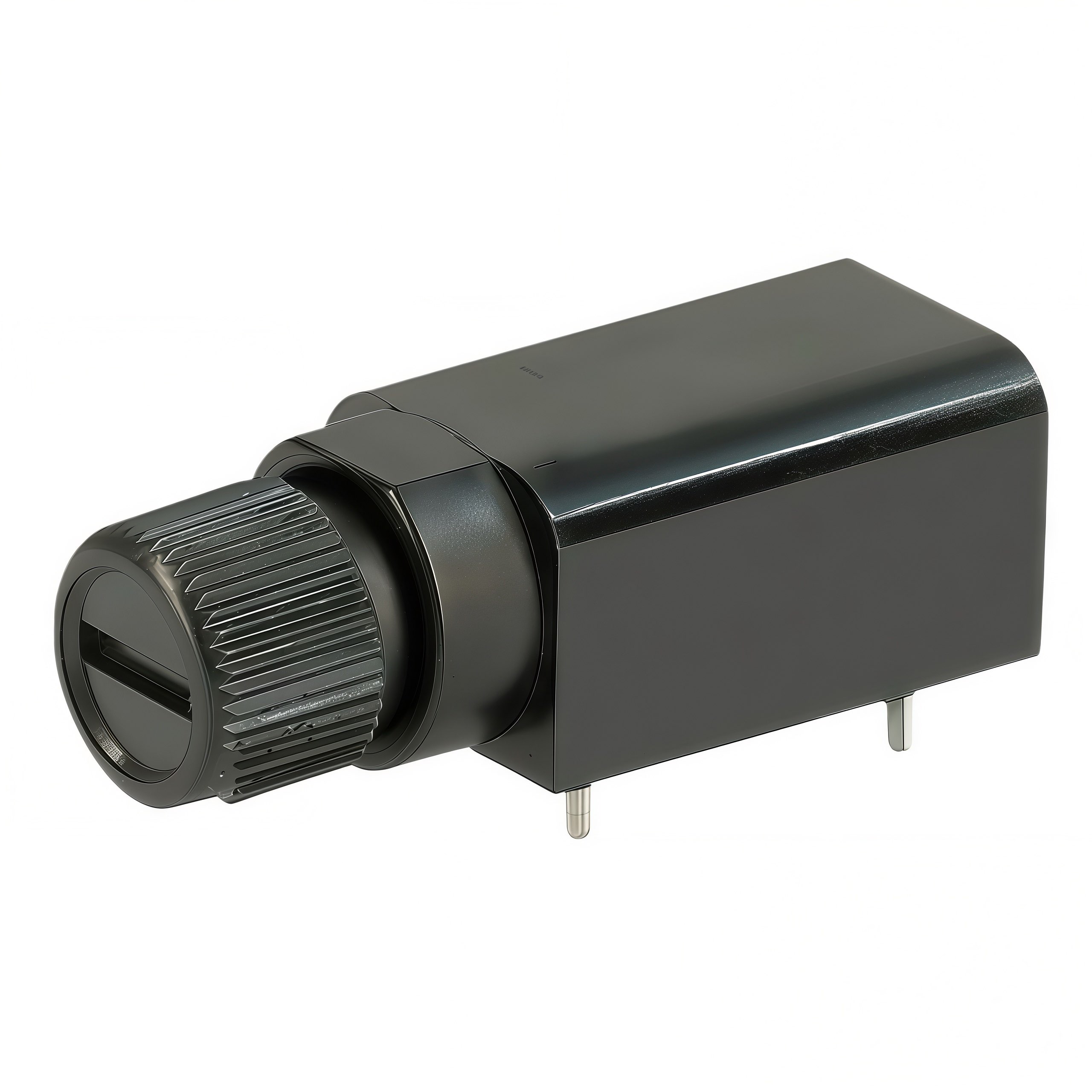

Model: PTFE/50A PCB Mount Fuse Blocks
Brand: GFEFUSE
Nominal rated value: 10A/250V.10A500V
Installation method: PCB type
Allowable working temperature: -20 degrees Celsius to+85 degrees Celsius
Molding material: PBT-UL94 V0 or V2 glass filling
Allowable welding temperature: 270 degrees Celsius, maximum duration 53
Contact resistance: maximum 10m ohms
Terminal: Tin plated copper alloy
Fuse connection: 5 X 20mm
