ANL/B100SF39 High Current Bolt Down Fuse: The Ultimate Guide to Bolt-on Fuse
When it comes to reliable high-current circuit protection for automotive, marine, industrial, and renewable energy systems, the ANL/B100SF39 high current bolt down fuse stands out as a top-tier bolt-on fuse solution. Designed to meet strict safety standards for heavy-duty electrical circuits, this ANL series fuse delivers exceptional performance, durability, and stability, making it the go-to choice for professionals and DIY enthusiasts alike. In this comprehensive guide, we’ll dive deep into the specifications, features, applications, installation, and selection tips of the ANL/B100SF39 bolt-on fuse to help you make an informed decision for your circuit protection needs.
What is ANL/B100SF39 Bolt-on Fuse?
The ANL/B100SF39 is a specialized high current bolt down fuse belonging to the ANL (Automotive Negative Logic) fuse series, a widely recognized standard for heavy-duty bolt-on fuses in low-voltage high-current circuits. Unlike traditional plug-in fuses, this bolt-down fuse features a fixed mounting design with bolt terminals, ensuring secure connection even in high-vibration environments such as vehicles, ships, and industrial machinery.
Marked as ANL B/100SF39, this model is a 100A rated ANL bolt-on fuse, engineered to protect electrical systems from overcurrent, short circuit, and overload damage. It’s a non-time-delay (fast-acting) fuse with excellent current-limiting performance, quickly disconnecting the faulty circuit to prevent component burnout, fire risks, and system failures. Its compact yet robust construction makes it suitable for space-constrained installations while handling high-power electrical loads effortlessly.
Core Specifications of ANL/B100SF39 High Current Bolt Down Fuse
Understanding the detailed specifications of the ANL/B100SF39 bolt-on fuse is critical for proper application and compatibility. Below are the key technical parameters that define its performance:
- Model Number: ANL/B100SF39 (B100SF39)
- Fuse Type: ANL Series Bolt-on/Bolt Down High Current Fuse
- Rated Current: 100 Amps (100A)
- Rated Voltage: 32V AC / 80V DC (ideal for 12V, 24V, 48V.58V.72V.100V125V150V low-voltage systems)
- Mounting Style: Bolt-down (bolt-on) fork terminal design
- Operation Style: Non time-delay (fast-acting) with current-limiting function
- Body Material: High-temperature resistant insulating plastic (phenolic resin)
- Conductor Material: Silver-plated copper melt core, nickel-plated bolt terminals
- Dimensions: Standard ANL fuse size (approx. 55.4mm × 17mm)
- Breaking Capacity: Up to 2700A DC, ensuring safe circuit interruption under fault conditions
- Certifications: Complies with international industry standards for automotive and industrial fuses
Key Features of ANL/B100SF39 Bolt-on Fuse
The ANL/B100SF39 high current bolt down fuse is packed with features that set it apart from standard fuses, addressing the unique demands of heavy-duty electrical systems:
1. High Current Handling & Low Power Loss
Built with a high-purity silver-plated copper melt core, this 100A ANL bolt-on fuse efficiently conducts high-current electricity with minimal voltage drop and power loss. It’s specifically designed for circuits that require stable high-power transmission, eliminating energy waste and ensuring optimal system performance.
2. Secure Bolt-down Mounting
The bolt-on (bolt down) design eliminates the risk of loose connections caused by vibration, a common issue in automotive, marine, and industrial settings. The sturdy bolt terminals provide a firm, permanent fixture, making the fuse resistant to shock, vibration, and mechanical impact—perfect for mobile equipment and heavy machinery.
3. Fast-acting Overcurrent Protection
As a non-time-delay fuse, the ANL/B100SF39 responds instantly to overcurrent and short circuit faults. It rapidly melts the core to cut off power, preventing damage to expensive electrical components such as batteries, inverters, amplifiers, and motors. Its reliable current-limiting ability also reduces arc flash risks, enhancing overall system safety.
4. Corrosion Resistance & Long Durability
The terminals are nickel-plated to resist rust, oxidation, and corrosion, even in harsh environments like marine saltwater, high humidity, or industrial dust. The high-temperature resistant insulating body can withstand extreme thermal fluctuations, ensuring stable performance and a long service life without cracking or degrading.
5. Universal Compatibility
This ANL series bolt down fuse is fully compatible with standard ANL fuse holders, making it easy to replace existing fuses or integrate into new electrical systems. It works seamlessly with 12V/24V/48V DC circuits, the most common voltage setups for automotive, RV, marine, and solar applications.
Wide Applications of ANL/B100SF39 High Current Bolt Down Fuse
The versatility of the ANL/B100SF39 bolt-on fuse makes it suitable for a broad range of high-current circuit protection scenarios. Here are the most common applications:
Automotive & Vehicle Systems
- Car audio amplifiers, subwoofers, and high-power audio systems
- Truck, forklift, and heavy-duty vehicle battery main circuits
- Electric vehicles (EVs), golf carts, and sightseeing bus power systems
- Automotive inverters, winches, and lighting systems
Marine & Boat Electrical Systems
- Marine battery banks and charging circuits
- Boat inverters, navigation equipment, and marine audio systems
- Yacht and small ship heavy-current power distribution
RV & Recreational Vehicle Systems
- RV inverter chargers, solar panel charge controllers
- RV appliance power circuits and battery protection
- Camper van high-power electrical installations
Industrial & Renewable Energy
- Solar energy storage systems and battery packs
- Industrial motor control circuits and welding equipment
- Uninterruptible Power Supply (UPS) systems and power distribution units
Installation & Selection Tips for ANL/B100SF39 Bolt-on Fuse
To ensure the ANL/B100SF39 high current bolt down fuse operates safely and effectively, follow these professional installation and selection guidelines:
1. Proper Fuse Selection
- Match the fuse rating to your system’s working current: The 100A ANL/B100SF39 is ideal for circuits with a continuous working current below 100A. Avoid over-sizing or under-sizing—under-sizing causes frequent fuse blowing, while over-sizing reduces protection effectiveness.
- Confirm system voltage: Ensure your system voltage (12V/24V/48V DC) is within the fuse’s 80V DC rated voltage range.
2. Correct Installation Steps
- Always disconnect the power source before installation to avoid electric shock or short circuits.
- Use a dedicated ANL fuse holder compatible with bolt-down fuses for secure mounting.
- Tighten the bolt terminals firmly to ensure good electrical contact, but avoid over-tightening to prevent damage to the fuse or holder.
- Install the fuse in a well-ventilated area away from flammable materials to dissipate heat effectively.
3. Maintenance & Replacement
- Regularly inspect the fuse for signs of damage, corrosion, or melted cores. Replace the fuse immediately if it’s blown or damaged.
- Only replace with the same model (ANL/B100SF39 100A) or equivalent ANL series bolt-on fuse to maintain consistent protection.
Why Choose ANL/B100SF39 Over Other High Current Fuses?
Compared to other types of high-current fuses, the ANL/B100SF39 bolt-down fuse offers unmatched advantages for heavy-duty applications:
- Superior Vibration Resistance: Bolt-on mounting outperforms plug-in fuses in mobile and high-vibration environments.
- Cost-effective Performance: Durable construction reduces frequent replacement costs, offering long-term value.
- Precise Protection: Fast-acting design provides accurate overcurrent protection for sensitive high-power components.
- Wide Availability: As a standard ANL series fuse, it’s easy to source and compatible with most industrial and automotive systems.
Final Thoughts
The ANL/B100SF39 high current bolt down fuse is an essential component for reliable circuit protection in any high-power, low-voltage electrical system. Its robust design, fast-acting performance, and versatile applications make it the top choice for automotive, marine, RV, industrial, and solar projects. Whether you’re upgrading your car audio system, building a marine electrical setup, or protecting industrial equipment, this ANL bolt-on fuse delivers the safety and stability you need.
Always prioritize genuine ANL/B100SF39 fuses from reputable suppliers to ensure quality and compliance with industry standards. With proper selection and installation, this high-current bolt-down fuse will safeguard your electrical systems for years to come.
Related Searches
ANL/B100SF39 fuse, 100A ANL bolt-on fuse, high current bolt down fuse, B100SF39 heavy duty fuse, automotive ANL fuse, marine bolt down fuse, 80V DC 100A fuse
bolt-on fuse ANL/B100SF39 automotive fuse

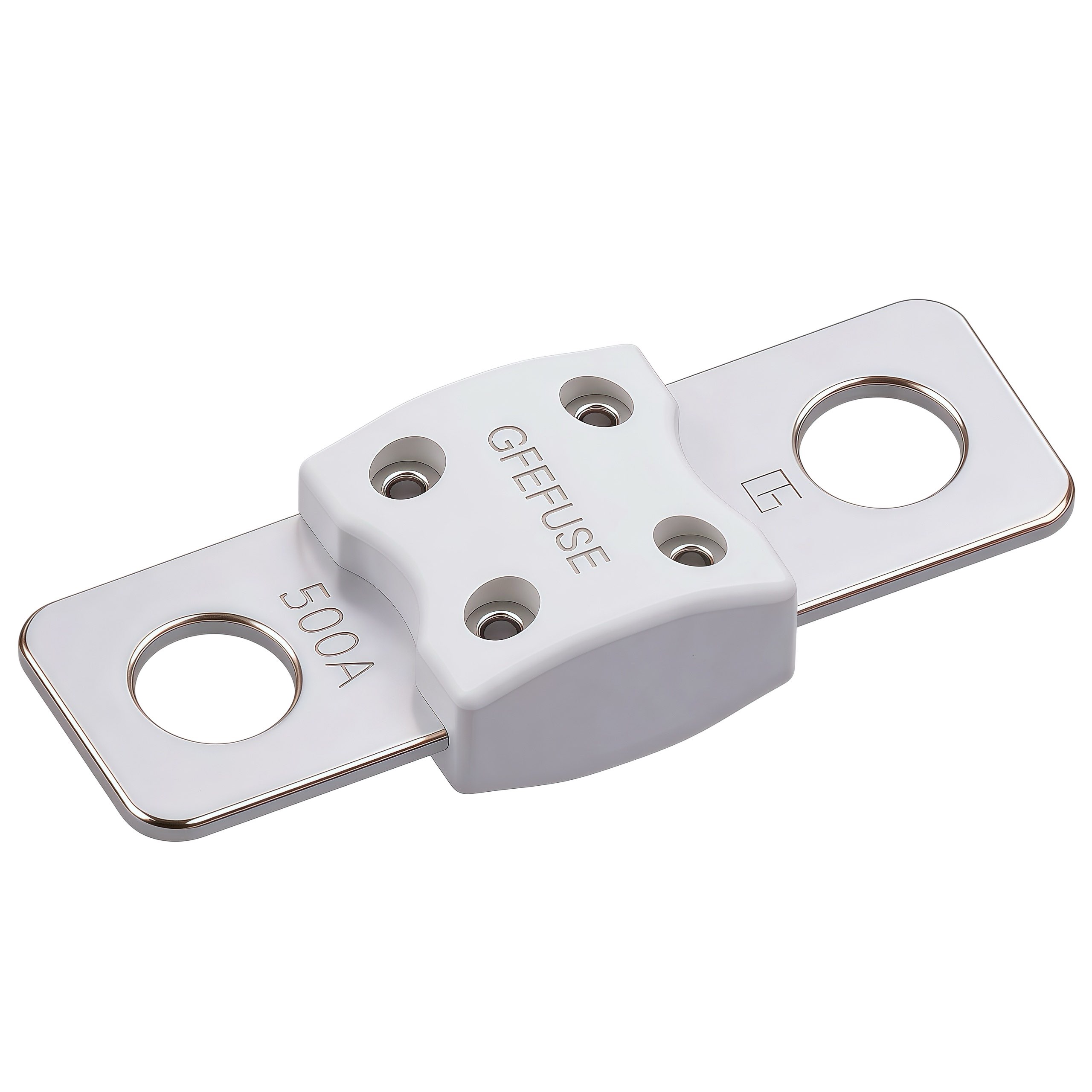

1. Dimensions (mm)
2. Specifications
Shell: Ceramic high temperature resistant
Terminal: Copper alloy, gal. Sn 2 x M8 bolts, Distance 39 mm
Mounting Torque: 10Nm +/- 1Nm
Breaking Capacity: 12V-150V dc
Complies with: UL 248 Special Purpose Fuses
Operating Temperature Range: -40˚C to +125˚C
3. Time-Current Characteristics
| % of Rating | Opening Time Min / Max |
|---|---|
| 100A – 600A | |
| 100 | 4H / ∞ |
| 200 | ~/300s |
| 300 | ~/10s |
Short Circuit Protector only, Products in development – please contact GFEFUSE for more details regarding availability timing.
4. Ratings
| TYPE | Rating Current (A) | Rated Voltage (dc) | Power Waste (W) |
|---|---|---|---|
| ANL-B 100BSF39100 | 100A | 150V 125V |
2.2 |
| ANL-B 100BSF39125 | 125A | 3.18 | |
| ANL-B 100BSF39150 | 150A | 3.6 | |
| ANL-B 100BSF39175 | 175A | 4.63 | |
| ANL-B 100BSF39200 | 200A | 5.5 | |
| ANL-B 100BSF39250 | 250A | 6.25 | |
| ANL-B 100BSF39300 | 300A | 7.08 | |
| ANL-B 100BSF39350 | 350A | 6.12 | |
| ANL-B 100BSF39400 | 400A | 5.8 | |
| ANL-B 100BSF39450 | 450A | 7.1 | |
| ANL-B 100BSF39500 | 500A | 7.5 | |
| ANL-B 100BSF39600 | 600A | 10.92 |
