Description
0001038G 10×38 Panel Mounted Fuse Holder (Fuse Block)
The 0001038G is a high-performance panel-mounted fuse block designed exclusively for 10x38mm cylindrical fuses. Engineered for high-voltage new energy and industrial applications, it provides secure, stable fuse mounting with superior vibration resistance and thermal stability.
Key Specifications
- Model: 0001038G
- Fuse Size: 10x38mm (midget cartridge)
- Rated Current: 32A (DC) / 30A (AC)
- Rated Voltage: 1000V DC / 750V AC
- Body Material: PBT (UL94 V-0) – flame retardant, high temp resistant
- Structure: Threaded screw cap (top-open)
- Termination: Solder terminals
- Operating Temp: -40°C to +180°C
- Mounting: Panel mount (through-hole)
- Certifications: RoHS compliant, IEC standard
Core Features
- Vibration-Proof Design: Threaded top & bottom support structure prevents loose contact under vibration.
- High Voltage/Current: Rated up to 1000V DC, suitable for EV, ESS, PV systems.
- Superior Thermal Stability: Low contact resistance, minimal heat rise at full load.
- Easy Installation: Standard panel cutout, secure screw mounting.
- Quick Fuse Replacement: Screw-off cap for fast fuse access.
- Durable Construction: High-temperature PBT housing resists shock and corrosion.
- Universal Compatibility: Fits all standard 10x38mm aM/gR/gG fuses.
Typical Applications
- Electric Vehicles (EV) & Hybrid (HEV): On-board chargers, BMS, power distribution
- Energy Storage Systems (ESS): Battery banks, inverters, UPS
- Photovoltaic (PV): Solar inverters, combiner boxes
- Industrial Power Supplies: Welding, electroplating, DC drives
- Electrical Equipment: Power cabinets, instrumentation, charging stations
- Telecom & Data Centers: Server power, backup systems
Why Choose 0001038G Fuse Block?
- Premium Build: Threaded design (not cheap spring-hook) for stable long-term performance.
- High Voltage Rating: 1000V DC for modern new energy circuits.
- OEM Quality: Stable contact, low power loss, long service life.
- Bulk Wholesale: Ready stock for large BOM and manufacturing needs.
- Global Certifications: Safe for international markets.
The 0001038G 10×38 panel mounted fuse holder is the professional choice for high-voltage DC/AC circuit protection. Its robust design, high temperature resistance, and vibration-proof structure make it ideal for EV, ESS, solar, and industrial applications.

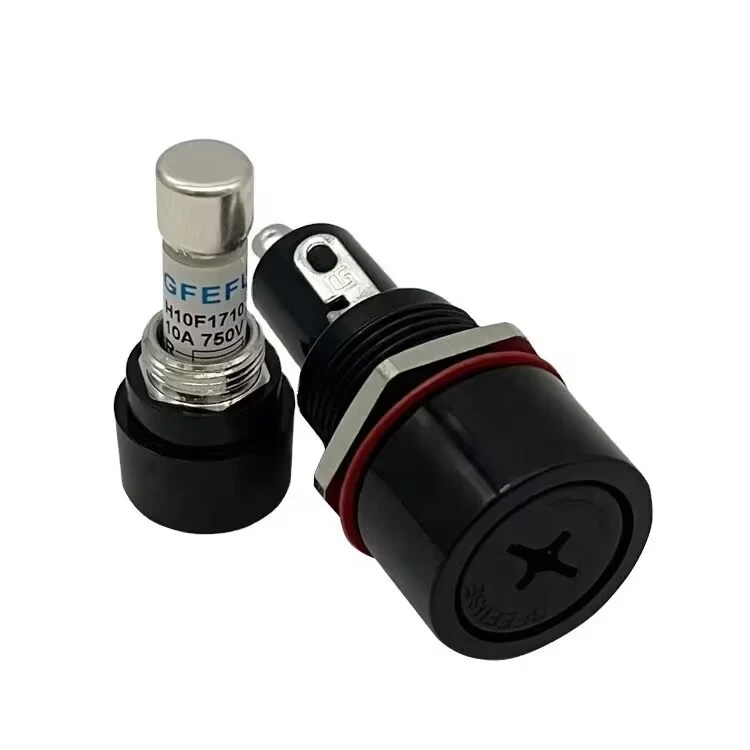

- Product Image:
- Product model: 0001038G fuse holder
- Product application: 10×38 fuse (GFEFUSE® H10HF matching fuse)
- Electrical parameters: 50A 750V (AC), 32A 1000V (DC)
- Clip / terminal: Tinned copper alloy
- Working temperature: Up to 125 ℃
- Material Flammability: UL 94 V-0
- Material: Polybutylene terephthalate
- Insulation resistance: >100mΩ
- Pressure: >3000Vac
- Contact resistance: <5mΩ
