Description

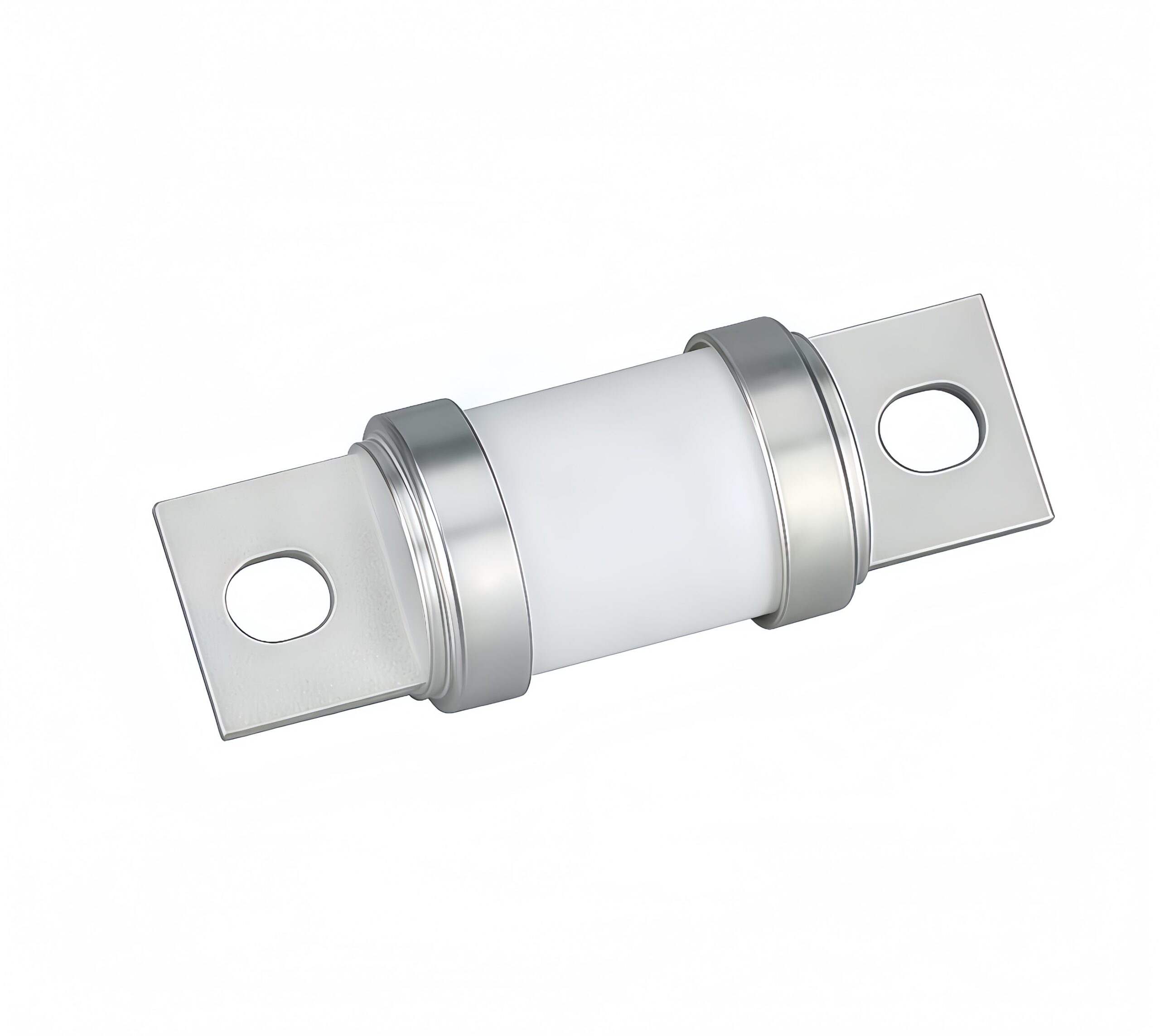

GFEVT/1000-38R High-Speed DC Automotive Fuse 250A-400A 1000V
The GFEVT/1000-38R high-speed fuse is a professional DC overcurrent protection component specially developed for automotive new energy systems, belonging to high-performance fast-acting automotive fuses. This 1000V DC high-speed fuse has a rated current range of 250A to 400A, which is specially designed to match the high-voltage DC circuit protection requirements of electric vehicles, providing stable and efficient fault protection for automotive power systems.
As a dedicated 1000V DC automotive high-speed fuse, the GFEVT/1000-38R adopts an optimized fast-acting structure, which can quickly cut off the circuit in the event of short-circuit and overcurrent faults in automotive electrical systems. It effectively avoids damage to key components such as vehicle power batteries, motor controllers and DC distribution units, and greatly improves the safety and stability of the entire automotive electrical system.
In terms of product performance, the GFEVT/1000-38R high-speed fuse has excellent temperature resistance, shock resistance and vibration resistance, fully adapting to the complex and changeable operating environment of vehicles. It is made of high-quality insulating and conductive materials, with low power loss, stable electrical performance and long service life, fully meeting the long-term durable use needs of automotive DC circuits.
The GFEVT/1000-38R 250A-400A 1000V DC high-speed fuse is widely used in pure electric vehicles, hybrid electric vehicles, automotive high-voltage DC distribution cabinets, vehicle-mounted energy storage modules and other automotive new energy scenarios. It is an essential core protection component for automotive high-voltage DC circuits, and its performance fully complies with relevant automotive electrical component standards.
EssFuse, as a professional fuse manufacturer, provides genuine GFEVT/1000-38R high-speed automotive fuses with complete specifications, reliable quality and strict quality control. We are committed to providing safe and stable high-voltage DC circuit protection solutions for the automotive new energy industry, and meeting the customized protection needs of different automotive electrical systems.
GFEVT/1000-38R high-speed fuse 250A-400A 1000V Dc Automotive fuses
Specifications
Ratings & Features Applications :
- Volts: 1000 Vdc;
- Amps: 250A-400A;
- Interrupting Capacity :
Rated Breaking Capacity：50 kA;
Min BC ≥ 3.0 In;
Time Constant：≤5 ms;
Type：aR
Design For Dc Applications ;
Excellent Dc Performance ;
Electrical Energy Storage ；
Battery Pack Protection ；
Standards / Approvals
Refer To IEC 60269.4/UL 248.13/JASO-D622
Reach Declaration Available Upon Request;
RoHS Compliant.
