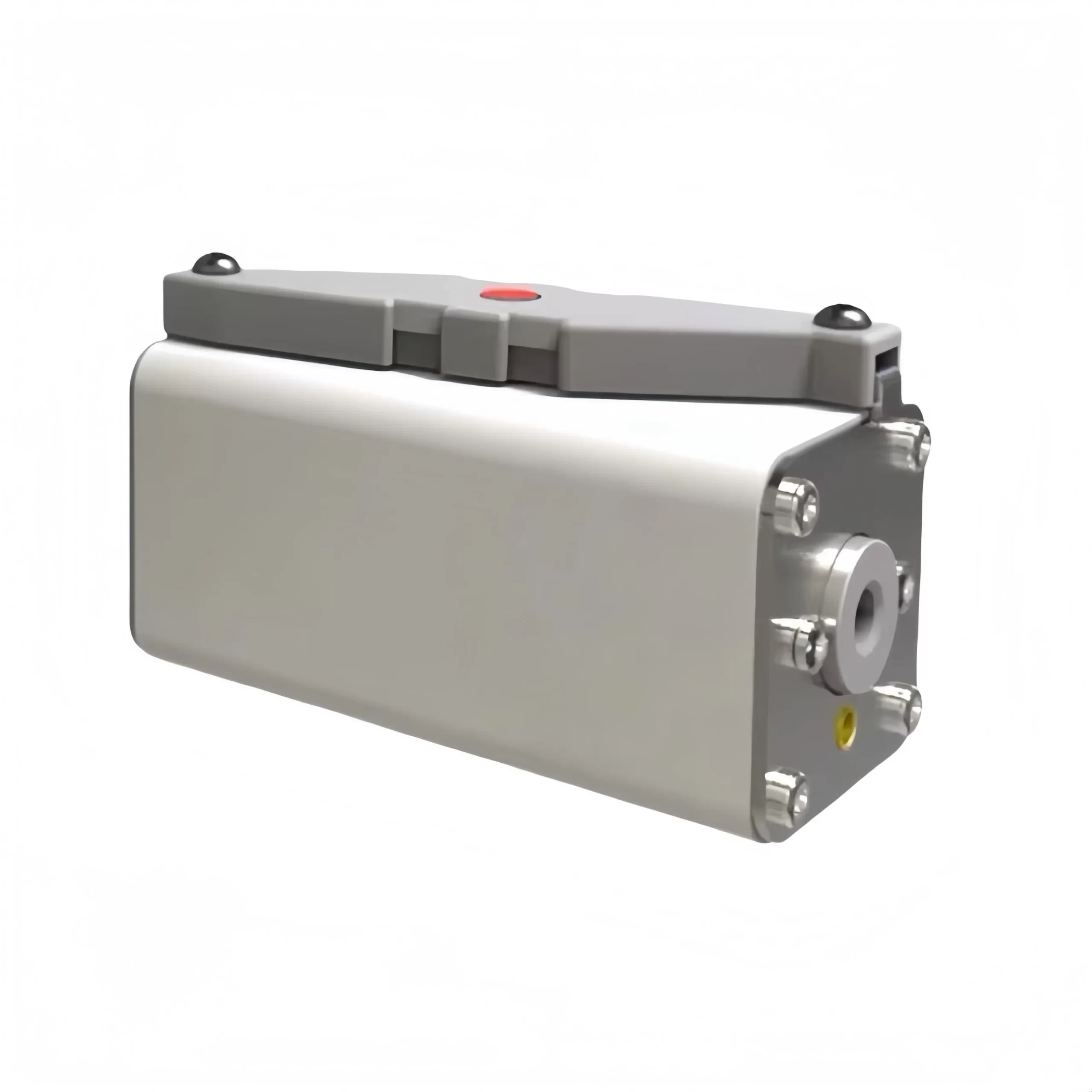

GFEVT1500-A-59ES High Speed Fuse 100A-630A 1500Vdc/Electric vehicle fuse manufacturer

Dongguan Gongfu Electronics Co., Ltd. specializes in the production of: high-speed fuses, bolt fuse holders, ANL fuses, bolt fuses, MEGA fuses, MEGA fuse holders, MIDI fuses, MIDI fuse holders, blade fuses, fuses, fuse holders, fuse clips, automotive fuses, automotive fuse holders, automotive fuse boxes, DC fuses, new energy fuses, energy storage fuses, photovoltaic fuses, panel fuse holders, current fuse holders, fuse boxes, 5×20 fuse holders, 6X30 fuse holders. 10×38 fuse holders, high and low voltage fuses, semiconductor fuses, fast-acting fuses, wiring harness fuse holders, PCB fuse holders, substrate fuse holders, rail fuse holders, DC fuse holders and other fuse accessories. Our products have obtained UL, cULus, Tuv, CE, CQC and other certifications. Our products comply with ROHS and REACH standards and provide one-stop solutions.

Features & Benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
Greater ampacity within sizing guidelines.
Excellent power of resisting voltaic impingement and environmental temperature tolerance.
Excellent resistance to mechanical vibration and impact resistance.

Dimensions (mm)

Description

Standards/Approvals

Fuse Ratings

Connect	Part No.	Fuse Amps	Average @50KA/1500Vdc		Power Loss (W)		Approvals
			A²s Melting	A²t Clearing	80%	100%	REACH	ROHS
Flush-end contact	GFEVT1500-100A-59ES	100A	2370	8857	41	53	●	●
Flush-end contact	GFEVT1500-125A-59ES	125A	4890	13219	47	60	●	●
Flush-end contact	GFEVT1500-160A-59ES	160A	7192	19440	50	64	●	●
Flush-end contact	GFEVT1500-200A-59ES	200A	11066	29907	68	86	●	●
Flush-end contact	GFEVT1500-250A-59ES	250A	17940	48480	86	107	●	●
Flush-end contact	GFEVT1500-315A-59ES	315A	30568	82610	102	127	●	●
Flush-end contact	GFEVT1500-350A-59ES	350A	40655	109878	109	136	●	●
Flush-end contact	GFEVT1500-400A-59ES	400A	58496	158090	121	151	●	●
Flush-end contact	GFEVT1500-450A-59ES	450A	78890	213215	128	161	○ Pending	○ Pending
Flush-end contact	GFEVT1500-500A-59ES	500A	101503	274330	139	174	○ Pending	○ Pending
Flush-end contact	GFEVT1500-550A-59ES	550A	125982	340490	155	194	○ Pending	○ Pending
Flush-end contact	GFEVT1500-630A-59ES	630A	185020	500100	162	203	○ Pending	○ Pending

GFEVT1500-A-59ES High Speed ​​Fuse 100A-630A 1500Vdc/Electric vehicle fuse manufacturer
