Description

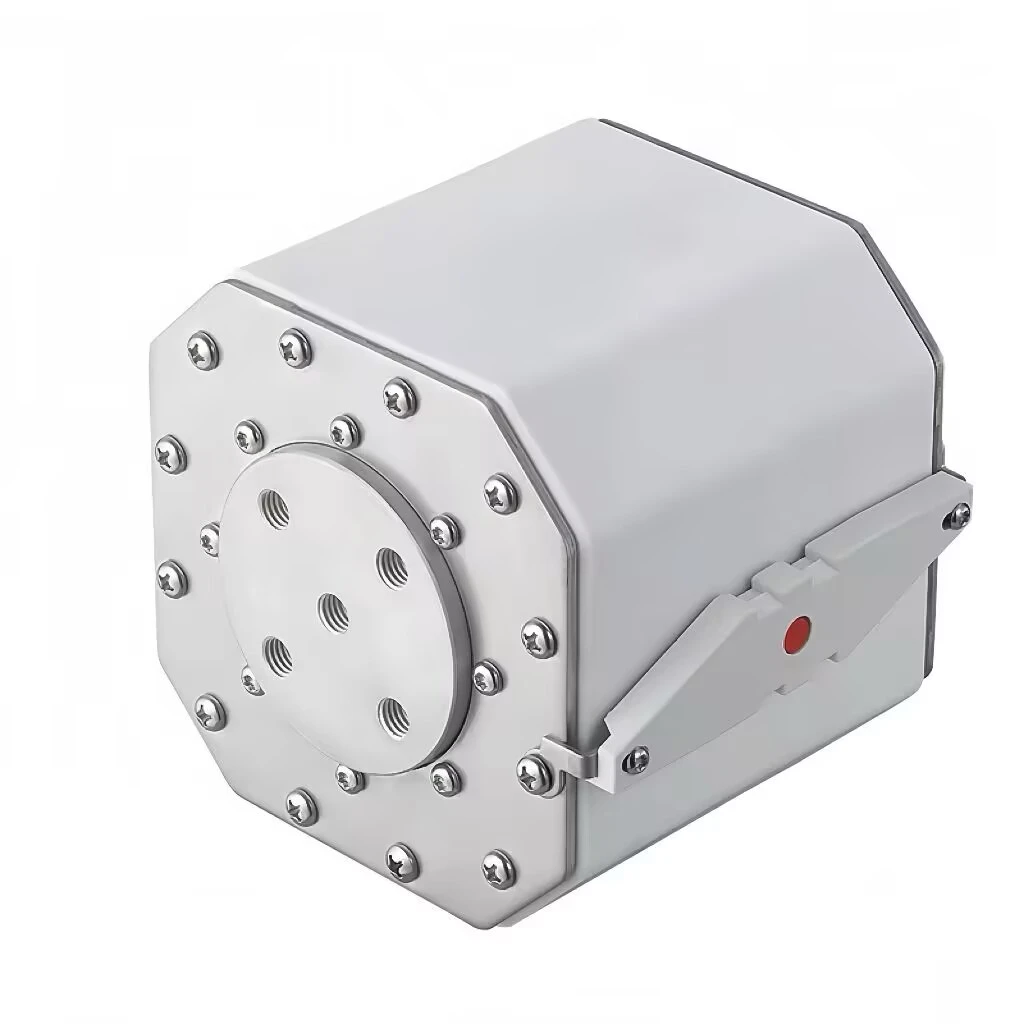

GFEVT1500-D-105E high-speed fuse 400A-2000A 1500Vdc/EV fuse
Dimensions (mm) 尺寸
Description
- Design For DC Applications
- Low arc voltage and low energy let-through(12t)
- DC Drives
- Battery pack protection
- Excellent Dc Performance
- Superior cycling capability
- Application: Fast Acting
Standards/Approvals
- Refer To UL 248-13, IEC 60269-4
- Reach Declaration Available Upon Request
- RoHS Compliant
Work/Storage condition
Work within the temperature -40°C to +85°C range
This product is a bolt connected fuse for partial range protection, with strong current limiting, high breaking capacity and other characteristics.
It is suitable for energy storage, wind power and other industry applications, which can be used as short-circuit protection for energy power systems and other devices and equipments.
Fuse Ratings
| Part No. | Fuse Amps | Size | Average @ 250KA/1500Vdc | Power Loss (W) 1.0In | |
|---|---|---|---|---|---|
| A²s Melting | A²s Clearing | ||||
| GFEVVT1500-400D-105E | 400 | 4 # | 25,834 | 136,415 | 190 |
| GFEVVT1500-500D-105E | 500 | 4 # | 57,389 | 276,828 | 195 |
| GFEVVT1500-630D-105E | 630 | 4 # | 117,654 | 567,527 | 228 |
| GFEVVT1500-700D-105E | 700 | 4 # | 162,326 | 783,014 | 245 |
| GFEVVT1500-800D-105E | 800 | 4 # | 240,110 | 1,158,220 | 255 |
| GFEVVT1500-900D-105E | 900 | 4 # | 345,759 | 1,667,836 | 276 |
| GFEVVT1500-1000D-105E | 1000 | 4 # | 470,616 | 2,270,110 | 290 |
| GFEVVT1500-1100D-105E | 1100 | 4 # | 623,250 | 3,006,366 | 310 |
| GFEVVT1500-1200D-105E | 1200 | 4 # | 754,483 | 3,620,561 | 319 |
| GFEVVT1500-1250D-105E | 1250 | 4 # | 918,230 | 4,429,260 | 326 |
| GFEVVT1500-1300D-105E | 1300 | 4 # | 1,009,830 | 5,254,527 | 335 |
| GFEVVT1500-1350D-105E | 1350 | 4 # | 1,294,848 | 6,245,949 | 347 |
| GFEVVT1500-1400D-105E | 1400 | 4 # | 1,399,970 | 6,986,564 | 352 |
| GFEVVT1500-1500D-105E | 1500 | 4 # | 1,581,795 | 7,630,093 | 360 |
| GFEVVT1500-1600D-105E | 1600 | 4 # | 1,927,554 | 9,297,929 | 372 |
| GFEVVT1500-1800D-105E | 1800 | 4 # | 2,734,600 | 13,190,870 | 392 |
| GFEVVT1500-2000D-105E | 2000 | 4 # | 3,603,985 | 18,860,380 | 410 |
