Description
GFEFUSE specializes in the production of fuse holders, fuses, auto fuses, auto fuse holders, DC fuses, photovoltaic fuses, fuse accessories and other one-stop solutions
Dimension Drawing
Product Introduction

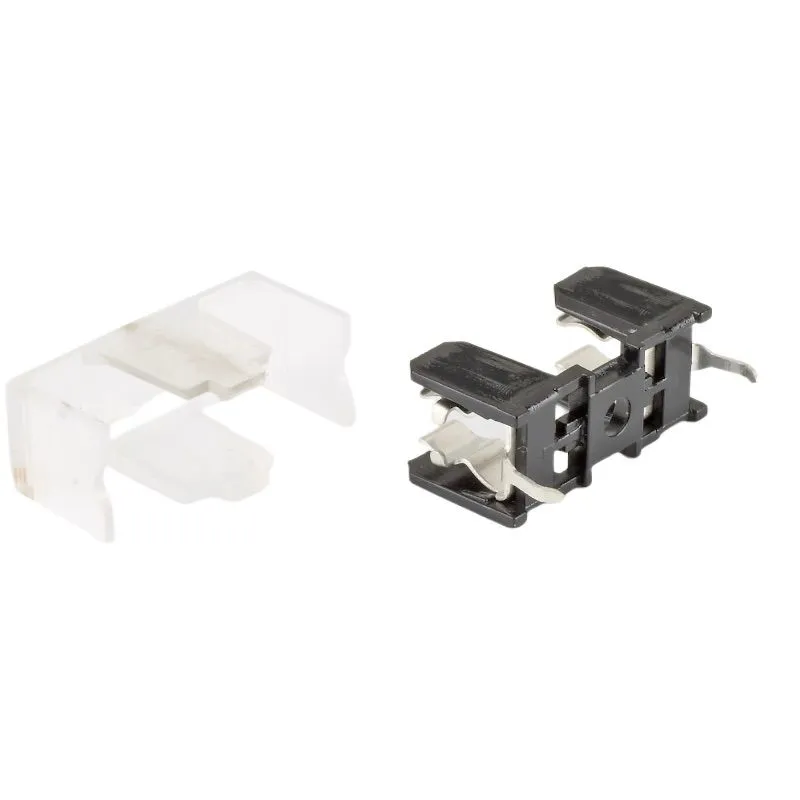

Product model: PTF (15S)
Applicable fuse: 5.2x20mm
Suitable for: PCB installation and welding
Terminals: Tin copper alloy
Base: PBT + GF30. Upper cover: PC
Working voltage: 500V (250V) AC
Rated current: 16A
Working temperature: -40℃ to 130℃
Flame Retardant Grade: UL-94V0
Welding temperature: 230℃-240℃ (3 seconds)
Insulation Resistance: > 10 MΩ (500 VDC: 1 min)
Voltage withstand: 1500V (DC)
GFEFUSE specializes in the production of fuse holders, fuses, automotive fuses, automotive fuse holders, DC fuses, photovoltaic fuses, fuse accessories and other one-stop solutions. The products have obtained UL, CQC, CE, TUV and other certifications
