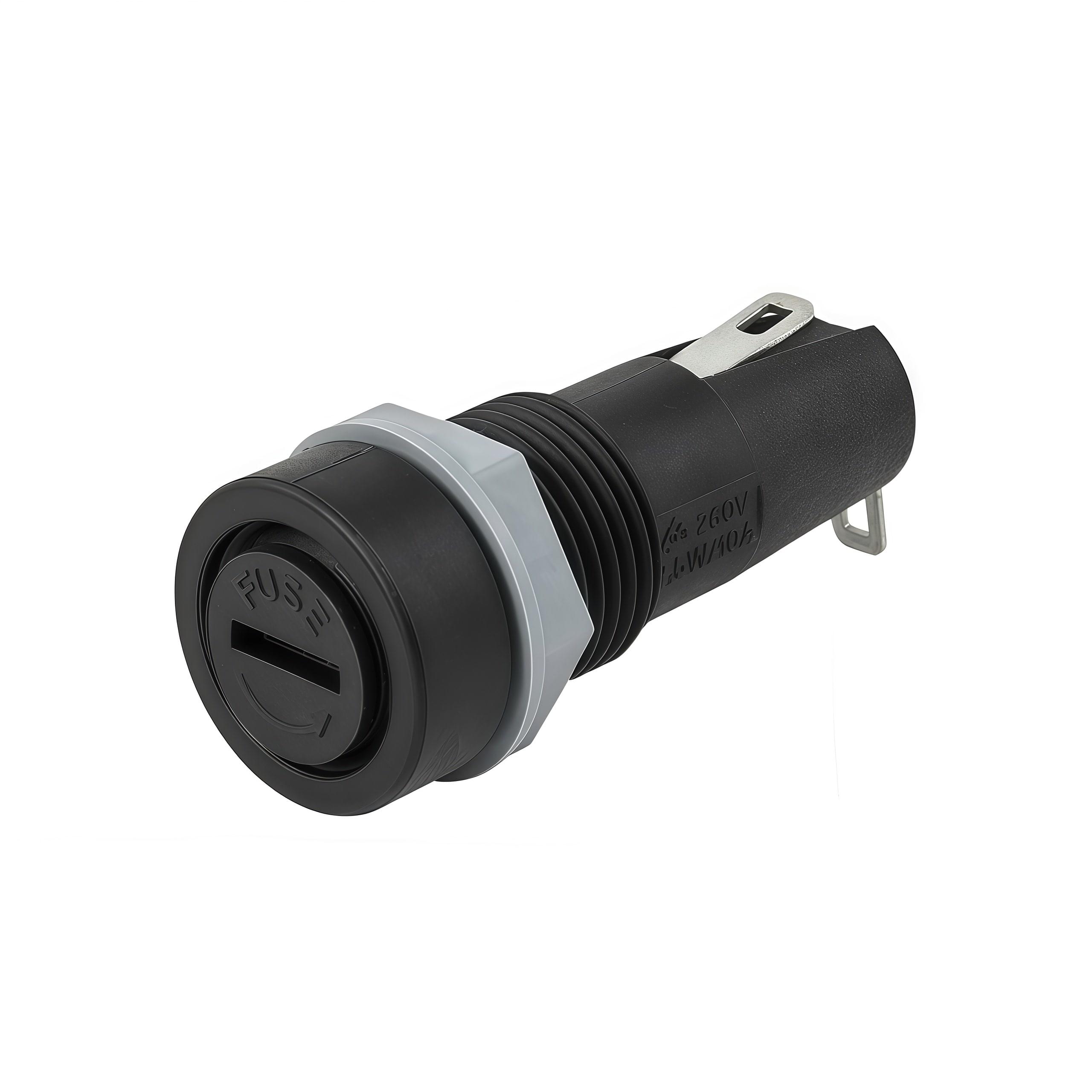

PTF/35 Panel Fuse Holder, 10A 250V 5×20 Board Mount Fuse Holders
1. Introduction
PTF/35 panel fuse holders are professional 5x20mm fuse mounting components designed for panel and PCB installation. Rated at 10A 250V AC, they provide safe and reliable
2. What Is PTF/35 Panel Fuse Holder?
PTF/35 is a widely used panel and board mount fuse holder for 5x20mm cartridge fuses. It combines compact structure, secure mounting and excellent electrical performance.
- Fuse compatibility: 5x20mm glass / ceramic fuses
- Rating: 10A, 250V AC
- Mounting: Panel / PCB board mount
- Protection: IP40 dust protection
- Flammability: UL94V-0 flame retardant
- Body material: High-strength thermoplastic
- Mounting hole: Ø12.7mm standard size
3. Key Features & Advantages
Stable Electrical Performance
- Nickel-tin plated copper alloy contacts
- Low contact resistance (<5mΩ)
- Stable under high temperature (-30°C to 85°C)
Safe & Durable Design
- Bayonet lock cap for tool-free replacement
- IP40 protection prevents dust intrusion
- UL94V-0 flame retardant housing
- RoHS compliant, lead-free material
Easy Installation
- Fits 0.8–6.5mm panel thickness
- Standard 12.7mm mounting hole
- Secure nut fastening
- Solder terminals for PCB connection
4. Technical Specifications
- Model: PTF/35
- Fuse size: 5x20mm (5.2x20mm)
- Rated current: 10A
- Rated voltage: 250V AC
- Body material: UL94V-0 thermoplastic
- Mounting type: Panel / board mount
- Protection class: IP40
- Operating temp: -30°C ~ +85°C
- Certifications: UL, TuV,CE,CQC, RoHS
5. Applications
PTF/35 fuse holders are widely used in:
- Power supplies & adapters
- Industrial control equipment
- Home appliances
- Automotive electronics
- Medical devices
- Lighting drivers
- Communication equipment
- Test & measurement instruments
6. Installation Guide
- Drill a Ø12.7mm hole in the panel or PCB
- Insert PTF/35 fuse holder through the hole
- Tighten the mounting nut securely
- Solder terminals to circuit board
- Insert 5x20mm fuse into the holder
- Lock the bayonet cap firmly
7. Why Choose PTF/35 Fuse Holders?
- Universal compatibility with 5x20mm fuses
- High safety standards (UL94V-0, IP40)
- Long service life and stable performance
- Easy replacement and maintenance
- Cost-effective industrial-grade quality
- Global certifications for worldwide use
8. Conclusion
PTF/35 10A 250V panel and board mount fuse holders are essential components for reliable circuit protection. Their robust design, safety features and wide compatibility make them the top choice for professional electronics manufacturing. Selecting high-quality PTF/35 fuse holders ensures equipment safety and long-term stability.
Product Name: PTF35 Panel Fuse Holder ,10A250V 5×20 board mount fuse holder
