Description

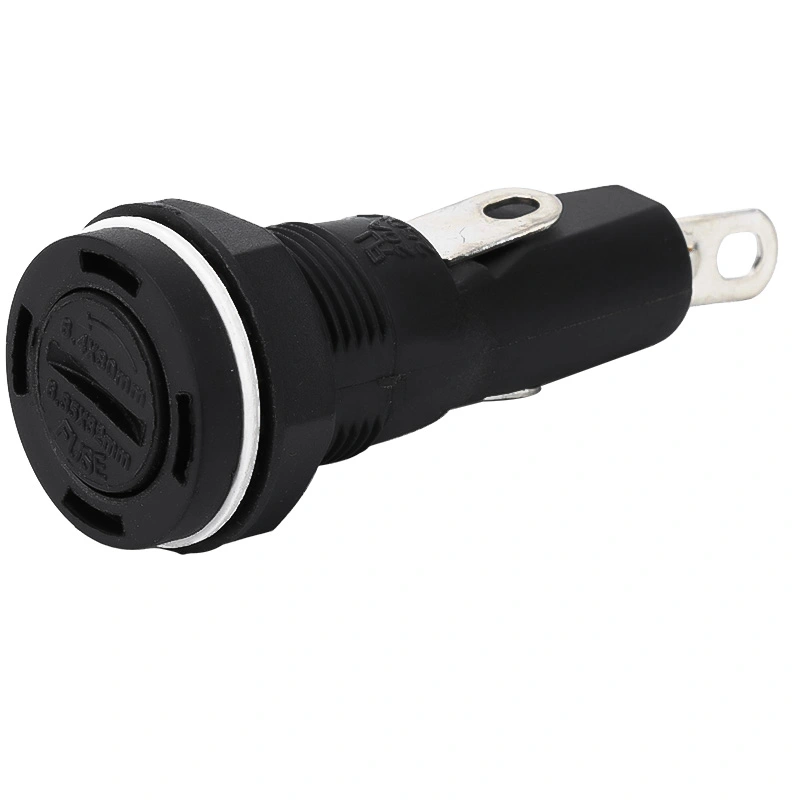

- Product Image:
- Product model: R3/55B Panel-Mount Fuse Holders
- Product applicable: 6X30 fuse (20A 250V)
- Material: Plastic: PBT
- Hardware: H65
- Compliance: ROHS, REACH
Overview
The R3/55B panel-mount fuse holder is a standard panel installation base designed for 6x30mm and 6x32mm glass tube and ceramic tube fuses. It is widely adopted in industrial control equipment, power supplies, household electrical appliances, instrumentation and automation systems, providing reliable overcurrent and short-circuit circuit protection.
Key Technical Specifications
- Model: R3/55B
- Mounting Type: Panel mount
- Compatible Fuse Size: 6×30mm, 6×32mm
- Rated Current: Max 20A
- Rated Voltage: 250V AC/DC
- Housing Material: High flame retardant engineering plastic
- Terminal Material: Brass nickel-plated, low contact resistance
- Flame Retardant Grade: UL94 V-0
- Operating Temperature: -40℃ ~ +125℃
- Feature: Easy snap-in installation, dustproof and arc suppression design
Product Features
- Perfect compatibility for standard 6x30mm and 6x32mm cartridge fuses
- Panel embedded installation, neat layout, save internal equipment space
- Nickel-plated brass conductive parts, anti-oxidation, stable current transmission
- High flame retardant and high temperature resistant shell, safe for long time working
- Simple structure, convenient fuse replacement and daily maintenance
- Meet IEC, UL and RoHS standards, suitable for global market matching
Application
Industrial power supply, inverter, charging equipment, household electrical appliances, instrumentation, automation control cabinet, medical equipment and other circuit protection occasions using 6x30mm / 6x32mm fuses.
Installation Instruction
Install R3/55B into the reserved panel hole, fix the buckle position, insert 6×30mm or 6×32mm standard fuse directly, ensure firm contact, avoid virtual connection and heat generation.
