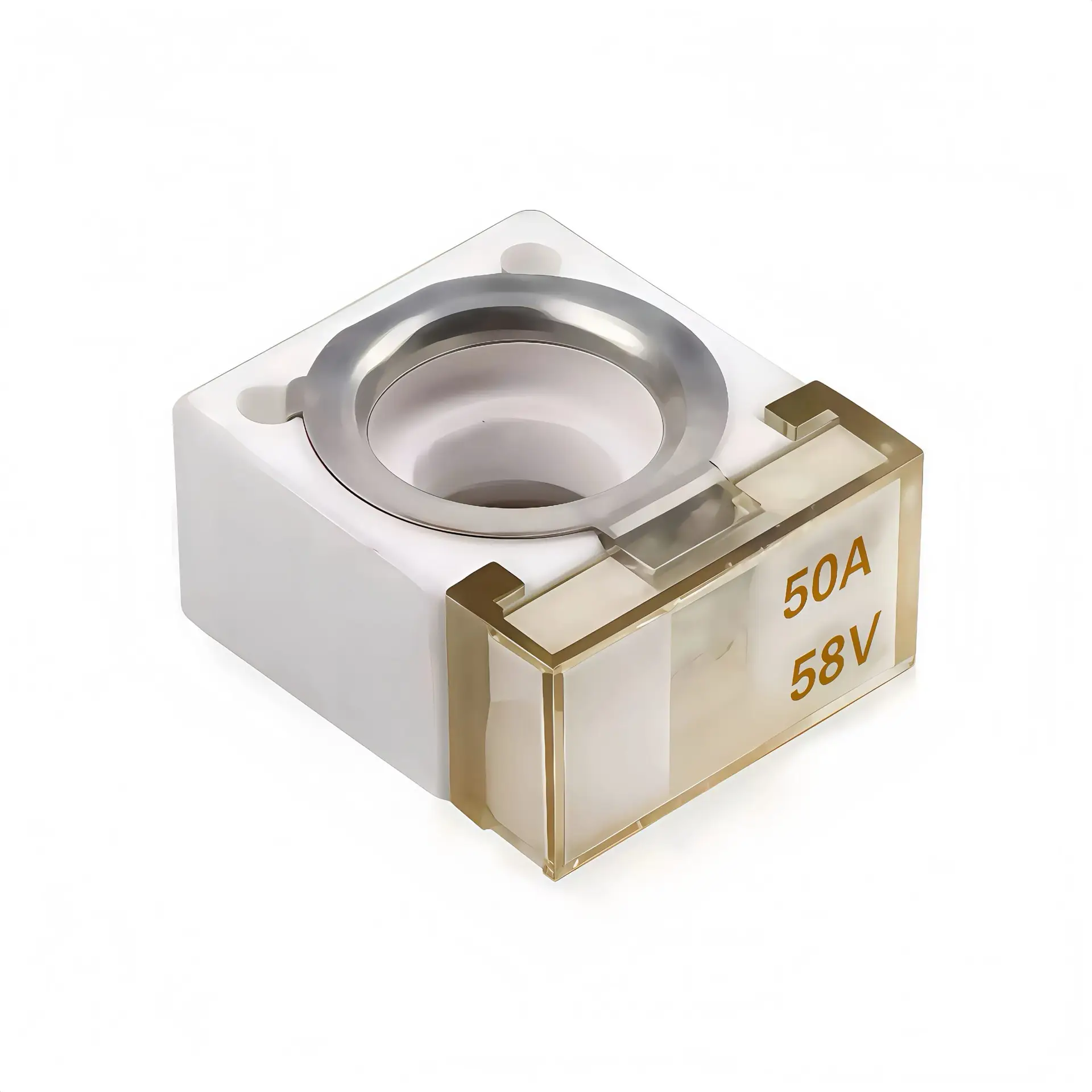

Energy Storage Fuse Design & Usage Guide: DC Protection for Battery Energy Storage Systems

Battery Energy Storage Systems (BESS / ESS) are rapidly deployed in containerized energy storage, commercial & industrial storage, and residential storage projects. DC-side safety remains one of the top priorities for system designers, EPC contractors and asset owners.
The energy storage fuse acts as the final passive physical protection barrier for lithium battery clusters. However, many engineers copy PV fuse selection logic or only check the nominal current rating. Improper fuse selection leads to nuisance tripping, failure to clear DC faults, thermal runaway and even energy storage cabin fires.
Photovoltaic arrays are current-limiting power sources, while lithium battery packs are low-internal-resistance, high short-circuit-energy sources. In a fault event, a battery cluster can release tens of kA of DC short-circuit current. Without a natural current zero point, DC arc extinction is far more difficult than AC interruption. This unique characteristic requires dedicated design, selection, installation and maintenance rules for energy storage fuses.
This energy storage fuse design and usage guide covers typical fuse locations, core electrical parameters, step-by-step selection workflow, installation best practices, common pitfalls and protection coordination rules for BESS DC protection.
Typical Fuse Placement in a Battery Energy Storage System
Energy storage fuses cannot be standardized with one single model for all positions. Fault energy and continuous operating current vary greatly at different nodes. Each protection point needs a fuse matched to its fault profile.
Module / String Level Fuse Protection
Fuses at the battery module output isolate a faulty battery string and stop fault propagation into the whole cluster. These fuses cover lower current ratings and need to handle both overload and short-circuit events. They normally work together with BMS alarm logic.
Battery Cluster / Rack Output Fuse (Highest Risk Point)
This is the most critical protection unit inside containerized ESS. Voltage ratings commonly cover 750VDC to 1500VDC, with current ranges from 200A to 800A. Expected short-circuit current can reach 20kA to 100kA at this location. Engineers should select bolt-mounted square-type energy storage fuses with gBat, gR or aR utilization categories. Models with micro-switch indication are preferred to send fuse status signals to BMS and SCADA platforms for remote fault identification.
DC Combiner Busbar Protection
After multiple battery clusters are paralleled, the combiner bus carries superimposed short-circuit energy from all connected clusters. Designers must calculate the prospective short-circuit current at this bus location instead of simply summing up nominal currents.
PCS DC Input Protection
Fuses on the DC side of power conversion systems protect IGBTs and DC-link capacitors. High-speed gR or aR semiconductor fuses are widely used here. The I²t let-through energy must be checked carefully to avoid semiconductor damage before the fuse clears the fault.
Core design principle: Place fuses as close to the fault source as possible. When a fault occurs, only the smallest faulty unit is isolated, and the rest of the energy storage station can keep running, avoiding full-station shutdown caused by a single point of failure.
Key Design Parameters for Energy Storage DC Fuses
Most engineers only check voltage and current ratings. In BESS applications, breaking capacity, utilization category, I²t let-through energy and L/R time constant determine whether the protection works safely.
Rated DC Voltage (Vdc)
Rule: The fuse rated DC voltage must be equal to or higher than the maximum operating voltage of the circuit, not the nominal system voltage. For a 1500V energy storage system, the fully charged battery voltage is noticeably higher than the rated value. Always select 1500VDC rated fuses for such platforms.
⚠️ Critical Warning: AC fuse voltage ratings cannot be converted for DC usage. AC arcs are extinguished at current zero crossings. DC arcs persist without zero crossing. Using AC fuses in DC storage circuits may result in sustained arcs, fuse holder burnout and fire accidents.
Rated Continuous Current (In)
Lithium batteries undergo frequent charge and discharge cycles with fluctuating current and inrush pulses. Selecting fuses only by nominal loop current will cause frequent nuisance blowing.
Standard engineering practice: Choose a fuse rated current of 1.25 ~ 1.6 times the maximum continuous charge-discharge current. Additional derating factors must be applied for ambient temperature, poor ventilation and parallel mounting.
Parallel note: When multiple fuses are paralleled for higher current, consistent internal resistance and balanced wiring impedance are mandatory. The total current capacity is not a simple multiplication factor. Do not parallel more than 4 fuses in one circuit.
Rated Breaking Capacity
Breaking capacity defines the maximum prospective short-circuit current that the fuse can safely interrupt. This value must be higher than the calculated short-circuit current at the installation node. In large container ESS, cluster short-circuit current often ranges from 30kA to 80kA. Insufficient breaking capacity leads to fuse body rupture and arc ejection during faults.
Important note: The DC breaking capacity listed on datasheets is tested under a defined L/R time constant. BESS DC cables and copper bars create larger inductance and longer L/R than PV circuits. The real breaking performance will degrade if site L/R exceeds the test condition. Always verify the manufacturer’s test conditions.
I²t Let-Through Energy
I²t represents the thermal energy passed through the circuit from fault initiation to full arc extinction. Lithium cells, copper busbars and PCS power semiconductors all have maximum withstand I²t limits. The total let-through I²t of the fuse must be lower than the withstand I²t of the protected component. Even if the fuse blows successfully, excessive I²t can already damage the battery or power electronics, making protection ineffective.
Utilization Category per IEC 60269
Common categories for energy storage:
gBat: Dedicated full-range protection for battery energy storage, covering overload and short-circuit; preferred for battery rack and cluster protection.
gR: Full-range semiconductor protection fuses for overload and short-circuit events.
aR: Partial-range high-speed fuses optimized for short-circuit only. Response is slow for low-magnitude overloads. Not suitable as standalone main protection for battery clusters; suitable for PCS semiconductor-side protection.
❌ Common Misuse: Using gPV PV fuses for battery cluster protection. gPV fuses are optimized for limited short-circuit current from PV modules. They cannot reliably interrupt the high-energy short-circuit current released by lithium batteries.
Temperature Rise & Fuse Indication Micro-Switch
High-current bolted fuses generate continuous heat under rated load. Check terminal temperature rise data to ensure connection temperature stays within limits (normally ≤105°C) to avoid accelerated aging and loose contacts. Utility-scale energy storage plants should select fuses with micro-switch trip indication. The dry contact signal can be integrated into BMS and SCADA for remote fault location, reducing dangerous manual inspection work.
Step-by-Step Energy Storage Fuse Selection Workflow
Follow this engineering sequence instead of picking fuse models directly from catalogs:
Confirm the fuse installation location: module level, battery rack/cluster, DC busbar or PCS DC input.
Collect system boundary data: maximum DC voltage and maximum continuous charge-discharge current.
Calculate prospective short-circuit current and circuit L/R time constant, based on cell internal resistance, cable and busbar impedance.
Select fuse rated DC voltage ≥ maximum circuit voltage.
Calculate base rated current and apply temperature, thermal and parallel derating factors.
Verify rated breaking capacity > prospective short-circuit current and match manufacturer L/R test conditions.
Select the correct utilization category: gBat for battery clusters, aR for PCS semiconductor protection.
Validate that fuse let-through I²t is lower than the I²t withstand rating of batteries, busbars and PCS devices.
Check mechanical interface, bolt terminal compatibility and whether trip indication is required.
Complete protection coordination check between fuse, BMS, contactors and DC breakers to avoid unwanted tripping or over-tripping.
Installation, Commissioning & Maintenance Guidelines
Even a correctly selected energy storage fuse can lose protection capability due to poor installation. Many field failures originate from assembly errors.
Bolt Torque Control
Bolt-type high-current fuses require a torque wrench. Too low torque increases contact resistance and creates overheating, leading to premature fuse blowing and melted holders. Excessive torque may crack the ceramic body under vibration. Never fasten bolts by hand feeling.
Thermal & Ventilation Design
Avoid stacking cables around fuses. Maintain proper airflow inside the cabinet. Apply extra derating when fuses operate in high-temperature compartments. Square bolted fuses mounted directly on copper busbars benefit from the busbar as a heat sink, which outperforms cylindrical cartridge fuses for high-current applications.
Parallel Assembly Rules
For parallel fuses, keep cable length and impedance identical. Maintain 10–30mm spacing between units to reduce thermal coupling and balance current sharing.
Replacement & Spare Management
Before replacing a blown fuse, isolate the upstream circuit and confirm zero voltage. Always replace with the exact same part number and rating. Never substitute with a higher-ampere fuse, as this will disable protection. Maintain a spare parts log and avoid cross-brand random replacement.
Common Mistakes in Energy Storage Fuse Projects
Using AC-rated fuses on DC BESS circuits
Directly applying gPV PV fuses for lithium battery cluster protection
Only checking nominal system voltage and ignoring maximum charged voltage
Selecting based only on ampere rating without checking breaking capacity, I²t and L/R
Using aR fuses as the primary standalone protection for battery racks
Paralleling fuses and calculating total capacity by simple multiplication
Skipping torque control during installation
Missing protection coordination between fuse, BMS and contactors
Upgrading to higher current fuses during site retrofits without redoing protection calculation
Technology Trends of Energy Storage Fuses
As the industry widely adopts 1500VDC BESS and develops 2000VDC platforms, energy storage fuses keep evolving:
Higher voltage ratings with compact footprint to fit dense containerized storage cabinets
Digital fuse status monitoring beyond traditional mechanical micro-switches
Optimized low I²t design to reduce thermal stress on lithium cells and suppress thermal runaway
Updated IEC and national standards with dedicated BESS test profiles, separating storage fuse specifications from PV and general DC fuses
Conclusion
The energy storage fuse is a simple passive component, yet it forms the last physical protection line for lithium battery systems. Energy storage fuse design and selection is not a simple lookup of ampere ratings — it is a full system-level calculation task. Designers must analyze fault scenarios first, calculate short-circuit energy before choosing voltage and current ratings, and include installation procedure and replacement rules into the overall safety design. Only in this way can fuses reliably mitigate DC fault risks for battery energy storage stations.
Disclaimer: This energy storage fuse design and usage guide serves as technical reference. Final selection must be validated with cell datasheets, PCS vendor specifications and third-party short-circuit simulation reports for each project.
