GF‑717N Mini Low‑Profile Blade Fuse Holder
Overview
GF‑717N Mini Low‑Profile Blade Fuse Holder is a PCB‑mount fuse clip designed exclusively for low‑profile mini blade fuses. Hardware parts adopt 0.30 mm‑thick brass with tin‑plated finish. The base is made of glass fiber reinforced PBT with UL94‑V0 flame retardant rating. All burrs and sharp edges are eliminated during manufacturing. It delivers stable electrical performance: 30A@250VAC rating, minimum 1 kg insertion‑withdrawal force, AC500V minimum dielectric strength, max 50 mΩ contact resistance, 100 MΩ insulation resistance @ DC500V, and wide operating temperature‑40℃ ~ +115℃. Widely used in automotive electronics and compact PCB low‑voltage circuit protection.

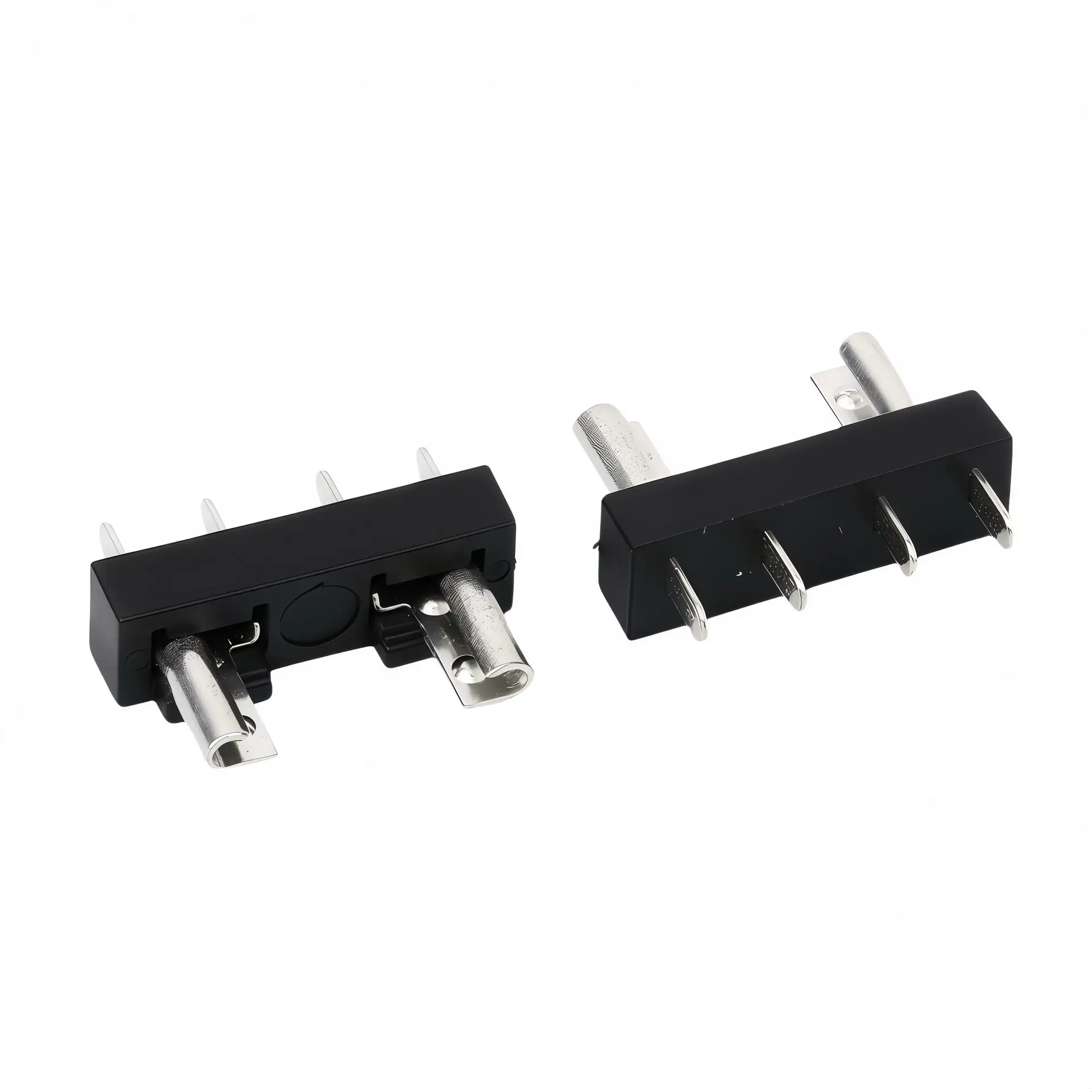

GF-717N-mini-Low-Profile-Blade-Fuse-holder
Product Specifications
| Item | Value |
| Product Model | GF‑717N Mini Low‑Profile Blade Fuse Holder |
| Applicable Fuse | Low‑profile mini blade fuses |
| Hardware Material | Brass, thickness T=0.30 mm |
| Base Material | Glass fiber reinforced PBT, UL94‑V0 grade |
| Terminal Finish | Tin plating |
| Rated Current & Voltage | 30A @ 250VAC |
| Insertion / Withdrawal Force | 1kg minimum |
| Dielectric Strength | AC500V minimum |
| Contact Resistance | 50mΩ maximum |
| Operating Temperature Range | -40°C ~ +115°C |
| Insulation Resistance (DC 500V) | 100MΩ |
| Processing Requirement | Remove burrs and sharp edges |
Key Features
- Low‑profile compact PCB‑mount structure, specially made for low‑profile mini blade fuses, save PCB layout space
- Glass‑fiber‑reinforced PBT base, UL94‑V0 flame retardant, high mechanical strength and heat‑resistant property
- 0.30 mm brass hardware with tin‑plated surface, low contact resistance, anti‑oxidation for stable connection
- Strict workmanship: all burrs and sharp edges removed for safe assembly
- Reliable electrical indexes: 30A@250VAC, min 1kg insertion‑withdrawal force, AC500V dielectric strength, 100MΩ insulation resistance
- Wide temperature‑40℃~+115℃, fit automotive, outdoor and harsh‑environment PCB equipment
Applications
GF‑717N low‑profile mini blade fuse holder is widely used for printed‑circuit‑board over‑current protection:
- Automotive ECU, car instrument and interior electronic control PCB
- New energy vehicle auxiliary control modules
- Smart household appliances, compact power supply board
- Industrial control board, DC‑DC power conversion module
- Other compact electronic devices adopting low‑profile mini blade fuses
अक्सर पूछे जाने वाले प्रश्न
Q1: What fuse fits GF‑717N low‑profile blade fuse holder?
A1: It is designed for low‑profile mini blade fuses for PCB through‑hole soldering.
Q2: What are material details for GF‑717N?
A2: Hardware: 0.30 mm brass with tin‑plating; Base: glass fiber reinforced PBT UL94‑V0.
Q3: What are main electrical parameters?
A3: Rated 30A@250VAC; Min insertion‑withdrawal force:1kg; Min dielectric strength AC500V; Max contact resistance 50mΩ; Insulation resistance 100MΩ@DC500V.
Q4: What is operating temperature range?
A4: Operating temperature ranges from‑40°C to +115°C.
