Description

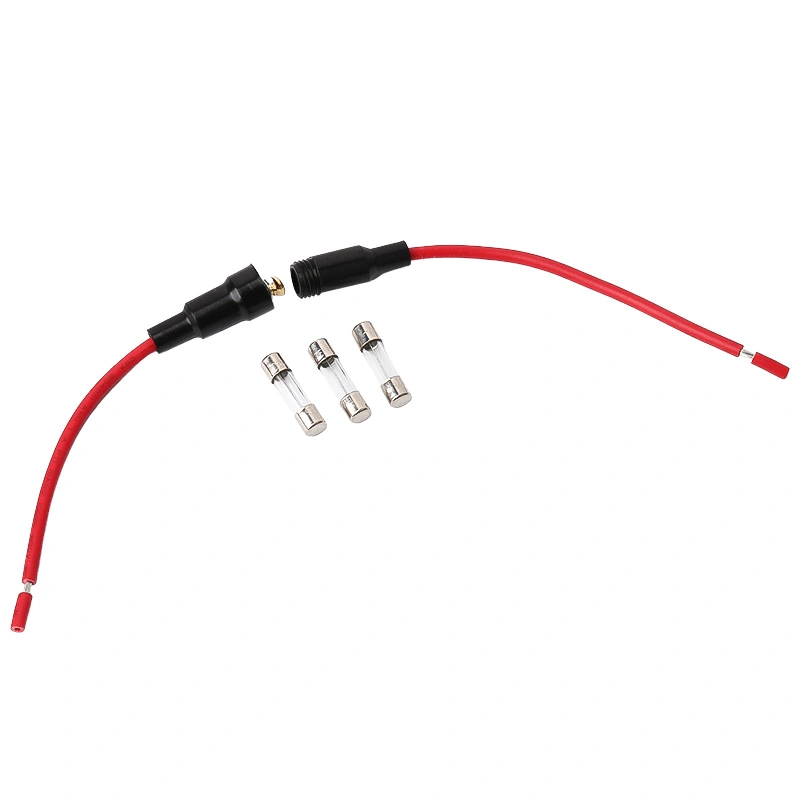

5X20 FUSE HOLDER GF/520P In line fuse holder
Description
1. Product model GF/520P wiring harness fuse holder (fuse box)
2. Practical 5×20 fuse (10A250V)
3. The length and thickness of the wiring harness can be customized according to customer needs
4. The product complies with ROHS REACH
Chinese panel fuse holder manufacturers provide panel fuse holders and PCB installation fuse holders In line fuse holder
5X20 Inline Fuse Holder GF/520P – Specifications & Applications
The 5X20 Inline Fuse Holder GF/520P is a widely used in line fuse holder designed for 5x20mm glass or ceramic fuses. It provides reliable overcurrent and short-circuit protection for electronic and electrical devices, with easy installation and stable performance.
1. Features of GF/520P 5X20 Inline Fuse Holder
- Designed specifically for 5x20mm fuses
- In-line series installation, no extra housing needed
- Flame-retardant and high-temperature resistant housing
- High-conductivity copper internal contacts
- Pre-wired design for direct soldering or connection
- Compact size, widely compatible with many devices
2. Key Specifications
- Fuse type: 5×20mm fast-acting / slow-blow fuses
- Rated voltage: 125V / 250V
- Rated current: 1A–15A (depends on fuse used)
- Material: Flame retardant PBT + copper conductor
- Mounting: In line, wire-in type
- Function: Overcurrent protection, short circuit protection
3. Applications
The GF/520P 5X20 fuse holder is widely used in:
- Power adapters, chargers, switching power supplies
- Home appliances: AC, TV, refrigerator, small appliances
- LED drivers, lighting fixtures
- Automotive electronics, car audio, vehicle circuits
- Industrial controls, security equipment, communication power
Using the GF/520P inline fuse holder effectively protects equipment from damage caused by overload or short circuit, improving product safety and stability.
4. Why Choose GF/520P 5X20 Fuse Holder?
- Universal compatibility with standard 5×20mm fuses
- Simple in-line installation
- Safe and flame-retardant structure
- Cost-effective for mass production
- Factory direct supply with stock and customization support
5. Selection & Usage Tips
- Choose fuses matching your device voltage and current
- Ensure secure wiring to avoid overheating
- Replace only with the same rating after fuse blows
- For outdoor or damp environments, use waterproof versions
If you need stock, samples, specifications, or wholesale pricing for the 5X20 Inline Fuse Holder GF/520P, feel free to contact us for full details.
