1. Introduction
ANL/B200BSF56 auto bolt-down fuses and standard automotive blade fuses are core overcurrent protection components widely used in modern vehicle electrical systems.
As a professional heavy-duty fuse model, ANL/B200BSF56 provides stable and reliable protection for main power circuits, batteries, alternators and high-current equipment.
Blade fuses are widely used for small and medium current circuits such as lighting, electronics and control systems.
2. What Are ANL/B200BSF56 Bolt-Down Fuses?
ANL/B200BSF56 is a high-performance bolt-down fuse designed for automotive, truck, marine and industrial applications.
It features a bolt-fixed structure, strong vibration resistance, high conductivity and stable fusing characteristics.
- High current carrying capacity
- Excellent anti-vibration performance
- Stable under high temperature
- Safe and reliable circuit interruption
- Compatible with standard bolt-down fuse holders
3. Automotive Blade Fuses Overview
Automotive blade fuses are the most common plug-in type fuses for vehicles.
They are small, easy to install and color-coded for quick identification.
- Car lighting systems
- Dashboard and electronic control
- Air conditioning and power windows
- Audio and auxiliary equipment
- Small power circuits
4. Core Specifications

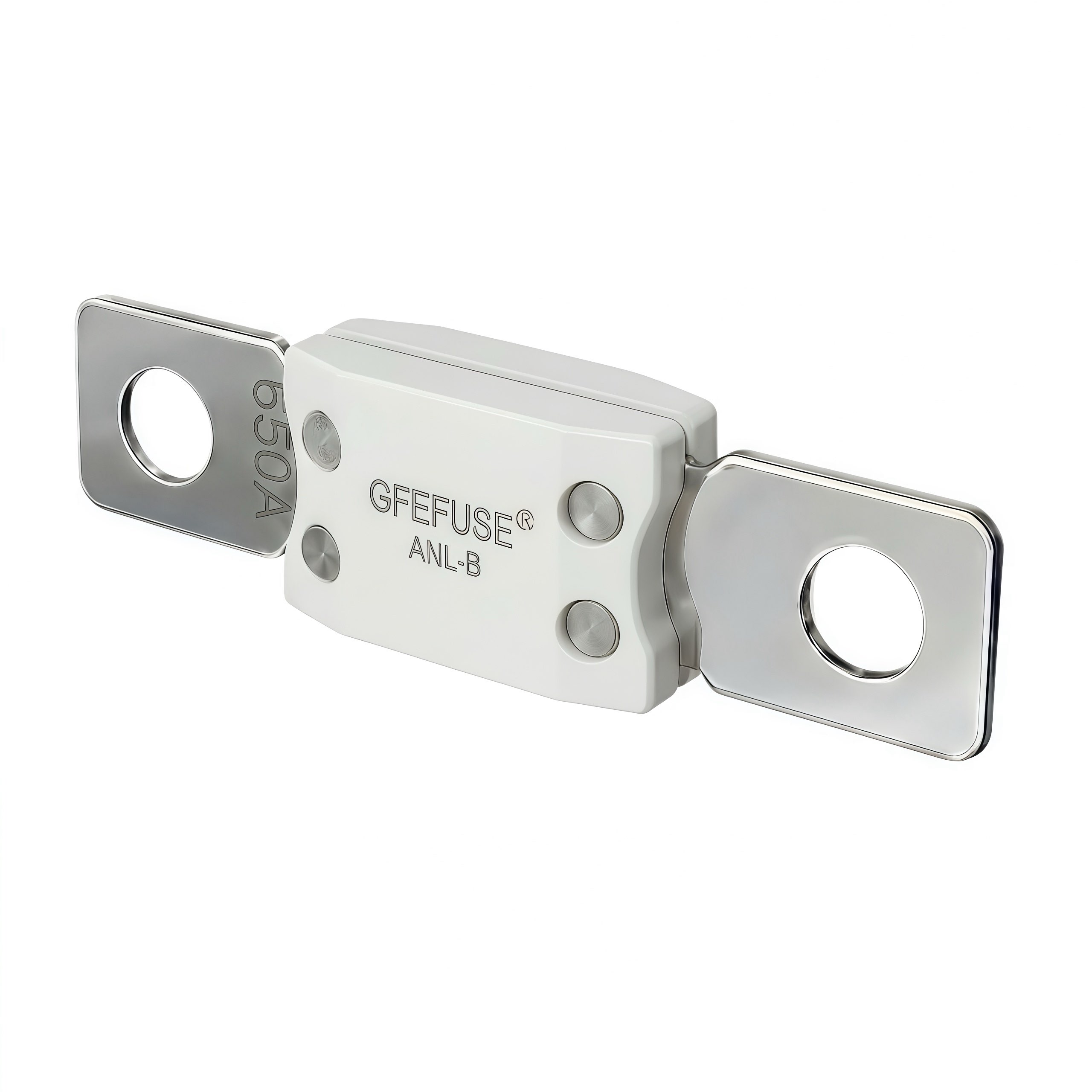

ANL/B200BSF56 Bolt-Down Fuse
- Model: ANL/B200BSF56
- Type: Bolt-down fuse
- Application: Automotive, truck, EV, marine
- Structure: Bolt fixed, high conductivity
- Features: Heavy‑duty, shockproof, durable
Automotive Blade Fuse
- Type: Plug-in blade fuse
- Voltage: 32V DC
- Application: General vehicle circuits
- Features: Compact, convenient replacement
- Standard: Universal automotive size
5. Applications
ANL/B200BSF56 Bolt-Down Fuse
- Main battery circuit protection
- Alternator and generator circuits
- Truck and commercial vehicle power systems
- EV and energy storage systems
- Marine and heavy machinery
Automotive Blade Fuse
- Passenger car internal circuits
- Electronics and control modules
- Lighting and air conditioning
- Automotive aftermarket and maintenance
6. Why Choose ANL/B200BSF56 & Automotive Blade Fuses?
- Stable performance and high safety
- Wide compatibility with vehicles
- Long service life
- Easy installation and maintenance
- Meet international automotive standards
- Ideal for OEM and aftermarket use
7. Conclusion
ANL/B200BSF56 bolt-down fuses and automotive blade fuses form a complete circuit protection system for vehicles.
They are essential components for safe and stable operation of automobile electrical systems.
Choosing high-quality fuses effectively reduces failure risk and improves vehicle safety.
1. Dimensions (mm)
2. Specifications
Current: 60A-700A
Shell: Ceramic high temperature resistant
Terminal: Copper alloy, gal. Sn 2 x M8 bolts, Distance 56 mm
Mounting Torque: 20 Nm +/- 1Nm
Breaking Capacity: 6000A @ 125VDC
Voltage Rating: 125VDC – 250VDC
Complies with: ISO 20934-2019
Operating Temperature Range: -40˚C to +125˚C (The maximum allowable temperature is 150˚C at the contact point)
3. Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) | |
|---|---|---|
| 60A – 250A | 300A – 700A | |
| 75 | – / – | 14400s |
| 100 | 14400s | – / – |
| 135 | 120s / 1800s | – / – |
| 150 | 20s / 450s | – / – |
| 200 | 1s / 15s | 1s / 15s |
| 350 | 0.3s / 5s | 0.5s / 5s |
| 600 | 0.1s / 1s | 0.1s / 1s |
1: Not mentioned in ISO standards
2: Short circuit protector only
3: Maximum pressure drop range according to ISO standards
4. Ratings
| TYPE | Rating Current (A) | Typ Voltage drop |
|---|---|---|
| ANL-B200B060 | 60A | ≤110mV |
| ANL-B200B070 | 70A | ≤110mV |
| ANL-B200B080 | 80A | ≤110mV |
| ANL-B200B100 | 100A | ≤110mV |
| ANL-B200B125 | 125A | ≤110mV |
| ANL-B200B150 | 150A | ≤110mV |
| ANL-B200B175 | 175A | ≤110mV |
| ANL-B200B200 | 200A | ≤110mV |
| ANL-B200B225 | 225A | ≤110mV |
| ANL-B200B250 | 250A | ≤110mV |
| ANL-B200B275 | 275A | ≤110mV |
| ANL-B200B300 | 300A | ≤80mV |
| ANL-B200B350 | 350A | ≤80mV |
| ANL-B200B400 | 400A | ≤80mV |
| ANL-B200B450 | 450A | ≤80mV |
| ANL-B200B500 | 500A | ≤80mV |
| ANL-B200B550 | 550A | ≤80mV |
| ANL-B200B600 | 600A | ≤80mV |
| ANL-B200B650 | 650A | ≤80mV |
| ANL-B200B700 | 700A | ≤80mV |
