Description

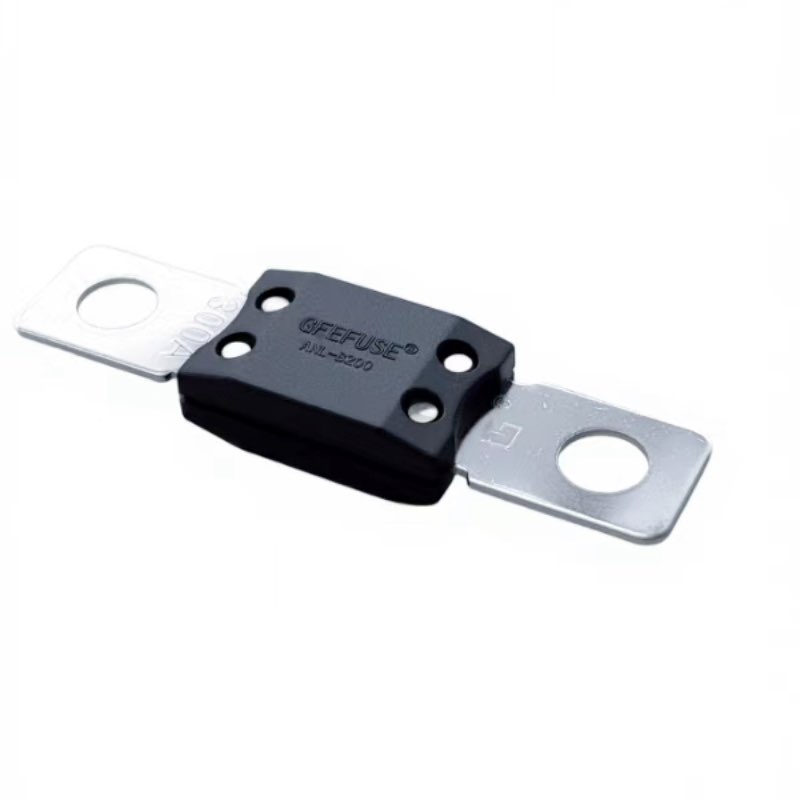

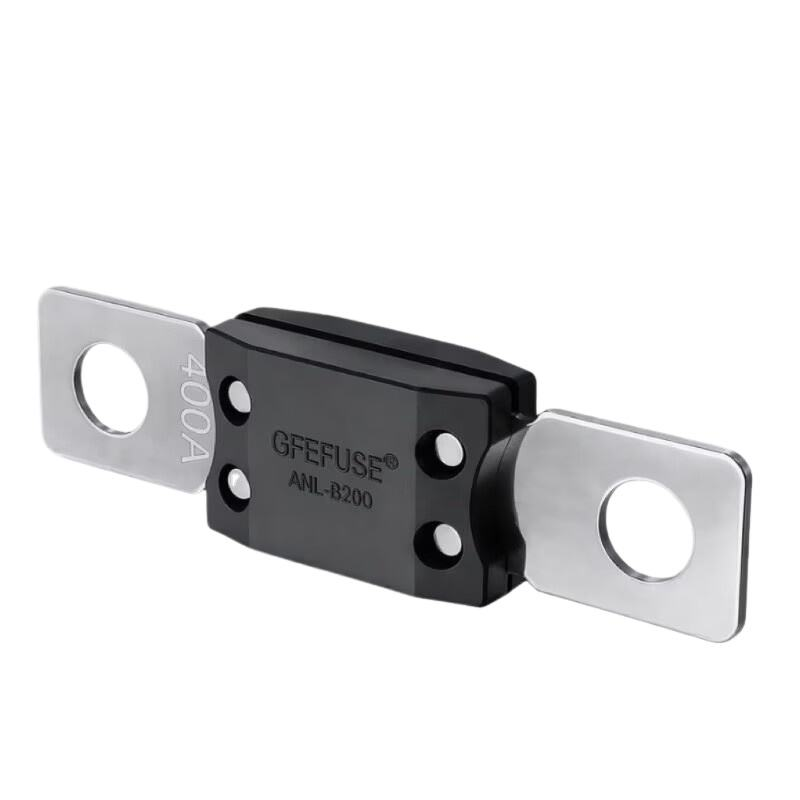

High Current Bolt Down Fuse ANL/B200SF56 DC Automotive Fuse
1. Dimensions (mm)
2. Specifications
Current: 60A-700A
Housing: Out of thermoplastic (UL 94-V0, heat-resistant)
Terminal: Copper alloy, gal. Sn 2 x M8 bolts, Distance 56 mm
Mounting Torque: 20 Nm +/- 1Nm
Breaking Capacity: 6000A @ 125VDC
Voltage Rating: 125VDC-250VDC
Complies with: ISO 20934-2019
Operating Temperature Range: -40˚C to +125˚C (The maximum allowable temperature is 150˚C at the contact point)
3. Time-Current Characteristics
| % of Rating | Opening Time Min / Max (s) 60A – 250A |
Opening Time Min / Max (s) 300A – 700A |
|---|---|---|
| 75 | – / – | 14400s |
| 100 | 14400s | – / – |
| 135 | 120s / 1800s | – / – |
| 150 | 20s / 450s | – / – |
| 200 | 1s / 15s | 1s / 15s |
| 350 | 0.3s / 5s | 0.5s / 5s |
| 600 | 0.1s / 1s | 0.1s / 1s |
1: Not mentioned in ISO standards
2: Short circuit protector only
3: Maximum pressure drop range according to ISO standards
4. Ratings
| TYPE | Rating Current (A) | Typ Voltage drop |
|---|---|---|
| ANL-B200060 | 60A | ≤110mV |
| ANL-B200070 | 70A | ≤110mV |
| ANL-B200080 | 80A | ≤110mV |
| ANL-B200100 | 100A | ≤110mV |
| ANL-B200125 | 125A | ≤110mV |
| ANL-B200150 | 150A | ≤110mV |
| ANL-B200175 | 175A | ≤110mV |
| ANL-B200200 | 200A | ≤110mV |
| ANL-B200225 | 225A | ≤110mV |
| ANL-B200250 | 250A | ≤110mV |
| ANL-B200275 | 275A | ≤110mV |
| ANL-B200300 | 300A | ≤80mV |
| ANL-B200350 | 350A | ≤80mV |
| ANL-B200400 | 400A | ≤80mV |
| ANL-B200450 | 450A | ≤80mV |
| ANL-B200500 | 500A | ≤80mV |
| ANL-B200550 | 550A | ≤80mV |
| ANL-B200600 | 600A | ≤80mV |
| ANL-B200650 | 650A | ≤80mV |
| ANL-B200700 | 700A | ≤80mV |
ANL/B200SF56 High Current Bolt Down DC Automotive Fuse – EssFuse
The ANL/B200SF56 is a high-current bolt-down DC fuse designed by EssFuse for heavy-duty automotive, EV, battery, truck, and industrial DC power systems. It provides reliable short-circuit and overload protection for high-current circuits up to 700A and 250V DC, making it a top choice for 12V, 24V, 48V, 125V, 150V, 200V, and 250V DC applications.
Key Specifications
- Model: ANL/B200SF56
- Current Rating: 60A–700A (60, 80, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 600, 700A)
- Voltage Rating: 125V DC / 150V DC / 200V DC / 250V DC
- Breaking Capacity: 6,000A @ 125V DC (high interrupting rating for severe short circuits)
- Mounting: Bolt-down (2 × M8 bolts, 56mm hole distance)
- Torque: 20Nm ±1Nm
- Housing: UL94-V0 thermoplastic, heat-resistant, flame retardant
- Terminals: Copper alloy, tin-plated, low contact resistance, high conductivity
- Operating Temperature: -40°C to +125°C (max contact temp 150°C)
- Standard Compliance: ISO 20934-2019
Construction & Working Principle
The ANL/B200SF56 features a robust bolt-down structure that ensures stable electrical connection even under vibration, shock, or high-temperature conditions—critical for automotive and industrial environments. Unlike plug-in fuses, bolt-down design eliminates loose contact risks in high-current circuits.
Inside, a precision-engineered fuse element (silver-plated copper) melts under overload or short circuit, breaking the circuit instantly. The high-grade thermoplastic housing provides excellent arc extinguishing and insulation performance, ensuring safety during fault clearing.
Core Advantages
- Ultra-high current handling: up to 700A, ideal for heavy-duty DC systems
- High interrupting capacity: 6kA safely clears severe short circuits
- Vibration-resistant bolt mounting: no loose contact in trucks/EVs
- Wide voltage coverage: 125V–250V DC, fits most automotive battery systems
- Compact size: 56mm hole distance, easy installation in limited space
- Long lifespan: durable materials resist aging and thermal cycling
Typical Applications
- Electric Vehicles (EV/HEV): main battery protection, high-voltage DC circuits
- Trucks & Heavy Machinery: 24V/48V battery systems, starter circuits
- Solar & Energy Storage: battery bank protection, off-grid DC systems
- Industrial DC Power: UPS, inverters, heavy-duty DC equipment
- Marine & RV: 12V/24V high-current DC distribution
Why Choose EssFuse ANL/B200SF56?
As a professional DC high-current fuse manufacturer, EssFuse strictly follows ISO 20934 standards and conducts 100% testing for each unit. The ANL/B200SF56 combines high performance, reliability, and cost-effectiveness, making it a trusted choice for OEMs, system integrators, and repair shops worldwide.
