Description

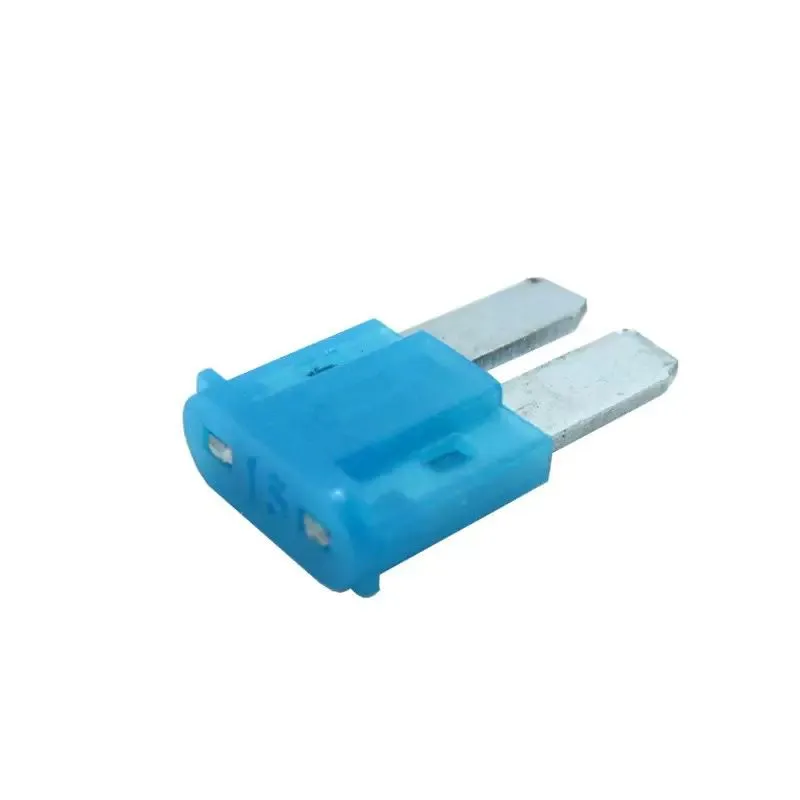

Micro2 Blade Fuse
1. Overview
Micro2 Car Fuse
Fast Acting For Rated Voltage Up To 32V DC
Rating: 5A to 30A
Metal: Zinc Alloy Tin Plated
Body: Nylon 66
Temperature Rating: -45°C ~ +125°C
Certification: ROHS
2. Technical Specifications
| Parameter |
Value |
| Voltage Rating |
32VDC |
| Interrupting Ratings |
1000A@32VDC |
| Metal Material |
Zinc Alloy with Tin Plated |
| Housing Material |
Nylon66 |
| Ambient Temp |
-45℃ ~ +125℃ |
3. Time-Current Characteristics
| % Of Ampere Rating |
Opening Time |
| 110% |
100 hours Min |
| 135% |
0.75 sec Min; 120 sec Max |
| 160% |
0.25 sec Min; 50 sec Max |
| 200% |
0.15 sec Min; 5 sec Max |
| 350% |
0.04 sec Min; 0.5 sec Max |
| 600% |
0.02 sec Min; 0.1 sec Max |
4. Part Numbers
| Part Number |
Amperage |
Body Color |
| 5 |
5A |
0000 |
| 7.5 |
7.5A |
0000 |
| 10 |
10A |
0000 |
| 15 |
15A |
0000 |
| 20 |
20A |
0000 |
| 25 |
25A |
0000 |
| 30 |
30A |
0000 |
