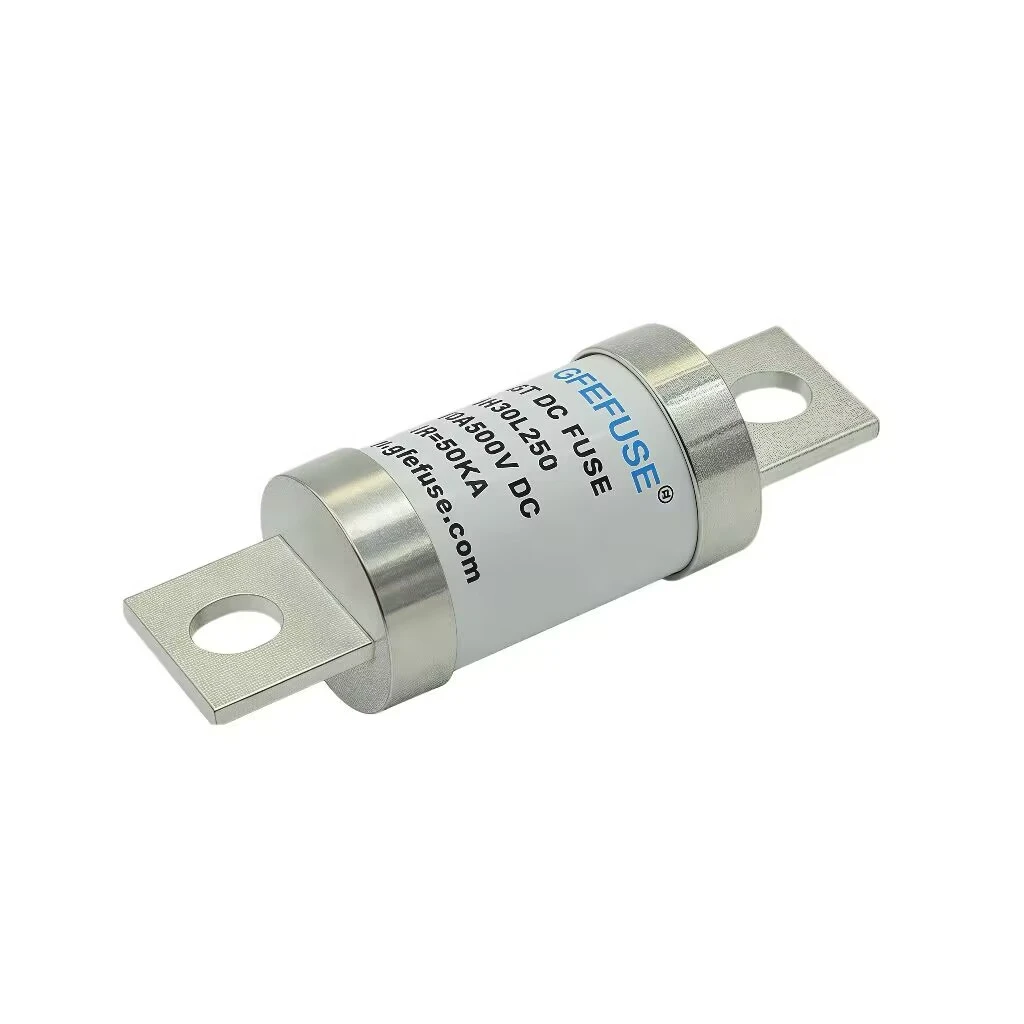

5H30L DC Fuse Link – 150A-300A 450V 500V EV High Speed Fuse
Introduction to 5H30L DC Fuse Link
With current coverage 150A to 300A and rated voltage 450V DC / 500V DC, it adopts fast-acting fusing characteristic, dedicated for EV high-power DC short-circuit protection.
Product Specifications
- Model: 5H30L
- Current Rating: 150A, 200A, 250A, 300A
- Rated Voltage: 450V DC, 500V DC
- Type: DC Fuse Link / EV Fast Fuse
- Feature: High speed, high breaking capacity
- Application: New energy vehicle, ESS, industrial DC system
- Certification: IEC & UL safety standards compliant
Core Advantages
- 150A-300A high current design, fit high-power EV DC loop
- Adapt 450V/500V mainstream new energy DC voltage platform
- Ultra-fast fusing speed, avoid DC component burnout
- Vibration & high temperature resistant, suitable vehicle working environment
- Standard fuse link size, easy replacement and installation
Main Applications
- New energy electric vehicle high current DC circuit
- Energy storage system BESS DC power distribution
- 450V/500V industrial DC power equipment
- EV charging pile high-power internal protection
- Heavy-duty new energy engineering vehicles
FAQ
A: 5H30L is EV dedicated DC fuse link, 150A-300A, used for 450V/500V new energy DC overcurrent and short circuit protection.
A: Yes, it is professionally developed as EV fuse, fully adapted to new energy vehicle high current DC system.
5H30L Series Fast EV Fuse
1. Purpose and use
This series of fuses are suitable for rated DC voltage up to 500V (450V), in the line with rated current up to 300A, the breaking capacity is 20kA, which is the comprehensive protection of on-board battery, on-board line system and inverter. At the same time, it has the characteristics of strong current limiting capacity, high breaking capacity, fast short-circuit breaking speed, and it can withstand temperature shock, mechanical vibration shock, current shock, chemical load, etc. This series of products conforms to ISO 8820 and JASO D622 and GB/T31465. Applicable standards for environmental reliability: GB/T31465.6, ISO 8820-8, JASO D622, UL248-20
2. Normal working conditions
Normal operating conditions of ambient air temperature: -5 ℃ ~ 40 ℃; allowable operating conditions: -40 ℃ ~ +125 ℃;
3. Use category
Full range fast fuse
4. Structural characteristics
The melting tube of the product is made of high-temperature resistant ceramic material, with high flame-retardant performance and strong hardness.
The melt is sealed in the melting tube with a variable cross-section melt made of 99.99% pure silver. The melting tube is filled with chemically treated high-purity quartz sand and specially treated chemical materials as arc extinguishing medium. The contact surface is silver plated to ensure reliable electrical performance, greatly reducing temperature rise and power consumption; Both ends of the melt are firmly connected with the contact by spot welding, which greatly enhances the safety and reliability of breaking short circuit fault current.
5. Agreed current and agreed time
| Test current (A) |
Fusing time (s) | |
|---|---|---|
| In: ≥60A | ||
| Min | Max | |
| 1.1In | 14400 | – |
| 1.35In | 150 | 3600 |
| 1.5In | 20 | 1500 |
| 2In | 1 | 300 |
| 3In | 0.2 | 30 |
| 5In | 0.05 | 1 |
Note: The agreed current and agreed time required by the customer can be negotiated with our company.
The characteristics of fuse will vary according to the use environment and surrounding design requirements. The performance characteristics are obtained according to the rated constant temperature of 25℃.
6. Main parameters
| NO: | Product model | Rated current (A) | Rated voltage DC (V) | Maximum voltage drop (mV) | Breaking Capacity (KA) |
|---|---|---|---|---|---|
| 1 | 5H30L150 | 150 | 500V/450V | 54 | 20 |
| 2 | 5H30L175 | 175 | 500V/450V | 56 | 20 |
| 3 | 5H30L200 | 200 | 500V/450V | 45 | 20 |
| 4 | 5H30L225 | 225 | 500V/450V | 45 | 20 |
| 5 | 5H30L250 | 250 | 500V/450V | 45 | 20 |
| 6 | 5H30L300 | 300 | 500V/450V | 46 | 20 |
