Description

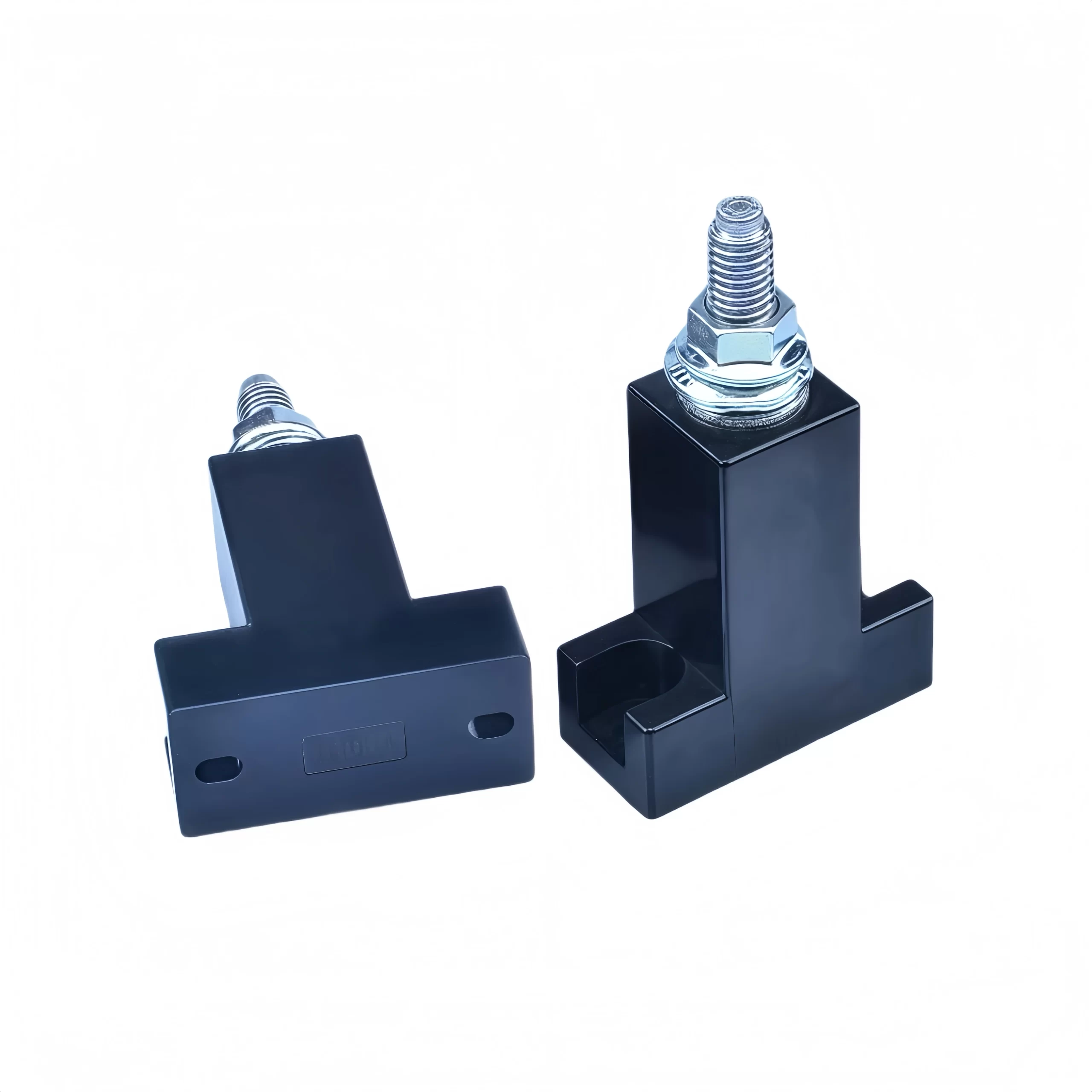

GFEV/400H Automobile Fuse Base is a professional semiconductor fuse holder engineered for high‑speed aR semiconductor fuses. Rated up to 400A and 500V/690V AC/DC, it provides stable mounting, reliable conductivity, and safe arc isolation for automotive, EV, energy storage, solar, and industrial semiconductor circuit protection.
Core Specifications
- Model: GFEV/400H
- Fuse Compatibility: aR high‑speed semiconductor fuses (100A–400A)
- Rated Current: Up to 400A AC/DC
- Rated Voltage: 500V DC / 690V AC
- Terminals: M10 bolt, tin‑plated high‑conductivity copper
- Housing: Reinforced flame‑retardant thermoplastic, arc‑resistant
- Mounting: Chassis/Panel mount (bolt‑on installation)
- Certifications: UL 248‑1, IEC 60269‑4, RoHS compliant
Key Features
✅ aR Semiconductor Fuse Dedicated
Precision cavity fits aR ultra‑fast semiconductor fuses; ensures reliable contact for microsecond‑level short‑circuit protection.
✅ 400A High‑Current Capacity
Thick copper terminals reduce voltage drop and temperature rise under continuous high‑current load.
✅ 500V/690V Dual AC/DC Rating
Supports both 500V DC (EV/ESS) and 690V AC (industrial) systems, wide application coverage.
✅ Safe Arc Isolation
Flame‑retardant housing contains arc flash during semiconductor fuse breaking; protects nearby components.
✅ Vibration & Environmental Resistance
Reinforced housing and bolted terminals prevent loosening in automotive engine bays and ESS cabinet environments.
✅ Easy Installation & Maintenance
Bolt‑on mounting; simple fuse insertion and M10 bolt tightening for quick replacement.
Common Applications
- Electric Vehicles (EV/HEV): Motor controller, OBC, high‑voltage distribution unit
- Energy Storage (BESS): 500V DC battery systems, PCS, combiner boxes
- Solar PV: Inverter DC input side, high‑power PV combiner stations
- Industrial Drives: Frequency converters, rectifiers, industrial power supplies
- Automotive Electronics: High‑current semiconductor modules, new energy vehicle power circuits
Installation & Torque
- Mounting: Secure holder to flat rigid surface with M10 bolts (torque: 12–15 Nm).
- Fuse Installation: Insert aR semiconductor fuse; tighten M10 terminal bolts firmly.
- Wiring: Connect 185–300mm² cables to M10 terminals; ensure clean, tight contact.
- Torque Check: Recheck bolt torque post‑installation and periodically in high‑vibration areas.
FAQ
What fuse does GFEV/400H fit?
aR high‑speed semiconductor fuses (100A–400A).
Max current/voltage rating?
400A AC/DC, 500V DC / 690V AC.
Can it be used for EV motor controllers?
Yes—ideal for EV/HEV motor controller and high‑voltage semiconductor circuit protection.
Why dedicated holder for semiconductor fuses?
aR fuses break extremely fast; dedicated holders ensure low contact resistance and safe arc isolation to protect semiconductors.
