GFEVT/750-R18 High Speed Fuse 20A-100A 750V automotive fuse
GFEVT750‑18R series fast‑acting high‑speed EV fuse, 750VDC 10‑100A, 50kA interrupting capacity, bolt‑on terminal for EV/HEV battery and DC relay backup protection.
Need a Fuse for Your Project?
Share your requirements with us for product guidance and a quotation.
Dimensions (mm)

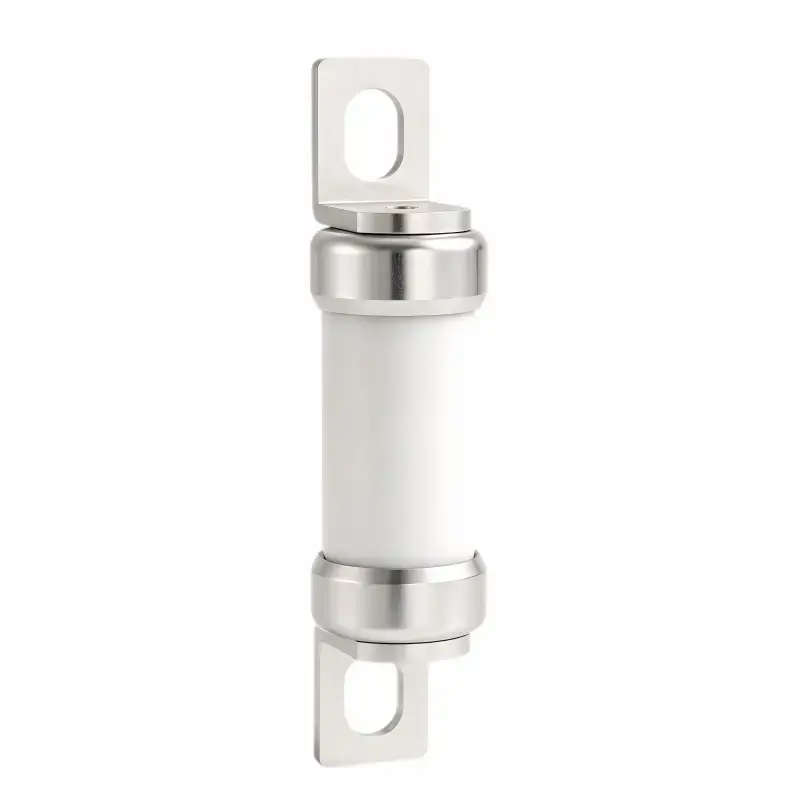

GFEVT750‑18R series fast‑acting high‑speed ev fuse 750VDC 10‑100A
GFEVT750‑18R series fast‑acting high‑speed ev fuse 750VDC 10‑100A is bolt‑mount high‑speed fast‑acting DC fuse for new‑energy EV and HEV systems. Manufactured under IATF16949 automotive quality system. It features 50kA high DC interrupting capacity, ultra‑fast breaking response under heavy fault‑current, low watt losses, excellent shock & vibration resistance. Compliant with UL‑248‑13, IEC 60269‑4, JASO‑D622. Suitable for EV battery‑pack and DC relay backup over‑current & short‑circuit protection.
GFEVT750-18R-10-100A-DC-Fast-acting-fuse
Key Features
- Model Series: GFEVT750‑18R fast‑acting high‑speed EV fuse
- Rated Voltage: 750VDC
- Current Range: 10A‑100A
- Max Interrupting Capacity: 50kA @750VDC
- Ultra‑fast‑acting performance for heavy DC fault‑current scenarios
- Low watt losses, excellent DC interruption performance
- Flush bolt‑on 18R terminal design, M5 / M6 mounting options
- Supports parallel installation for higher ampacity within dimensional guidelines
- High mechanical shock & vibration resistance ≥20g for vehicle operating environment
- Manufactured under IATF16949 automotive quality management system
- Compliant: UL‑248‑13, IEC 60269‑1/60269‑4, GB13539, JASO‑D622, RoHS; REACH available on request
General Technical Specifications
| Product Series | GFEVT750‑18R Series Fast‑Acting High‑Speed EV Fuse |
| Rated Voltage | 750 V DC |
| Rated Current Range | 10A‑100A |
| Max Interrupting Capacity | 50kA @750VDC |
| Mechanical Version | 18R flush bolt‑on terminal (M5 / M6) |
| Quality System | IATF16949 automotive certified |
| Standards Compliance | UL‑248‑13, IEC60269‑4, JASO‑D622, RoHS |
| Vibration Resistance | ≥20g |
| Operating Temperature | ‑5℃ ~ +40℃(regular);‑40℃~+85℃(allowable) |
Part Number List & Electrical Parameters
| Part Number | Rated Current | Melting A²s | Clearing A²t | Power Loss‑80%In(W) | Power Loss‑100%In(W) | Recommended Bolt & Torque |
| GFEVT750‑10A‑18R | 10A | 7.56 | 15.60 | 0.75 | 1.50 | M5‑4.5±1.0N.m |
| GFEVT750‑16A‑18R | 16A | 7.56 | 61.20 | 1.10 | 2.00 | M5‑4.5±1.0N.m |
| GFEVT750‑20A‑18R | 20A | 34.56 | 277.20 | 1.25 | 2.50 | M5‑4.5±1.0N.m |
| GFEVT750‑25A‑18R | 25A | 34.56 | 315.60 | 1.60 | 3.00 | M5‑4.5±1.0N.m |
| GFEVT750‑32A‑18R | 32A | 36.72 | 379.20 | 2.50 | 4.50 | M5‑4.5±1.0N.m |
| GFEVT750‑35A‑18R | 35A | 37.80 | 414.00 | 2.75 | 5.00 | M5‑4.5±1.0N.m |
| GFEVT750‑40A‑18R | 40A | 116.64 | 552.00 | 3.20 | 6.00 | M5‑4.5±1.0N.m |
| GFEVT750‑45A‑18R | 45A | 123.12 | 621.60 | 3.45 | 6.50 | M5‑4.5±1.0N.m |
| GFEVT750‑50A‑18R | 50A | 136.08 | 828.00 | 4.00 | 7.50 | M5‑4.5±1.0N.m |
| GFEVT750‑63A‑18R | 63A | 160.92 | 1080.00 | 5.30 | 10.00 | M6‑6.0±1.0N.m |
| GFEVT750‑70A‑18R | 70A | 249.48 | 1368.00 | 6.20 | 12.00 | M6‑6.0±1.0N.m |
| GFEVT750‑80A‑18R | 80A | 297.00 | 2160.00 | 7.80 | 15.00 | M6‑6.0±1.0N.m |
| GFEVT750‑90A‑18R | 90A | 451.44 | 3024.00 | 9.50 | 18.00 | M6‑6.0±1.0N.m |
| GFEVT750‑100A‑18R | 100A | 558.36 | 4032.00 | 10.30 | 20.00 | M6‑6.0±1.0N.m |
Application Scenarios
GFEVT750‑18R series fast‑acting high‑speed ev fuse 750VDC 10‑100A is built for new‑energy transportation: EV / HEV battery‑pack protection, backup protection for DC relay, vehicle‑mounted high‑power DC circuits and energy‑storage DC‑system. Delivers fast‑acting short‑circuit and over‑current protection for 750VDC automotive high‑voltage DC platforms.
Installation & Operating Notes
- Flush bolt‑on mounting; strictly follow specified bolt torque value for each current rating to prevent poor contact & over‑heating.
- Recommended continuous operating current ≤75% of fuse rated‑current; apply temperature‑derating factor for ambient temperature over 40℃.
- For closed‑box / high‑altitude installation (>2000m), perform rated‑current derating according to technical datasheet.
- Parallel mounting allowed only within dimensional and specification guidelines for higher ampacity.
- Do NOT replace fuse under live DC load unless equipped with certified load‑break switchgear.
- Replace fuse immediately if mechanical damage, crack or deformation occurs.
- Additional reliability validation is required for extremely high‑vibration vehicle working environments.
Packing & Supply
Standard bulk package. Sample testing support, OEM customization, stable mass‑volume supply for new‑energy vehicle & energy‑storage equipment manufacturers. REACH declaration available upon customer request.
FAQ
Q: What rating for GFEVT750‑18R series fast‑acting high‑speed ev fuse 750VDC 10‑100A?
A: Rated 750VDC, current 10‑100A, max interrupting capacity up to 50kA@750VDC, IATF16949 automotive‑grade quality.
Q: What bolt options for GFEVT750‑18R?
A: 18R flush bolt‑on terminal; M5 for low‑current models, M6 for high‑current models with defined torque requirements.
Q: What standards does GFEVT750‑18R comply with?
A: UL‑248‑13, IEC60269‑4, GB13539, JASO‑D622, RoHS compliant; REACH document available on request.
Q: Main application of GFEVT750‑18R?
A: EV/HEV battery‑pack, DC relay backup protection, on‑board high‑power DC‑circuit over‑current & short‑circuit protection.
