In-line fuse holder GF/630P Wiring Harness Fuse Holder (Fuse Box):China GFEFUSE: Fuse holder manufacturers provide panel fuse holders, PCB fuse holders, DC fuse holders, automotive fuses, and inline fuse holders
Description

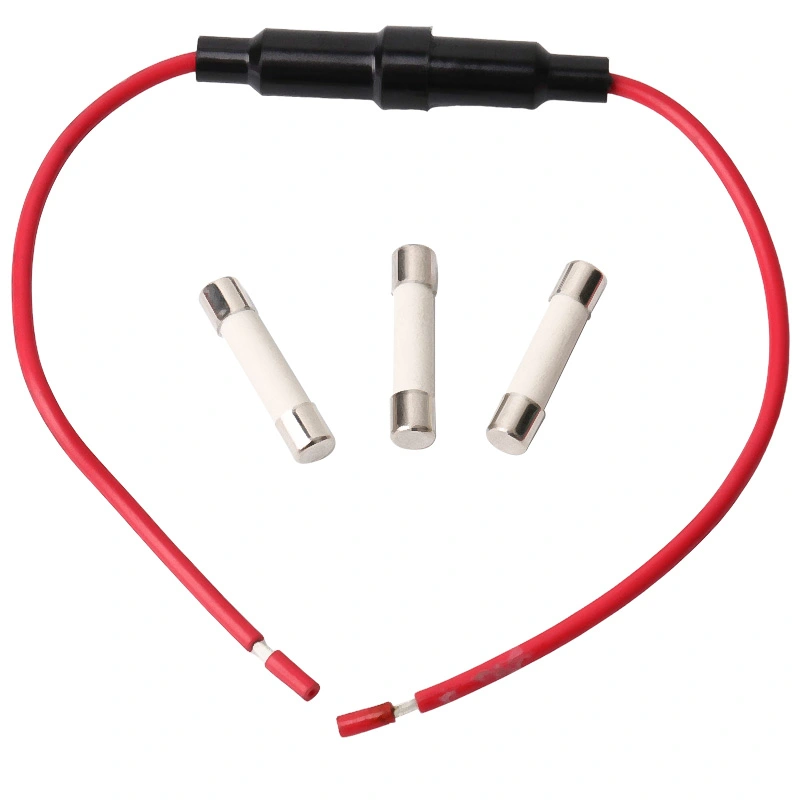

1. Product model: EssFuse: GF/630P fuse holder
2. A: Upper cover B: Lower cover (Material: phenolic plastic)
3. Terminal: H65 (change according to the size of the wire terminal)
4. Spring: galvanized steel surface
5. Applicable wiring harness 14AWG-12AWG (corresponding to the wire according to the current size)
6. Product supporting 6.35×31.75mm fuse tube (0.5A-20A / AC(DC) 125V/250V)
7. Product: UL-94V0
8. There will be no notice for changes in product dimensions
9. The product is customized according to customer needs, with different lengths and wires
In-line Fuse Holder GF/630P Wiring Harness Fuse Holders
GF/630P in-line fuse holder is a dedicated wiring harness type fuse holder, specially customized for automotive wiring harness, equipment internal wiring and DC circuit harness connection.
Adopting inline series wiring design, it is easy to integrate into wiring harness production lines, providing stable overcurrent and short-circuit protection for harness circuits.
Product Specifications
- Model: GF/630P
- Type: In-line / wiring harness fuse holder
- Applicable Fuse: Standard regular blade fuses/AC fuse
- Rated Voltage: 12V / 24V DC 125V250V500V1000V ac
- Working Current: 1A–30A
- Shell Material: Flame retardant environmental protection plastic
- Internal Terminal: High elasticity nickel-plated brass
- Feature: Wire harness integration, waterproof optional, anti-drop cover design
Core Features
- Professional wiring harness design, perfectly match automotive and equipment wiring harness assembly process.
- In-line series connection, no need to modify the circuit structure, convenient mass wiring production.
- Flame-retardant housing prevents arc spread, improve harness circuit safety.
- Elastic metal clips clamp blade fuse tightly, anti-vibration and not easy to loose.
- Small and lightweight, easy to bundle and fix with wiring harness.
Application Scope
Automotive wiring harness, motorcycle wiring harness, engineering equipment wiring harness, DC electrical equipment internal lines, LED light circuits, off-road vehicle modified circuits and various wiring harness supporting fuse protection.
FAQ
What is GF/630P used for?
GF/630P is in-line wiring harness fuse holder, used for blade fuse protection in wiring harness circuits.
Is it suitable for automotive wiring harness?
Yes, GF/630P is specially designed for automotive and equipment wiring harness matching use.
What current does GF/630P support?
Supports 1A to 30A blade fuses, common 12V 24V DC/125v250v500v1000v/ac harness circuits.
