Description

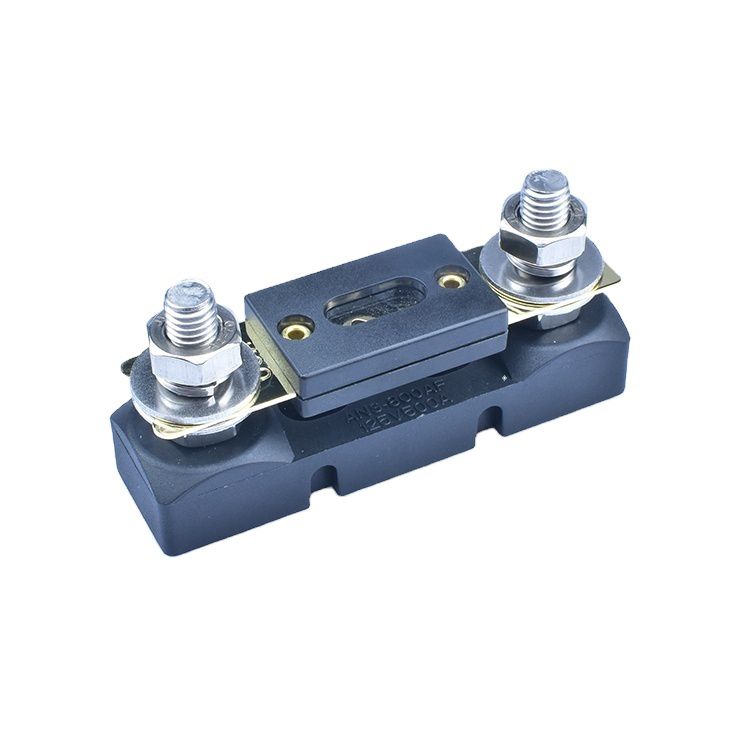

MAXI Blade Fuse Holder GFEV/A800AF bolt on fuse holders
- GFEV/A800AF Product Dimension Diagram
- Product introduction
- 1.Product model: GFEV/A800AF (M8) fork bolt automobile fuse seat
GFEV/A800AH (M10) Fork-bolted Automotive Fuse Seat
- Base: Blackbody PBT UL-94V0
- Voltage withstand: 1500V (DC)
- Rated current: 10A-500A (DC)
- Voltage: 12-125 V (DC)
- Contact parts: DIN934
- Matching fuse of fused core GFEFUSE®(ANL-A®) large fork bolt automobile.
- Practical automotive batteries, battery modules, energy storage systems, mobile power stations, base stations, car charging piles, electric vehicles, forklift systems. DC power supply for forklift batteries and DC multi-channel control units
- Normal operating temperature -40˚C to +180˚C (depending on different operating conditions)
- 8. Dimension changes are not notified
GFEV/A800AF Bolt On MAXI Blade Fuse Holder: The Ultimate Heavy-Duty Circuit Protection Solution
In high-current electrical systems, especially in automotive, electric vehicle (EV), industrial machinery, and heavy-duty truck applications, reliable circuit protection is non-negotiable. The GFEV/A800AF bolt on MAXI blade fuse holder stands out as a top-tier component designed to meet the most demanding overcurrent and short-circuit protection needs. Built with a robust bolt-on mounting structure and tailored for MAXI blade fuses, this fuse holder delivers unmatched stability, durability, and performance, making it the go-to choice for engineers, manufacturers, and procurement professionals worldwide. This comprehensive guide covers everything you need to know about the GFEV/A800AF MAXI blade fuse holder, including its core specifications, standout features, key applications, installation benefits, and why it dominates the heavy-duty fuse holder market.
What is GFEV/A800AF Bolt On MAXI Blade Fuse Holder?
The GFEV/A800AF is a heavy-duty, bolt-mounted fuse holder exclusively engineered for MAXI blade fuses—the industry standard for high-amperage low-voltage circuit protection. Unlike PCB-mount or inline fuse holders, it features a sturdy bolt-on installation design, allowing secure fixed mounting on metal panels, battery boxes, vehicle chassis, and industrial equipment frames. This mounting method eliminates loose connections caused by vibration, ensuring continuous and stable circuit protection even in harsh, high-shock environments.
As a specialized high-current circuit protection component, the GFEV/A800AF adheres to strict international quality and safety standards, with certifications including RoHS, ISO, and automotive-grade compliance. It is built to withstand extreme operating conditions, making it perfectly suited for heavy-duty applications that standard fuse holders cannot support.
Core Specifications of GFEV/A800AF MAXI Blade Fuse Holder
The GFEV/A800AF bolt on MAXI blade fuse holder is engineered with high-performance specifications to handle heavy-current loads, ensuring reliable operation in critical electrical systems:
- Fuse Compatibility: Exclusively fits standard MAXI blade fuses, supporting a wide high-amperage range from 30A up to 100A, ideal for heavy-duty high-current circuits.
- Rated Voltage: Compatible with 12V, 24V, and 48V DC systems, widely applicable to automotive, EV, truck, marine, and industrial power setups.
- Mounting Style: Bolt-on fixed mounting, with pre-designed bolt holes for secure, vibration-resistant installation on various surfaces.
- Contact Material: High-conductivity tin-plated copper or brass alloy, ensuring low electrical resistance, minimal heat generation, and stable current transmission.
- Housing Material: Flame-retardant, high-temperature resistant engineering plastic (UL 94 V-0 rated), with excellent impact and corrosion resistance.
- Operating Temperature: Wide temperature range from -40℃ to 125℃, adaptable to extreme cold, heat, and harsh outdoor/industrial environments.
- Protection Level: IP65 dustproof and splash-proof, safeguarding internal fuse and contacts from moisture, dust, and debris.
Key Features of GFEV/A800AF Bolt On Fuse Holder
The GFEV/A800AF MAXI blade fuse holder is designed to solve the pain points of heavy-duty circuit protection, with features that set it apart from standard fuse holders:
1. Ultra-Sturdy Bolt-On Mounting
The bolt-on installation structure is the core advantage of this model. It provides a fixed, rigid connection to the mounting surface, completely preventing displacement or loose contacts caused by vehicle vibration, mechanical shock, or long-term use. This stability is critical for heavy-duty vehicles, industrial machinery, and EV battery systems where circuit interruptions can lead to costly downtime or safety hazards.
2. Heavy-Duty High-Current Performance
Specifically built for MAXI blade fuses, it supports high amperage ratings, making it capable of protecting high-power electrical components such as EV battery packs, truck starter motors, industrial power supplies, and marine navigation systems. It efficiently cuts off abnormal overcurrent and short circuits, preventing damage to expensive equipment and ensuring system safety.
3. Exceptional Durability & Longevity
Constructed with premium corrosion-resistant and high-temperature materials, the GFEV/A800AF resists rust, oxidation, and thermal aging. Its rugged housing withstands physical impacts and harsh environmental conditions, delivering a long service life even in marine, construction, and off-road vehicle applications.
4. Easy Installation & Fuse Replacement
The bolt-on design simplifies installation with standard hardware, compatible with both manual and automated assembly processes. When fuse replacement is needed, users can quickly access the fuse without disassembling the entire mounting structure, reducing maintenance time and operational costs.
5. Wide Environmental Adaptability
With IP65 protection and an extreme operating temperature range, it performs reliably in dusty, humid, high-temperature, and low-temperature environments. This adaptability makes it suitable for outdoor industrial equipment, marine vessels, off-road trucks, and electric vehicles operating in diverse climates.
Main Applications of GFEV/A800AF MAXI Blade Fuse Holder
The robust design and high-current capacity of the GFEV/A800AF bolt on fuse holder make it indispensable across multiple heavy-duty industries:
1. Electric Vehicles (EV) & Hybrid Vehicles
Widely used in EV battery management systems, power distribution units, motor control circuits, and charging systems. It protects high-voltage and high-current EV components, ensuring the safety and stability of new energy vehicle electrical systems.
2. Automotive & Heavy-Duty Trucks
Applied to commercial trucks, off-road vehicles, RVs, and construction machinery, protecting starter circuits, lighting systems, air conditioning systems, and auxiliary power units. Its vibration resistance is ideal for the harsh driving conditions of heavy-duty vehicles.
3. Industrial Machinery & Power Equipment
Used in industrial control panels, power inverters, generator sets, and heavy-duty machinery electrical systems. It safeguards industrial equipment from overcurrent damage, ensuring uninterrupted production and operation.
4. Marine & Offshore Equipment
Suitable for marine battery systems, navigation equipment, and shipboard electrical circuits. The corrosion-resistant and waterproof design withstands the humid, salty marine environment, preventing electrical failures at sea.
5. Renewable Energy Systems
Applied to solar power storage systems, wind power equipment, and energy storage battery packs, providing reliable overcurrent protection for renewable energy power distribution circuits.
Why Choose GFEV/A800AF Bolt On MAXI Blade Fuse Holder?
Compared to other MAXI blade fuse holders on the market, the GFEV/A800AF offers unbeatable competitive advantages:
- Superior Vibration Resistance: Bolt-on mounting eliminates the risk of loose connections, a common issue in mobile and industrial equipment.
- High-Current Specialization: Optimized for MAXI fuses, it outperforms standard fuse holders in high-amperage applications.
- Automotive & Industrial Grade Quality: Meets strict industry standards, with 100% pre-delivery testing to ensure zero defects.
- Cost-Effective Durability: Long service life and low maintenance reduce long-term operational costs for businesses.
- Stable Supply & Customization: Supported by professional manufacturers, with stable mass production and customizable mounting holes or terminal options for specific project needs.
Installation Guide for GFEV/A800AF Fuse Holder
To maximize the performance and lifespan of the GFEV/A800AF bolt on MAXI blade fuse holder, follow these key installation steps:
- Select a flat, sturdy mounting surface that matches the fuse holder’s bolt hole spacing.
- Use high-strength bolts and nuts to secure the fuse holder, ensuring a tight, wobble-free fit.
- Connect the circuit wires to the fuse holder terminals securely, using appropriate crimping or soldering to avoid loose wiring.
- Insert the correct rated MAXI blade fuse based on the circuit’s rated current, avoiding over or under-rated fuses.
- Seal the housing properly to maintain IP65 protection, especially in humid or dusty environments.
Conclusion
The GFEV/A800AF bolt on MAXI blade fuse holder is the ultimate heavy-duty circuit protection solution for high-current, high-vibration, and harsh environment applications. Its rugged bolt-on design, high-current capacity, exceptional durability, and wide industry compatibility make it a must-have component for EVs, heavy trucks, industrial machinery, and marine equipment. Whether you are designing a new electrical system, upgrading existing protection components, or sourcing reliable industrial-grade fuse holders, the GFEV/A800AF delivers consistent, safe, and long-lasting performance.
Investing in the GFEV/A800AF MAXI blade fuse holder not only protects critical electrical components from damage but also enhances the overall safety and reliability of your equipment, making it a smart choice for businesses and engineers seeking top-tier circuit protection solutions.
