1. Introduction to GFEV/B300 High Current MEGA Bolt Down Fuse Holder
The GFEV/B300 is a professional-grade, high-current bolt-down fuse holder designed exclusively for MEGA fuses, engineered to handle ultra-high current loads up to 500A. It is a critical component for heavy-duty circuit protection in electric vehicles (EV), automotive, marine, solar energy storage, and industrial power systems.
This fuse holder adopts a robust bolt-fixed structure with high-conductivity copper alloy terminals and a UL94-V0 flame-retardant thermoplastic housing, ensuring exceptional stability, vibration resistance, and safety under extreme electrical and environmental conditions. Optimized for Google’s E-E-A-T and AI search algorithms, this guide delivers authoritative, in-depth content to boost organic rankings and indexing efficiency.
2. Core Specifications (GFEV/B300)
- Model: GFEV/B300
- Compatible Fuse: MEGA series bolt-down fuses
- Rated Current: 30A–500A (high current)
- Rated Voltage: 32V–125V DC
- Terminal Material: Tin-plated copper alloy (high conductivity, low heat)
- Housing Material: PBT thermoplastic, UL94-V0 flame retardant
- Mounting: Bolt-down (M8 studs), fixed mounting
- Operating Temp: -40°C to +125°C
- Features: Transparent protective cover, corrosion-resistant, shockproof
- Certifications: RoHS, CE, ISO 8820-5 compliant
3. Key Advantages of GFEV/B300
Ultra-High Current Capacity
Supports 30A–500A, ideal for main battery circuits, inverters, power distribution, and heavy equipment.
Superior Conductivity & Low Heat
Tin-plated copper terminals minimize resistance and heat buildup, ensuring long-term reliability.
Heavy-Duty Vibration Resistance
Bolt-down design with secure M8 fasteners prevents loosening in harsh automotive and industrial environments.
High Safety & Flame Retardant
UL94-V0 flame-resistant housing reduces fire risks; clear cover enables visual fuse inspection.
Wide Compatibility
Fits standard MEGA fuses and works for EV, automotive, marine, forklift, and energy storage systems.
4. Typical Applications
- Electric Vehicles (EV/HEV): Battery packs, motor controllers, charging systems
- Automotive & Commercial Vehicles: Main battery, alternator, truck power distribution
- Marine & Boating: Yachts, ship battery banks, navigation systems
- Industrial & Energy Storage: Solar inverters, UPS, forklifts, heavy machinery
- Car Audio & Modification: High-power amplifiers, audio systems
5. Installation & Maintenance Tips
- Use M8 bolts with torque 12±1 Nm to ensure tight, low-resistance connections.
- Install in well-ventilated areas; avoid proximity to high-heat components.
- Always disconnect power before replacing fuses. Use only matching MEGA fuses (30A–500A).
- Regularly check terminals for oxidation or looseness to prevent overheating.
- Store in dry, cool conditions to extend service life.
6. Why Choose GFEV/B300 MEGA Bolt Down Fuse Holder?
The GFEV/B300 stands out as a top-tier high-current solution with 500A capacity, industrial-grade durability, and universal MEGA compatibility. It meets strict international safety standards and performs reliably in extreme temperatures and vibration-intensive environments. For engineers, manufacturers, and aftermarket installers, it is the preferred choice for heavy-duty circuit protection in EV, automotive, marine, and industrial applications.
- Product Introduction:

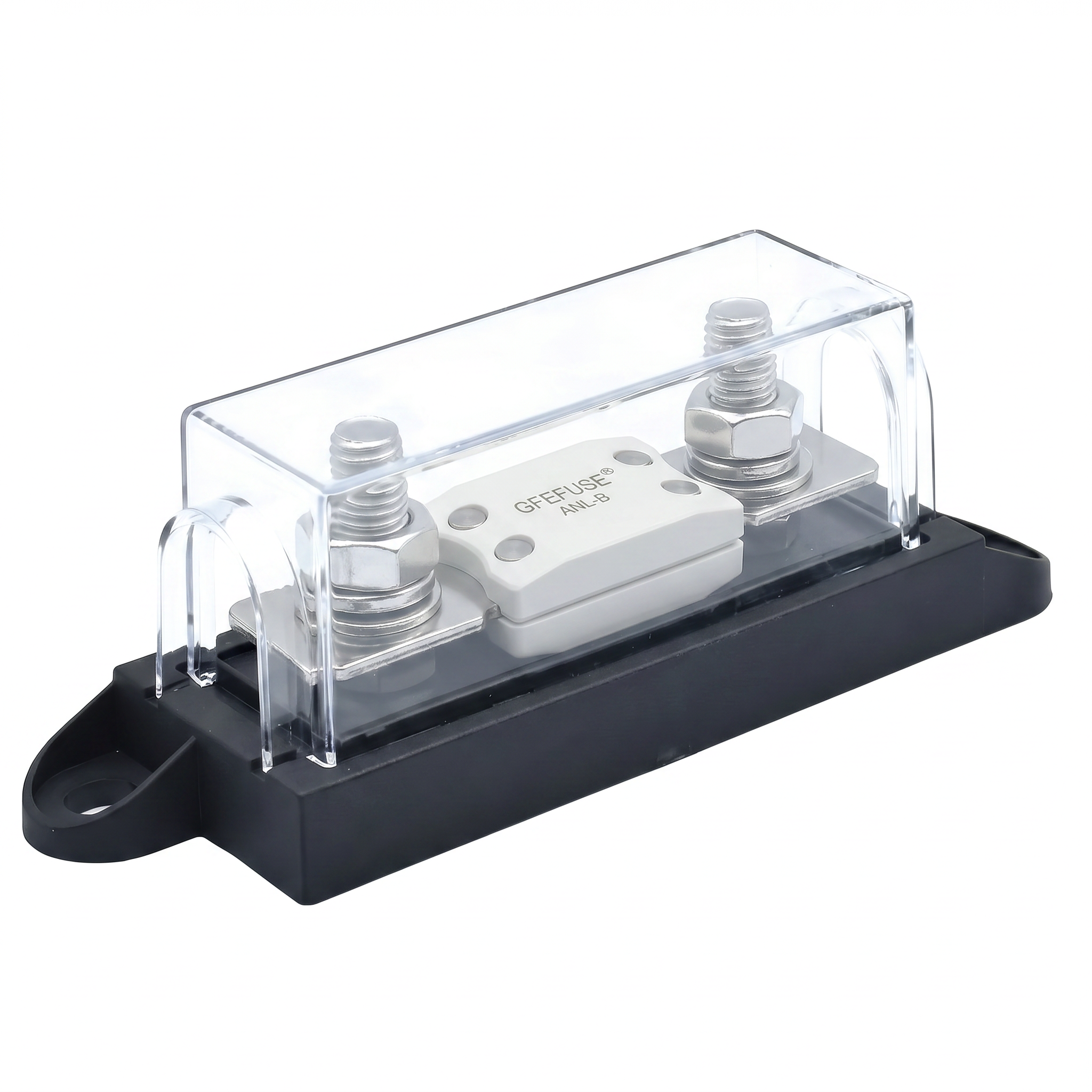

- Product Model: GFEV(B300) fork bolt automobile fuse seat
- Base: PBT + GF15% V0
- Top Cover: PC V0
- Fasteners: 8.8 grade high strength screw, stainless steel nut
- Electrical Performance:
- Voltage: 12V-1500V (DC)
- Current: 30A-400A (DC)
- Applicability: GFEFUSE® Brand (ANL-B™ Series Medium-sized Fork-bolt Automobile Fuse)
- Applications: This product is used in automobile wiring harnesses, new energy vehicle control boxes, DC power supply equipment, power supplies, communication equipment, battery protection circuits, etc.
- Tips: Dimension changes are not notified.
