GF-702 horizontal medium-car insert fuse holder PCB mount clip

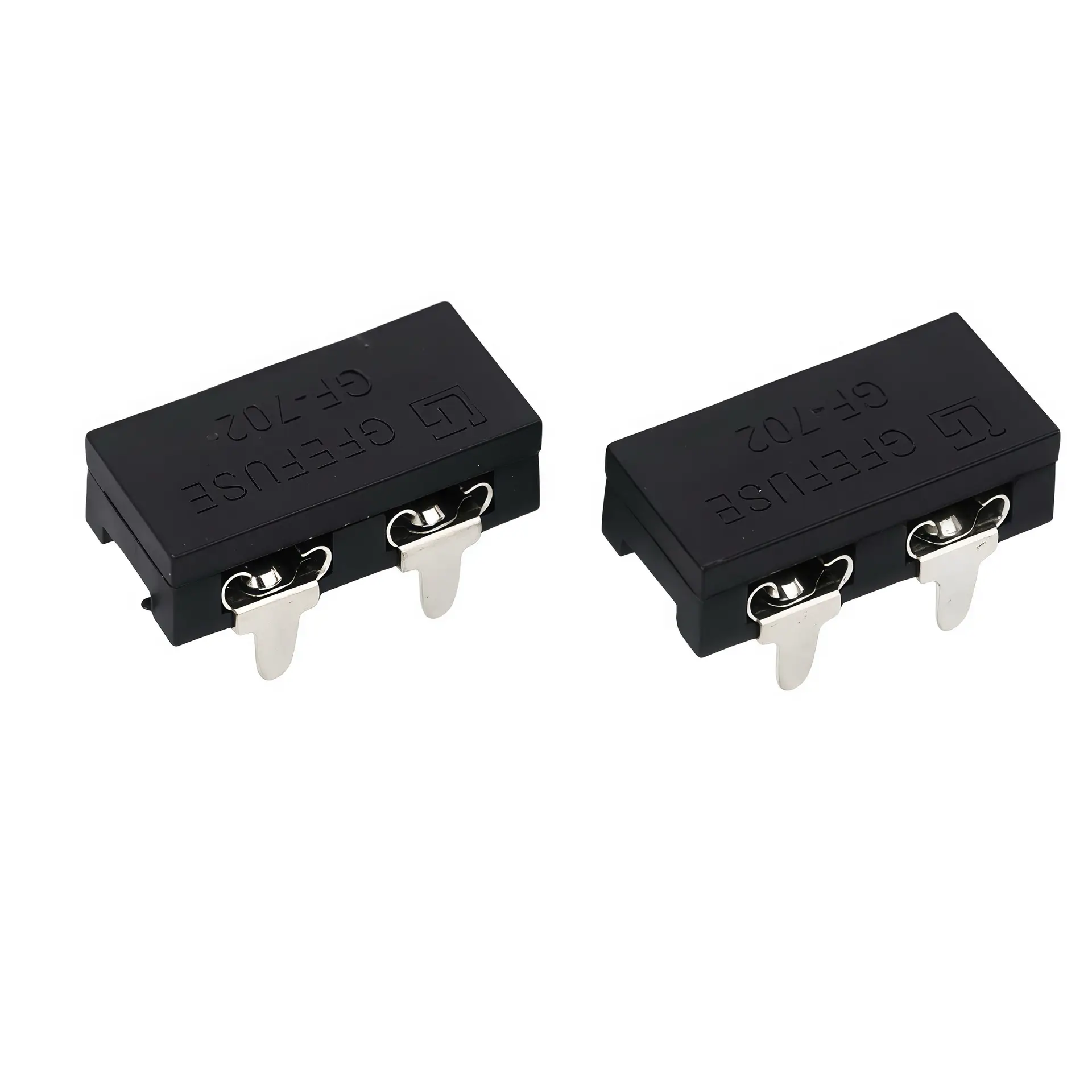

GF-702 horizontal medium-car insert fuse holder PCB mount clip is a horizontal PCB-soldered fuse clip designed for medium-size automotive ATO blade fuses. It adopts 0.3 mm thick brass contacts with tin-plated finish and flame-retardant PBT UL-94V-0 base. Offering stable electrical conductivity, qualified insertion-extraction force and high dielectric strength for automotive PCB over-current and short-circuit protection. It matches our GF-B ATO medium blade fuse.GF-702-auto-fuse-holder
Key Features
- Model: GF-702 horizontal medium-car insert fuse holder PCB mount clip
- Compatible Fuse: Medium-size automotive ATO blade fuses
- Contact Material: Brass, thickness T=0.3 mm, tin-plated
- Base Housing: PBT UL-94V-0 flame retardant plastic
- Mounting Method: PCB horizontal through-hole soldering installation
- Electrical Rating: 30A @ 500VAC
- Minimum insertion & extraction force: 1kg
- High dielectric strength, low contact resistance
- Max temperature rise: 130°
- Recommended soldering condition: 260 ℃ for 3 seconds
- Compact footprint, saves PCB layout space
- Good vibration resistance for automotive working environment
Технические характеристики
| Product Model | GF-702 horizontal medium-car insert fuse holder PCB mount clip |
| Matching Fuse | Medium-size Automotive ATO Blade Fuse |
| Contact | Brass T=0.3mm, Tin-plated |
| Base Material | PBT UL-94V-0 Flame Retardant |
| Electrical Rating | 30A @ 500VAC |
| Insertion & Extraction Force | Min. 1kg |
| Dielectric Strength | Min. AC 1000V |
| Contact Resistance | Max. 50mΩ |
| Max Temperature Rise | 130° |
| Insulation Resistance @500V DC | Min. 100MΩ |
| Recommended Soldering Condition | 260 ℃, 3 seconds |
| Installation | PCB Horizontal Through-hole Mount |
Application Scenarios
GF-702 horizontal medium-car insert fuse holder PCB mount clip is widely used for automotive ECU, vehicle lighting control boards, on-board power modules and other automotive electronic PCBs. It supports quick replacement for medium-size ATO blade fuses after overload or short-circuit fault.
Installation Notes
- Horizontal through-hole soldering on PCB; confirm component footprint before PCB layout
- Only compatible with medium-size ATO blade fuses, not fit MINI / Maxi blade fuses
- Do not exceed rated current and voltage during application
- Comply with 260 ℃-3s soldering requirement to prevent plastic base damage
- Periodic inspection is recommended for equipment working under continuous vehicle vibration
Packing & Supply
Bulk packing or tape & reel packing available. Sample testing support, OEM customization and stable mass-volume supply for automotive electronics manufacturers.
Часто задаваемые вопросы
Q: Which fuse matches GF-702 horizontal medium-car insert fuse holder PCB mount clip?
A: It is designed for medium-size automotive ATO blade fuses.
Q: What is the mounting style of GF-702?
A: GF-702 adopts horizontal PCB through-hole soldering installation.
Q: What is the electrical rating for GF-702?
A: Rated 30A @500VAC, minimum insertion-extraction force is 1kg.
Q: What is the soldering requirement for GF-702?
A: Recommended soldering condition: 260 ℃ for 3 seconds.
