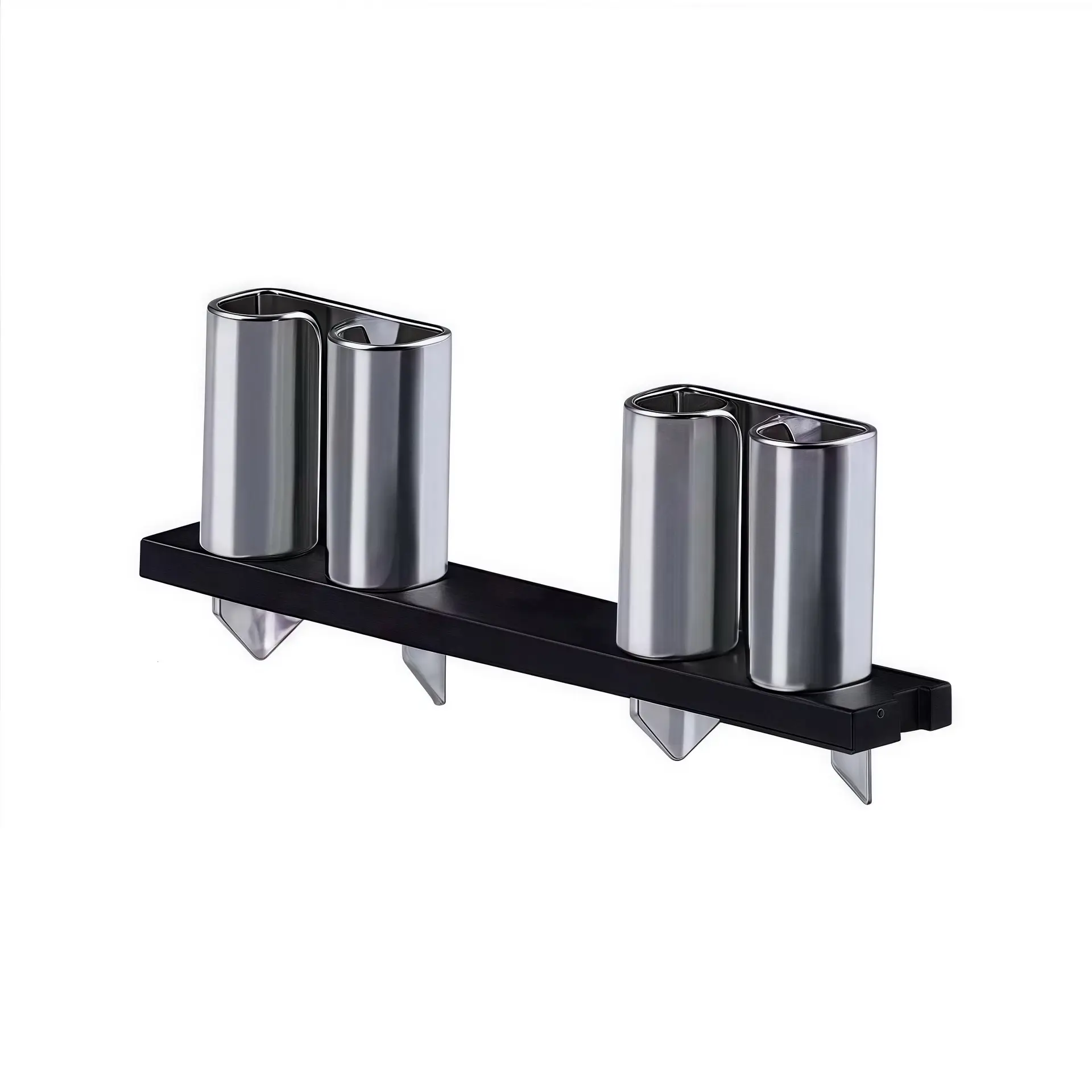

Maxi blade fuse holder GF/700 is a PCB through-hole fuse block specially designed for ATM Maxi blade fuses, the largest size automotive blade fuse. This Maxi fuse clip adopts 15% glass fiber reinforced PA66 housing and tin plated brass terminals, delivering outstanding mechanical strength, high insulation performance and stable contact for heavy-duty 32V DC automotive circuit protection.
Key Features
- Model: GF/700 Maxi blade fuse holder, PCB mount fuse block
- Fuse type: Compatible with ATM Maxi blade fuses
- Terminal material: Tin plated brass
- Insulator: PA66 with 15% glass fiber, high strength
- Smooth surface, no burrs or sharp edges
- Designed for the largest size blade fuse
- Stable insertion and extraction force
- High insulation voltage and insulation resistance
- PCB through-hole mounting for soldering assembly
Thông số kỹ thuật
Insulation StrengthInsulation Resistance
| Product Model | GF/700 Maxi Blade Fuse Holder |
| Matching Fuse | ATM Maxi blade fuse |
| Terminal | Tin plated brass |
| Insulator Material | PA66, 15% glass fiber reinforced |
| Electrical Rating | 20A – 100A, 32V DC |
| Insertion & Extraction Force | Min. 1kg |
| Min. 2000V AC | |
| Min. 100MΩ @500V DC | |
| Contact Resistance | Max. 50mΩ |
| Installation Method | PCB through-hole mount |
Application
This Maxi blade fuse holder GF/700 is used for overload and short-circuit protection of high-current DC circuits. It is widely used in heavy-duty vehicles, truck power systems, construction machinery, RV high-power circuits, battery management systems and other equipment that uses ATM Maxi large blade fuses.
Installation Notes

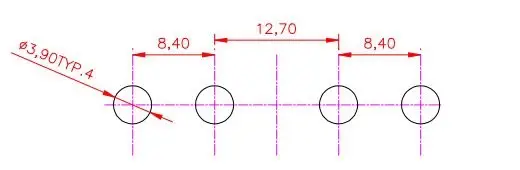

- Through-hole soldering on PCB; confirm pin dimension before layout
- Only fit ATM Maxi blade fuses, not compatible with ATO / MINI blade fuses
- Select fuse current rating according to actual load, do not exceed 100A
- Keep sufficient creepage distance for high current layout
- Check contact condition periodically for long-time heavy load use
Packing & Supply
Standard bulk packing or tape and reel packing available. We support sample provision, OEM customization and long-term bulk supply for automotive electronics manufacturers and heavy-duty equipment suppliers.
