ANL-B200ASF56 Bolt Down ESS Fuse DC175V 100-700A UL248-1
EssFuse ANL‑B200ASF56 bolt‑down energy storage fuse, DC175V,100‑700A,‑40~+125℃,UL248‑1 for battery,ESS,EV motorcycle,supercapacitor protection.
Need a Fuse for Your Project?
Share your requirements with us for product guidance and a quotation.
Product Overview

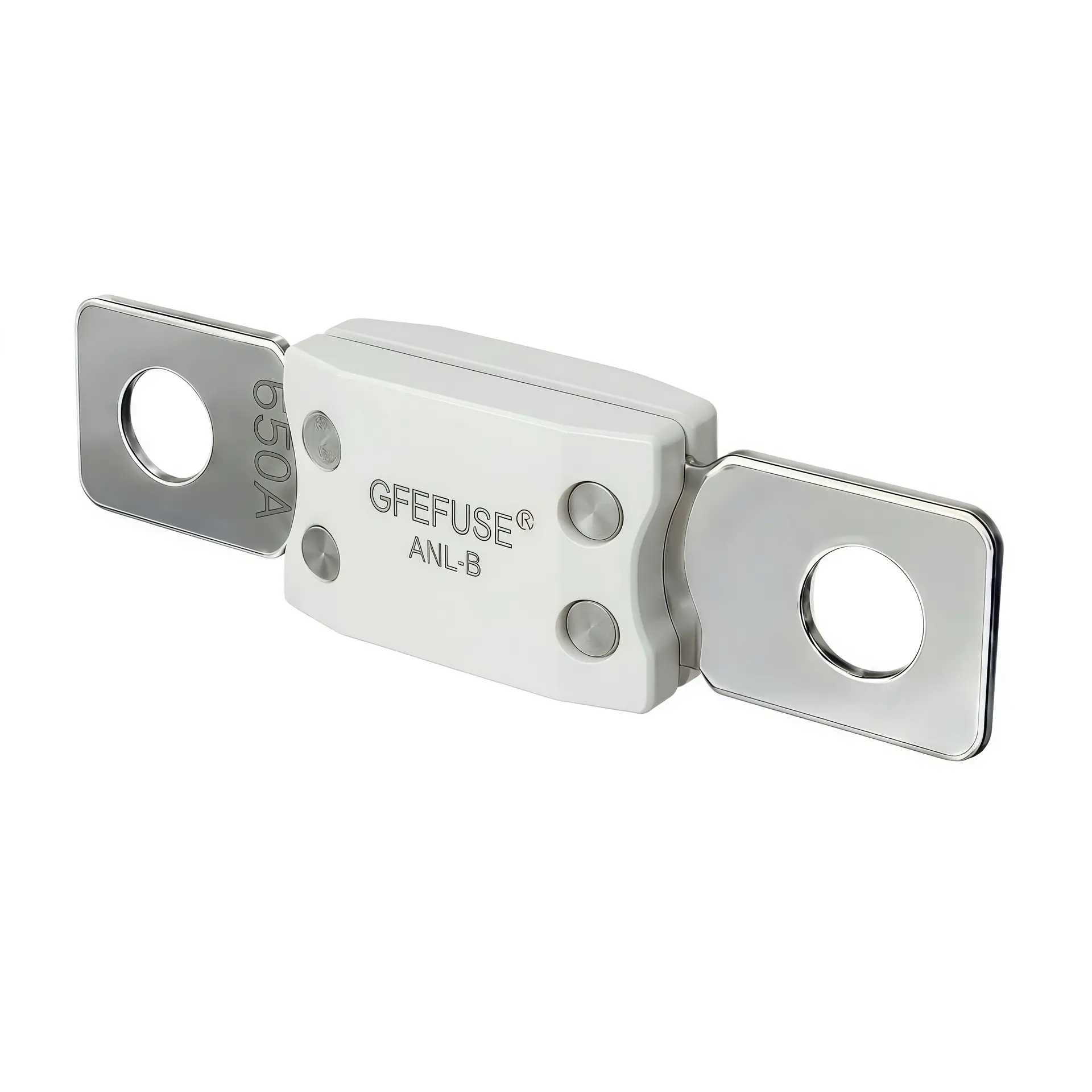

ANL-B200ASF56 bolt down ESS fuse is a compact high-current DC fuse developed by EssFuse (Dongguan Gongfu Electronic). This bolt down ESS fuse is rated DC175V, with current range 100A-700A and compliant with UL248-1 standard.
Designed for energy storage battery systems, supercapacitors, electric motorcycles, new-energy trams, UAV power distribution and industrial DC busbar short-circuit & overload protection. It features 20kA high short-circuit breaking capacity, stable arc-extinction performance for circuits with L/R ≤ 25ms, and fast clearing speed to protect semiconductor power devices from surge damage. This bolt down ESS fuse is widely selected by energy storage system integrators for its stable performance and compact bolt-down installation structure.
Key Features of Bolt Down ESS Fuse
- Bolt-down installation design for easy mounting and stable connection
- Rated voltage DC175V, current range from 100A to 700A
- UL248-1 certified, suitable for energy storage system protection
- High breaking capacity, reliable overcurrent and short-circuit protection
- Compact structure, widely used in ESS, supercapacitor and EV motorcycle projects
Main Electrical Specifications
| Item | Parameter |
|---|---|
| Product Series | ANL-B200ASF56 Bolt-Down ESS Fuse |
| Rated DC Voltage | 175 V DC |
| Rated Current Range | 100A ~ 700A |
| Standard Compliance | UL248-1 |
| Shell Material | High-temp PPS + Ceramic |
| Operating Temperature | -40 ℃ ~ +125 ℃ |
| Rated Short-circuit Breaking Current | 20 kA |
| Adaptable Circuit L/R | ≤25 ms |
| Mounting Type | Bolt-down (Stud mounting) |
| Typical Application | ESS battery,supercapacitor,EV motorc |
I²t Parameter for Each Model
| Part Number | Rated Current(A) | Pre‑arcing I²t(A²s) | Arcing I²t(A²s) | Total Clearing I²t(A²s) |
|---|---|---|---|---|
| ANL‑B200A100SF56 | 100 | 520 | 182 | 702 |
| ANL‑B200A150SF56 | 150 | 980 | 280 | 1260 |
| ANL‑B200A200SF56 | 200 | 1650 | 434 | 2084 |
| ANL‑B200A250SF56 | 250 | 2600 | 665 | 3265 |
| ANL‑B200A300SF56 | 300 | 3750 | 980 | 4730 |
| ANL‑B200A350SF56 | 350 | 5100 | 1330 | 6430 |
| ANL‑B200A400SF56 | 400 | 6800 | 1785 | 8585 |
| ANL‑B200A450SF56 | 450 | 8250 | 2258 | 10508 |
| ANL‑B200A500SF56 | 500 | 10800 | 2800 | 13600 |
| ANL‑B200A550SF56 | 550 | 13100 | 3390 | 16495 |
| ANL‑B200A600SF56 | 600 | 15600 | 3990 | 19590 |
| ANL‑B200A650SF56 | 650 | 18250 | 4585 | 22835 |
| ANL‑B200A700SF56 | 700 | 21000 | 5180 | 26180 |
Important Technical Notes:
- Under 20kA short‑circuit test condition, this fuse reduces melting & arcing energy for faster breaking, less impact to power semiconductors.
- Overload threshold & voltage drop remain stable; long‑term current‑carrying capacity is not affected by short‑circuit level.
- Suitable for low‑voltage DC busbar, ESS auxiliary circuit and industrial DC equipment protection.
- Design Tip: Reserve protection margin during selection. Total clearing I²t must be lower than semiconductor device withstand I²t limit.
Time‑Current Characteristic
| % of Rating Current | Opening Time Min / Max (100A‑700A Series) |
|---|---|
| 100% | 4H / ∞ |
| 300% | ~ / 10 S |
Reference drawing: Mechanical dimension drawing and Time‑Current Characteristic Curve, please download datasheet PDF.
Application Scenarios
- Energy storage battery & super‑capacitor system protection
- Electric motorcycle, new‑energy tram power distribution
- UAV high‑current power distribution protection
- High‑current wire harness protection
- Charging supporting system, industrial DC control busbar
Frequently Asked Questions
1: What is the rated DC voltage for ANL‑B200ASF56 series ESS fuse?
1: Rated DC voltage is 175V DC. It is bolt‑down type specially designed for DC energy‑storage circuits, not recommended for AC main circuit.
2: What current ratings are available for this fuse series?
2: Available current rating covers 100A,150A,200A,250A,300A,350A,400A,450A,500A,550A,600A,650A,700A. Full I²t data refer to datasheet table.
3: What is the breaking capacity of ANL‑B200ASF56?
3: Short‑circuit breaking capacity is 20kA. It can work normally for circuit with L/R ≤ 25ms. Please check total clearing I²t match your semiconductor device withstand capability.
4: What is operating temperature range of this bolt‑down ESS fuse?
4: Working temperature range: ‑40℃ ~ +125℃, fits outdoor energy‑storage, vehicle and UAV high & low‑temperature environment.
5: Does this fuse comply with UL standard?
5: Yes, this series complies with UL248‑1 standard, shell material is high‑temperature PPS plus ceramic for better arc extinction performance.
6: Which projects can use ANL‑B200ASF56 fuse?
6: Mainly for energy‑storage battery pack, supercapacitor bank, electric motorcycle, new‑energy tram, UAV power distribution, DC charging auxiliary circuit, industrial low‑voltage DC busbar protection.
7: How to select correct current rating for my battery system?
7: Reserve safety margin: fuse rated current should be 1.25‑1.6 times system continuous working current. Also compare fuse total clearing I²t with your MOSFET / IGBT withstand I²t limit.
8: Mounting way for ANL‑B200ASF56?
8: Bolt‑down (stud mounting). Please follow dimension drawing, use proper torque for bolt installation to avoid over‑heat caused by loose connection.
