Description

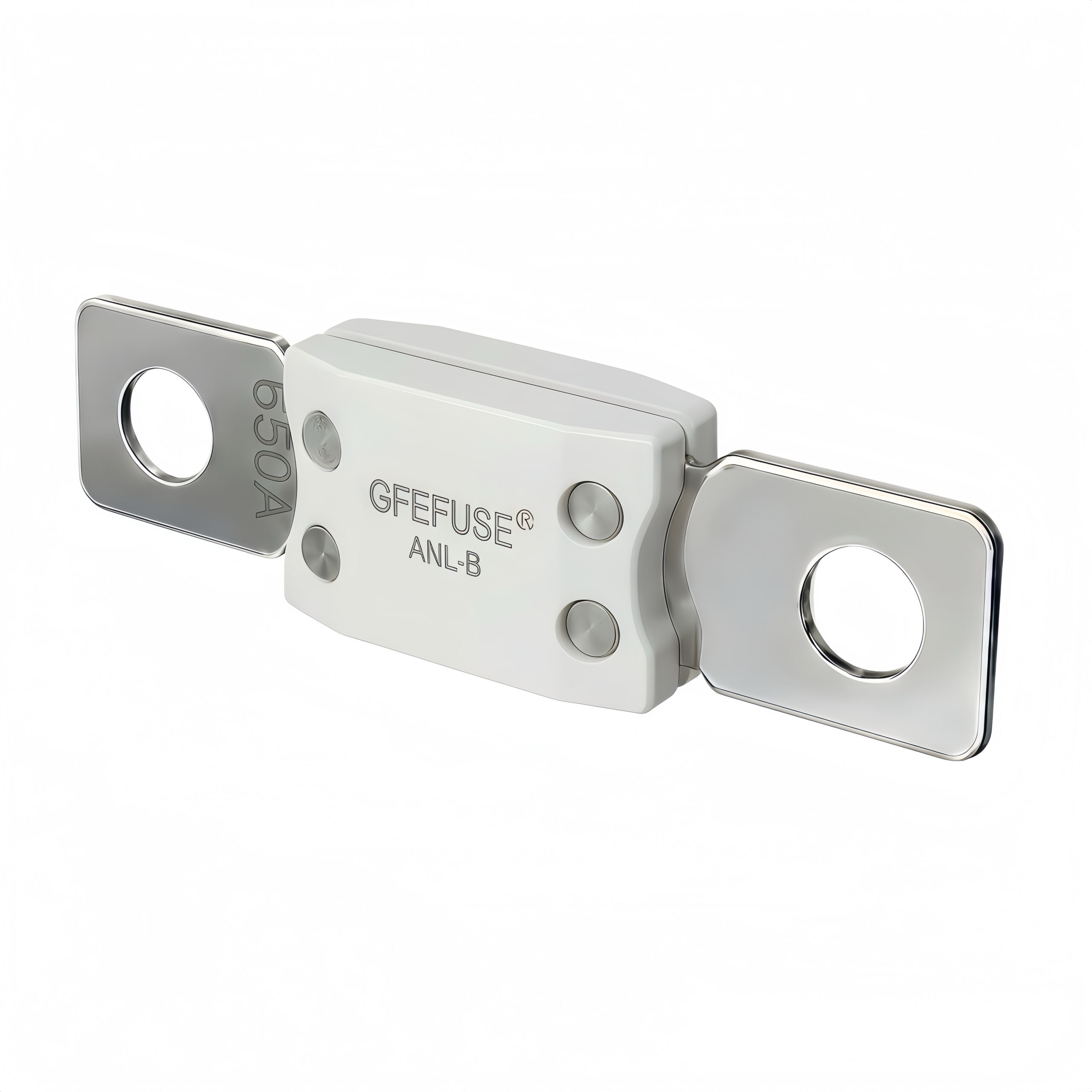

ANL-B200ASF56 Bolt-Down Ess Fuse
1.Dimensions (mm)
ANL-B200ASF56 Bolt-Down Ess Fuse 200A high current ANL fuse automotive marine heavy duty fuse
2.Specifications
- Product Features
- Compact design, suitable for high current applications.
- Rated DC voltage of 175volts
- Shell material: high-temperature PPS and ceramic
- The product complies with UL248-13standard
- High current wire protection
- Vehicle distribution (electric motorcycles, new energy trams, charging supporting systems)
- Material processing system
- Unmanned aerial vehicle power distribution protection
- All supercapacitor and battery systems (energy storage protection system)
- Operating temperature -40 ° C to+125 ° C
- Time-Current Characteristics
| % of Rating | Opening Time Min / Max |
| 100A – 700A | |
| 100 | 4H / ∞ |
| 300 | ~/10S |
4.Product specifications
| Part Number | Rating Current(A) | Pre-arcing I²t(A²s) | Arcing I²t(A²s) | Total Clearing I²t(A²s) |
| ANL-B200A100SF56 | 100A | 520 | 182 | 702 |
| ANL-B200A150SF56 | 150A | 980 | 280 | 1260 |
| ANL-B200A200SF56 | 200A | 1650 | 434 | 2084 |
| ANL-B200A250SF56 | 250A | 2600 | 665 | 3265 |
| ANL-B200A300SF56 | 300A | 3750 | 980 | 4730 |
| ANL-B200A350SF56 | 350A | 5100 | 1330 | 6430 |
| ANL-B200A400SF56 | 400A | 6800 | 1785 | 8585 |
| ANL-B200A450SF56 | 450A | 8250 | 2258 | 10508 |
| ANL-B200A500SF56 | 500A | 10800 | 2800 | 13600 |
| ANL-B200A550SF56 | 550A | 13100 | 3390 | 16495 |
| ANL-B200A600SF56 | 600A | 15600 | 3990 | 19590 |
| ANL-B200A650SF56 | 650A | 18250 | 4585 | 22835 |
| ANL-B200A700SF56 | 700A | 21000 | 5180 | 26180 |
- With a short-circuit current of 20kA and a relatively high interruption current, the melting and arcing energy is reduced simultaneously, resulting in a faster breaking speed and less impact on power devices.
- The overload operating threshold and voltage drop remain unchanged, and the long-term current carrying capacity is not affected by the short circuit level.
- This breakout specification meets the protection requirements of conventional low-voltage DC busbars, energy storage auxiliary circuits, and industrial control DC equipment.
- The system short-circuit current is stable within 20kA, and this set of parameters can be directly used for device I²t matching verification.
- It exhibits good arc extinction stability in low-voltage and low-interruption scenarios, and can be normally adapted to circuits with L/R ≤ 25ms.
- When selecting a device, a protection margin should be reserved, and the total breaking capacity I²t must be less than the withstand limit of the semiconductor device.
ANL-B200ASF56 Bolt-Down Ess Fuse (100A-700A, 150V/175V)
ANL-B200ASF56 Electrical Specifications
The ANL-B200ASF56 is a standard bolt-down type Ess Fuse with a wide current range from 100A to 700A, supporting 150V and 175V working voltage. Adopting bolt fixed installation design, this Ess fuse is widely used in new energy vehicles, battery packs, power distribution equipment and heavy-duty electrical systems. ANL-B200ASF56 features high breaking capacity, stable arc suppression performance, and long service life, meeting mainstream industrial and automotive circuit protection standards. All specifications of ANL-B200ASF56 bolt-down fuse can be checked in the official Ess Fuse datasheet.
