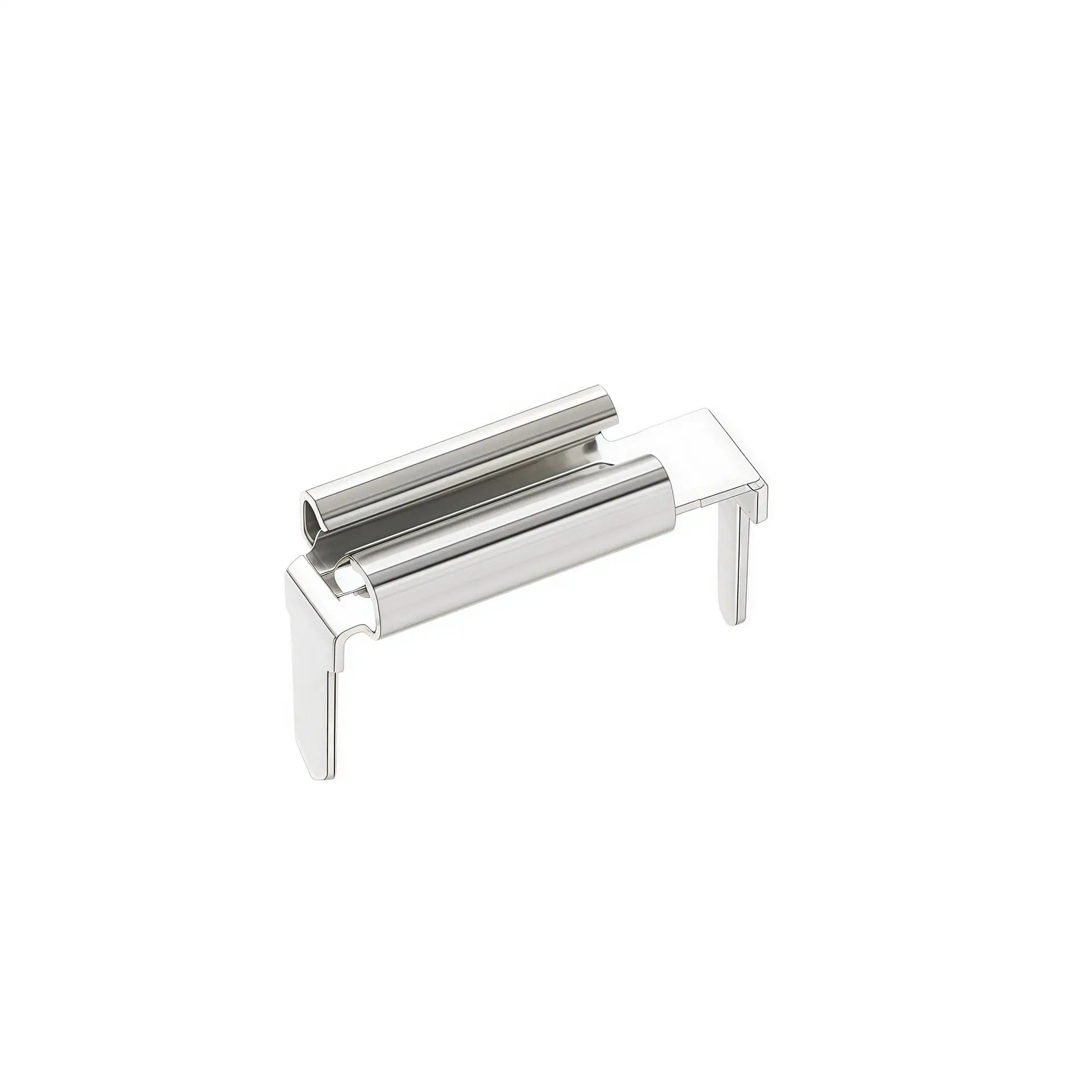

GF-717C Mini Blade Fuse Holder Clip | PCB Horizontal Mount
GF-717C mini blade fuse holder clip is a horizontal PCB-mount fuse clip engineered for GF-C series mini blade fuses. It adopts H65 brass contacts with tin-plated finish to ensure stable conductivity, low contact resistance and anti-oxidation performance. With qualified insertion and extraction force, this fuse clip is widely used on automotive PCBs for reliable overcurrent and short-circuit protection.
GF-717C-mini-blade-fuse-holder-clip
Main Features
- Product Model: GF-717C mini blade fuse holder clip
- Compatible Fuse: GF-C series mini blade fuses
- Contact Material: H65 brass, tin-plated
- Mounting Method: PCB horizontal mount
- Rated Specification: 30A, 500VAC
- Minimum insertion & extraction force: 1kg
- Stable clamping force, not easy to loose after repeated plugging
- Suitable for reflow soldering on printed circuit boards
- Compact structure, save PCB layout space
तकनीकी निर्देश
| Product Model | GF-717C Mini Blade Fuse Holder Clip |
| Matching Fuse | GF-C Series Mini Blade Fuse |
| Contact Material | H65 Brass, Tin-plated |
| Installation Type | PCB Horizontal Mount |
| Electrical Rating | 30A, 500VAC |
| Insertion & Extraction Force | Min. 1kg |
Application Scenarios
This GF-717C mini blade fuse clip is designed for automotive electronic control boards, vehicle lighting modules, on-board chargers and other automotive PCB circuits. It provides convenient replaceable fuse protection for mini blade fuses.
Installation Notice
- Horizontal soldering on PCB, confirm footprint before PCB design
- Only compatible with GF-C mini blade fuses, not interchangeable with ATO / Maxi fuse clips
- Do not exceed rated current and voltage during application
- Check clamping condition after long-term vibration environment operation
Packaging & Supply
Bulk packing or tape & reel packing available. We support sample testing, OEM service and stable bulk delivery for automotive electronics manufacturers.
अक्सर पूछे जाने वाले प्रश्न
Q: Which fuse works with GF-717C fuse clip?
A: GF-717C is matched with GF-C series mini blade fuses.
Q: Is GF-717C horizontal PCB mount?
A: Yes, it is horizontal PCB mounting type for mini blade fuses.
Q: What is the rating of GF-717C fuse holder clip?
A: Rated 30A at 500VAC with minimum 1kg insertion and extraction force.
