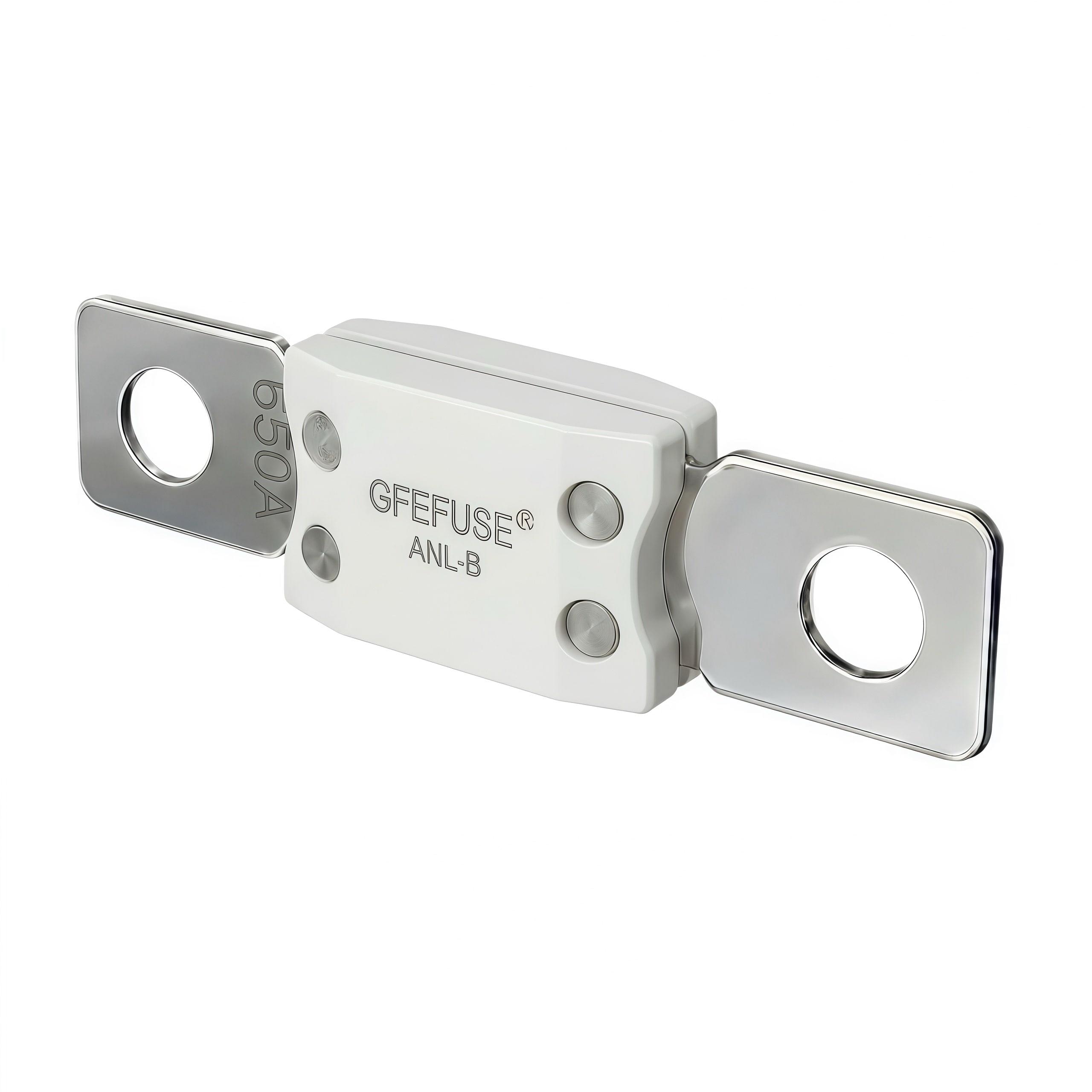

Ess Fuse ANL-B150BSF51 Bolt-Down Fuse
1.Dimensions (mm)
Ess Fuse ANL-B150BSF51 Bolt-Down Fuse
2.Specifications
- Product Features
- Compact design, suitable for high current applications.
- Rated DC voltage of 150 volts
- Shell material: high-temperature PPS and ceramic
- The product complies with UL248-13standard
- High current wire protection
- Vehicle distribution (electric motorcycles, new energy trams, charging supporting systems)
- Material processing system
- Unmanned aerial vehicle power distribution protection
- All supercapacitor and battery systems (energy storage protection system)
- Operating temperature -40 ° C to+125 ° C
- Time-Current Characteristics
| % of Rating | Opening Time Min / Max |
| 100A – 700A | |
| 100 | 4H / ∞ |
| 300 | ~/10S |
4.Product specifications
| Part Number | Rating Current(A) | Pre-arcing I²t(A²s) | Arcing I²t(A²s) | Total Clearing I²t(A²s) |
| ANL-B150B100SF51 | 100A | 520 | 260 | 780 |
| ANL-B150B150SF51 | 150A | 980 | 400 | 1380 |
| ANL-B150B200SF51 | 200A | 1650 | 620 | 2270 |
| ANL-B150B250SF51 | 250A | 2600 | 950 | 3550 |
| ANL-B150B300SF51 | 300A | 3750 | 1400 | 5150 |
| ANL-B150B350SF51 | 350A | 5100 | 1900 | 7000 |
| ANL-B150B400SF51 | 400A | 6800 | 2550 | 9350 |
| ANL-B150B450SF51 | 450A | 8250 | 3225 | 11475 |
| ANL-B150B500SF51 | 500A | 10800 | 4000 | 14800 |
| ANL-B150B550SF51 | 550A | 13100 | 4850 | 17950 |
| ANL-B150B600SF51 | 600A | 15600 | 5700 | 21300 |
| ANL-B150B650SF51 | 650A | 18250 | 6550 | 24800 |
| ANL-B150B700SF51 | 700A | 21000 | 7400 | 28400 |
- With a short-circuit current of 20kA and a relatively high interruption current, the melting and arcing energy is reduced simultaneously, resulting in a faster breaking speed and less impact on power devices.
- The overload operating threshold and voltage drop remain unchanged, and the long-term current carrying capacity is not affected by the short circuit level.
- This breakout specification meets the protection requirements of conventional low-voltage DC busbars, energy storage auxiliary circuits, and industrial control DC equipment.
- The system short-circuit current is stable within 20kA, and this set of parameters can be directly used for device I²t matching verification.
- It exhibits good arc extinction stability in low-voltage and low-interruption scenarios, and can be normally adapted to circuits with L/R ≤ 25ms.
- When selecting a device, a protection margin should be reserved, and the total breaking capacity I²t must be less than the withstand limit of the semiconductor device.
Ess Fuse ANL-B150BSF51 100A-700A 125V 150V Bolt-Down Fuse
ANL-B150BSF51 Electrical Specifications
The ANL-B150BSF51 is a bolt-down type Ess Fuse designed for high-current DC circuits, supporting continuous current from 100A to 700A with dual voltage rating of 125V and 150V. Adopting bolt fixed connection structure, this fuse delivers high breaking capacity and stable arc suppression performance. ANL-B150BSF51 is widely used in new energy vehicles, energy storage battery packs, construction machinery, heavy-duty trucks and low-voltage power distribution equipment. Complete technical parameters and dimension drawing of ANL-B150BSF51 bolt-down fuse can be obtained from the official datasheet.
