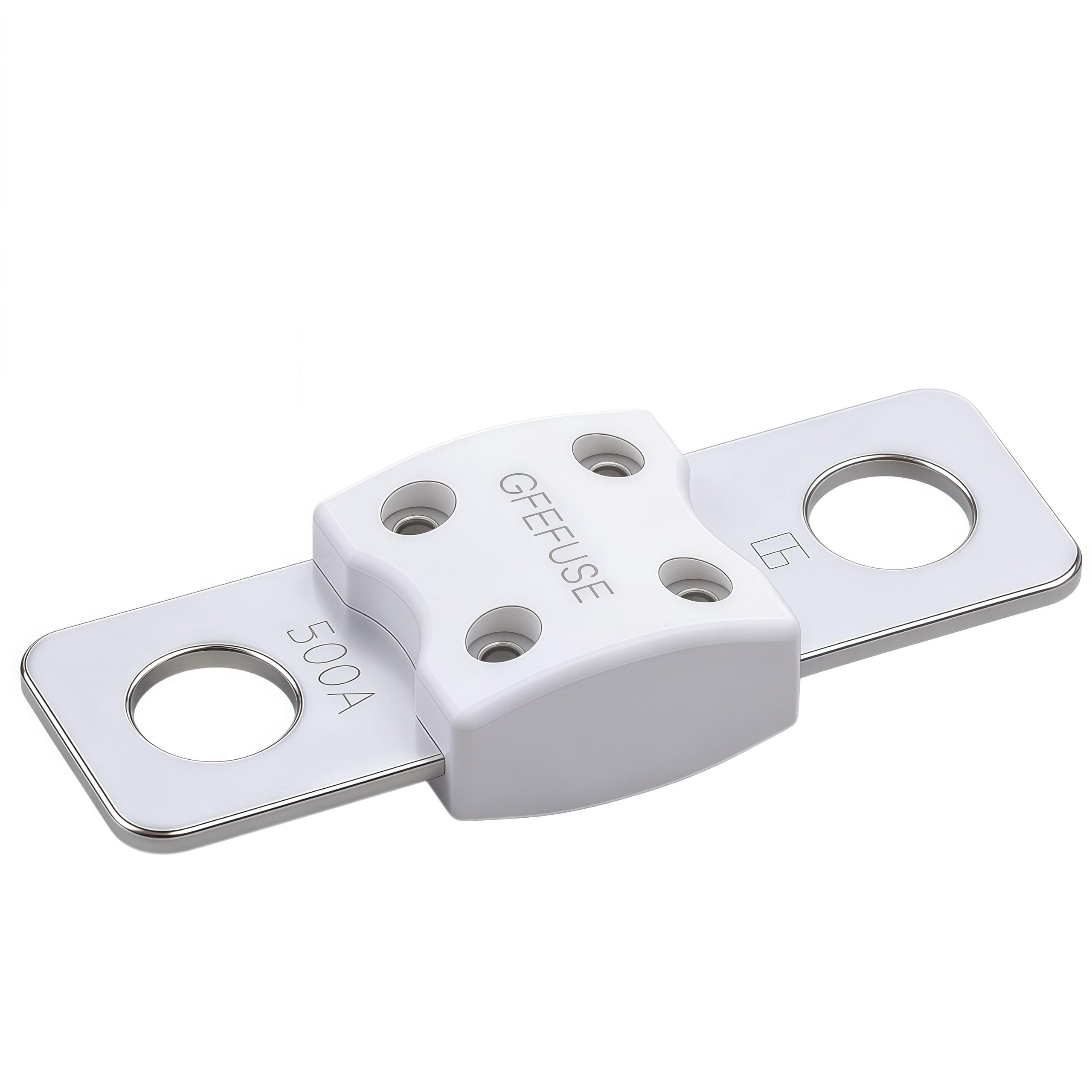

ANL-B150SF39 High Current Bolt-Down Fuse
1.Dimensions (mm)
- Specifications
- Product Features
- Compact design, suitable for high current applications.
- Rated DC voltage of 150 volts
- Segmentation capability: 150Vdc 20KA maximum, time constant 2.5-3ms
- High temperature resistant ceramic shell
- The product complies with UL248-13 GB/T13539 standard
- High current wire protection
- Vehicle distribution (electric motorcycles, new energy trams, charging supporting systems)
- Material processing system
- Unmanned aerial vehicle power distribution protection
- All supercapacitor and battery systems (energy storage protection system)
- Operating temperature -40 ° C to+125 ° C
3.Time-Current Characteristics
| % of Rating | Opening Time Min / Max |
| 100A – 800A | |
| 100 | 4H / ∞ |
| 300 | ~/10S |
4.Product specifications
| Part Number | Rated current (A) | Voltage Rating(v) | Pre-arcing I²t | Arcing I²t(Typ) | Total I²t |
| ANL-B150100SF39 | 100 |
150Vdc |
10000 | 3000 | 13000 |
| ANL-B150150SF39 | 150 | 22500 | 6750 | 29250 | |
| ANL-B150200SF39 | 200 | 40000 | 12000 | 52000 | |
| ANL-B150250SF39 | 250 | 62500 | 18750 | 81250 | |
| ANL-B150300SF39 | 300 | 92500 | 27750 | 120250 | |
| ANL-B150350SF39 | 350 | 122500 | 36750 | 159250 | |
| ANL-B150400SF39 | 400 | 192000 | 48000 | 240000 | |
| ANL-B150450SF39 | 450 | 233000 | 69900 | 302900 | |
| ANL-B150500SF39 | 500 | 276000 | 75000 | 351000 | |
| ANL-B150550SF39 | 550 | 285500 | 91700 | 377200 | |
| ANL-B150600SF39 | 600 | 295000 | 108000 | 403000 | |
| ANL-B150650SF39 | 650 | 406500 | 127000 | 533500 | |
| ANL-B150700SF39 | 700 | 518000 | 147000 | 665000 | |
| ANL-B150750SF39 | 750 | 610000 | 174000 | 784000 | |
| ANL-B150800SF39 | 800 | 85V | 640000 | 192000 | 832000 |
Note: Different currents can be customized according to different needs
ANL-B150SF39 100A-800A 150V High Current Bolt-Down Fuse
ANL-B150SF39 Core Specifications
The ANL-B150SF39 is a high-current bolt-down fuse designed for heavy load circuits. It supports a wide current range from 100A to 800A with a rated voltage of 150V. Adopting bolt fixed installation structure, this ANL-B150SF39 fuse features high breaking capacity, excellent arc extinguishing performance and stable long-term operation. Widely applied in new energy vehicles, energy storage battery packs, heavy trucks, construction machinery and low-voltage power distribution cabinets. All size and electrical parameters of ANL-B150SF39 bolt-down fuse can be found in the official technical datasheet.
