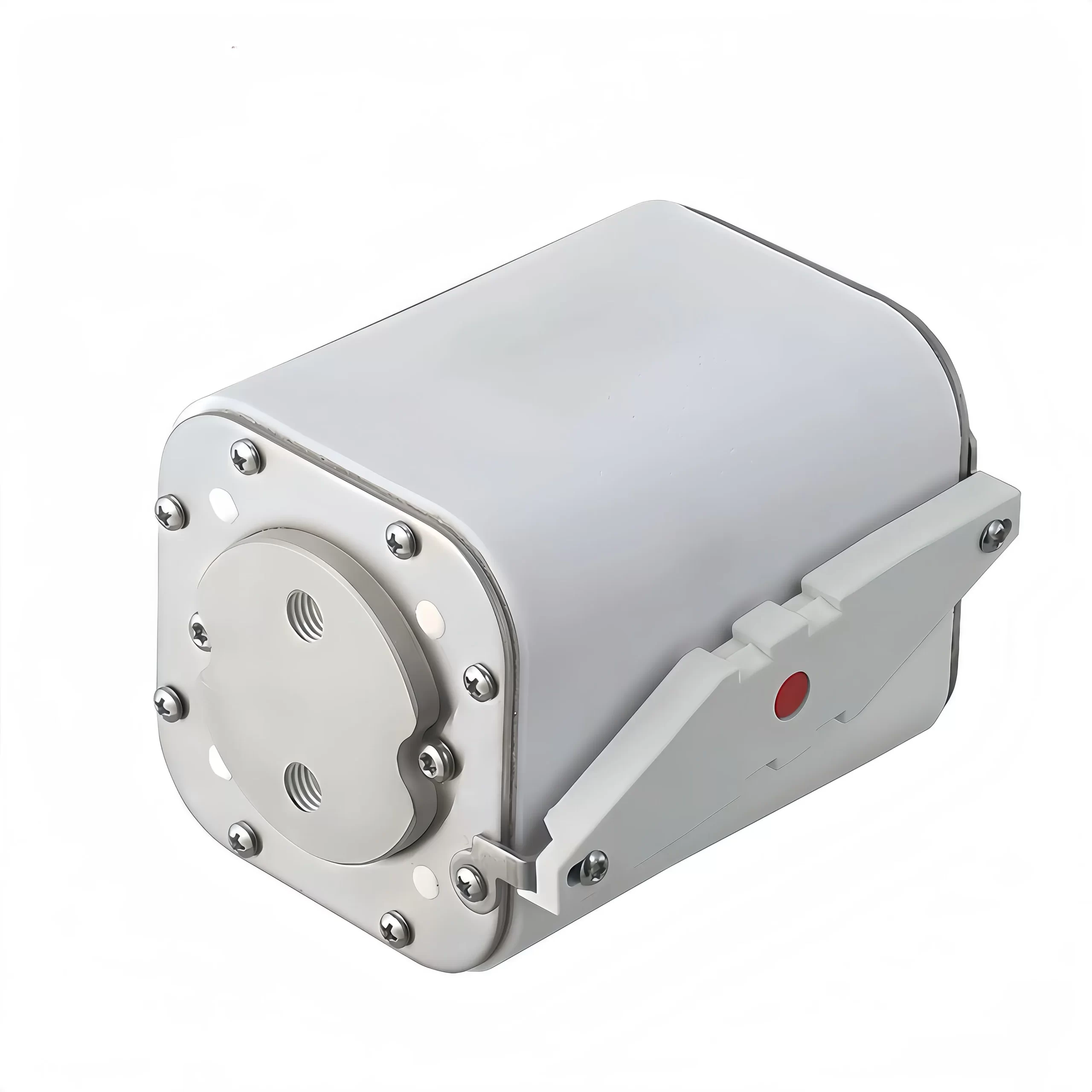

GFBFG4-S-105E Energy Storage Fuse Link 1500V DC 400A–2000A for ESS
Full Product Description
The GFBFG4-S-105E is a high-performance energy storage dedicated fuse link designed for 1500V DC ESS (Energy Storage System) applications. It covers a current range from 400A to 2000A and provides ultra-high breaking capacity up to 250kA @1500V DC with a time constant L/R ≤5ms.
This fuse link adopts advanced aR semiconductor protection characteristics, featuring fast fault interruption, high current-limiting performance, low power loss, and excellent thermal stability. It is widely used in large-scale battery energy storage systems, power conversion systems (PCS), battery clusters, energy storage cabinets, and high-power DC power distribution equipment.
The fuse link uses high-strength flame-retardant ceramic tube and high-purity copper conductors, ensuring stable performance under extreme working conditions. It complies with UL248-13, IEC60269, CE, RoHS and other international standards, making it ideal for global grid energy storage, industrial energy storage, and new energy projects.
Key Features
- Rated Voltage: 1500V DC
- Current Range: 400A – 2000A
- Breaking Capacity: 250kA @1500V DC (L/R ≤5ms)
- Protection Type: aR fast-acting semiconductor protection
- Excellent current-limiting capability & low I²T
- Bolt-down connection for stable and reliable installation
- High-grade ceramic body, flame-retardant and high temperature resistant
- Low power loss & long cycle life
- Wide operating temperature: -40℃ to +85℃
- Compliant with UL248-13, IEC60269, CE, RoHS
- Designed specifically for ESS long-term reliability
Applications
- Grid-scale battery energy storage systems (BESS)
- Energy storage PCS (power conversion system)
- Battery clusters, battery racks and battery cabinets
- High-power DC power distribution systems
- Solar & wind energy storage systems
- EV charging stations and high-power DC charging equipment
- Industrial energy storage & UPS backup power systems
- Rail transit and large industrial DC equipment
Why Choose EssFuse?
EssFuse is a professional manufacturer focusing on high-voltage DC fuses for energy storage and new energy. The GFBFG4-S-105E series is specially optimized for ESS applications with strict quality control, stable mass production, and complete international certifications. We provide competitive prices, fast delivery, and professional technical support for global customers and large-scale projects.
GFBFG4-S-105E Energy Storage Fuse Link 1500V DC 400A–2000A for ESS
Dimensions (mm)
Standards & Approvals
- Refer to UL 248-13
- Reach declaration available upon request
- CE certified
- RoHS compliant
Work/Storage Conditions
- Operating temperature: -40℃ to +85℃
- Storage:
- Fuses should be stored in their original packaging under clean, dust-free conditions
- Storage conditions should not exceed 70% relative humidity
- Storage temperature range: -40℃ to +85℃
Features & Benefits
- Bolt-connected fuse designed for partial range protection
- Strong current limiting and high breaking capacity
- Suitable for energy storage, wind power, and other industrial applications
- Provides short-circuit protection for energy storage systems, power systems, and other equipment
Fuse Ratings
| Part No. | Fuse Amps | Size | Average @ 250KA/1500Vdc | Power Loss (W) 1.0In | |
|---|---|---|---|---|---|
| A²s Melting | A²s Clearing | ||||
| GFBFG4-400S-105E | 400A | 4 # | 42,500 | 267,800 | 165 |
| GFBFG4-500S-105E | 500A | 4 # | 93,700 | 593,500 | 172 |
| GFBFG4-630S-105E | 630A | 4 # | 165,000 | 1,060,000 | 184 |
| GFBFG4-700S-105E | 700A | 4 # | 223,500 | 1,420,000 | 190 |
| GFBFG4-800S-105E | 800A | 4 # | 317,000 | 2,010,000 | 194 |
| GFBFG4-900S-105E | 900A | 4 # | 443,000 | 2,800,500 | 203 |
| GFBFG4-1000S-105E | 1000A | 4 # | 665,000 | 4,190,000 | 210 |
| GFBFG4-1100S-105E | 1100A | 4 # | 795,600 | 5,050,400 | 220 |
| GFBFG4-1200S-105E | 1200A | 4 # | 954,000 | 6,065,670 | 243 |
| GFBFG4-1250S-105E | 1250A | 4 # | 1,154,000 | 7,250,780 | 255 |
| GFBFG4-1300S-105E | 1300A | 4 # | 1,331,000 | 8,520,500 | 261 |
| GFBFG4-1350S-105E | 1350A | 4 # | 1,450,000 | 9,140,800 | 268 |
| GFBFG4-1400S-105E | 1400A | 4 # | 1,765,000 | 11,200,500 | 273 |
| GFBFG4-1500S-105E | 1500A | 4 # | 1,934,000 | 12,175,530 | 280 |
| GFBFG4-1600S-105E | 1600A | 4 # | 2,435,000 | 15,580,500 | 291 |
| GFBFG4-1800S-105E | 1800A | 4 # | 3,045,000 | 19,200,700 | 310 |
| *GFBFG4-2000S-105E | *2000A | 4 # | 4,050,000 | 25,820,000 | 348 |
| * If there are any requirements, please communicate with the original factory staff first. | |||||
