What is the working principle of the fuse holder?
EssFuse: A fuse holder (a type of fuse accessory) can be considered as a device that accepts input power and protects it as effectively as possible through a fuse. During this process, it is possible to incorporate additional features into the product, and some common components of fuse accessories can be defined as follows:
The terminal is responsible for receiving current from the circuit into the fuse accessory and sending it back to the circuit.
The contacts are responsible for connecting with the fuse to deliver and receive current to and from the fuse, usually in the form of clips or holes.
Various fuse holders may contain additional components, but they depend on the product type.

EssFuse : Chinese fuse holder, panel fuse holder, PCB fuse holder, inline fuse holder, automotive fuse holder, bolt fuse holder, high current fuse holder and other professional manufacturers

What is the Working Principle of the Fuse Holder?

A fuse holder is a specialized electrical component designed to securely mount, connect and protect fuses, while cooperating with fuses to realize circuit overcurrent and short-circuit protection. Its working principle is closely coordinated with the fuse itself, forming a complete circuit protection system to ensure the safe operation of electrical equipment.

Basic Structural Components of Fuse Holder

To fully understand its working principle, it is essential to clarify its core structural parts, which jointly support the normal operation of the fuse holder:

Conductive Terminals: Made of high-conductivity copper or brass, responsible for stably connecting the fuse with the circuit, ensuring smooth current transmission and reducing contact resistance.
Insulation Shell: Adopt flame-retardant, high-temperature resistant insulating materials (such as PA66, ceramic), which play an insulating and protective role, prevent electric leakage and short circuit, and isolate internal arcs.
Fuse Fixing Structure: Including clips, bolts, slots and other structures, used to tightly fix the fuse, avoid poor contact caused by vibration or displacement, and ensure reliable electrical connection.
Arc Extinguishing Structure (High-Power Models): Equipped with arc extinguishing chamber or quartz sand filler, used to quickly eliminate electric arcs generated when the fuse is blown, and avoid circuit damage.

Core Working Principle of Fuse Holder

The fuse holder does not have the function of active circuit protection, but it provides a stable carrier and connection platform for the fuse, and its working principle is centered on stable current conduction, reliable fuse matching and auxiliary safety protection.

1. Normal Operation State

Under normal circuit current, the fuse holder firmly clamps or fixes the fuse through its internal conductive terminals and fixing structure, forming a complete conductive path. The current flows smoothly through the conductive terminals of the fuse holder and the fuse inside, without affecting the normal power supply of the circuit, and the insulation shell effectively isolates the charged parts to ensure safe use.

2. Overload/Short-Circuit Protection State

When the circuit has overload, excessive current or short-circuit fault, the current flows through the fuse holder to the fuse. The fuse melts rapidly under the action of overcurrent heat, cutting off the fault current. At this time, the fuse holder plays three key auxiliary roles:

First, it keeps the melted fuse in a fixed position to prevent displacement from causing secondary short circuit;
Second, the insulation shell isolates the high-temperature arc and heat generated when the fuse is blown, avoiding fire or electric shock risks;
Third, the arc extinguishing structure (if equipped) quickly cools and extinguishes the arc, accelerating the circuit disconnection speed and protecting peripheral equipment.

3. Post-Fault Replacement State

After the fuse is blown, the fuse holder can quickly disassemble and replace the new fuse without rewiring or damaging the circuit. It restores the conductive connection of the circuit, realizing reusable circuit protection and reducing maintenance costs.

Key Characteristics of Fuse Holder Working Principle

Passive Cooperation: It works with the fuse to complete protection, and cannot independently realize circuit breaking;
Stable Conduction: Minimizes contact resistance to ensure normal current transmission without additional power loss;
Safety Isolation: Effectively isolate electric arcs, high temperature and current, prevent potential safety hazards;
Convenient Maintenance: Realize quick fuse replacement, simplify circuit maintenance and repair operations.

Common Types & Corresponding Working Principles

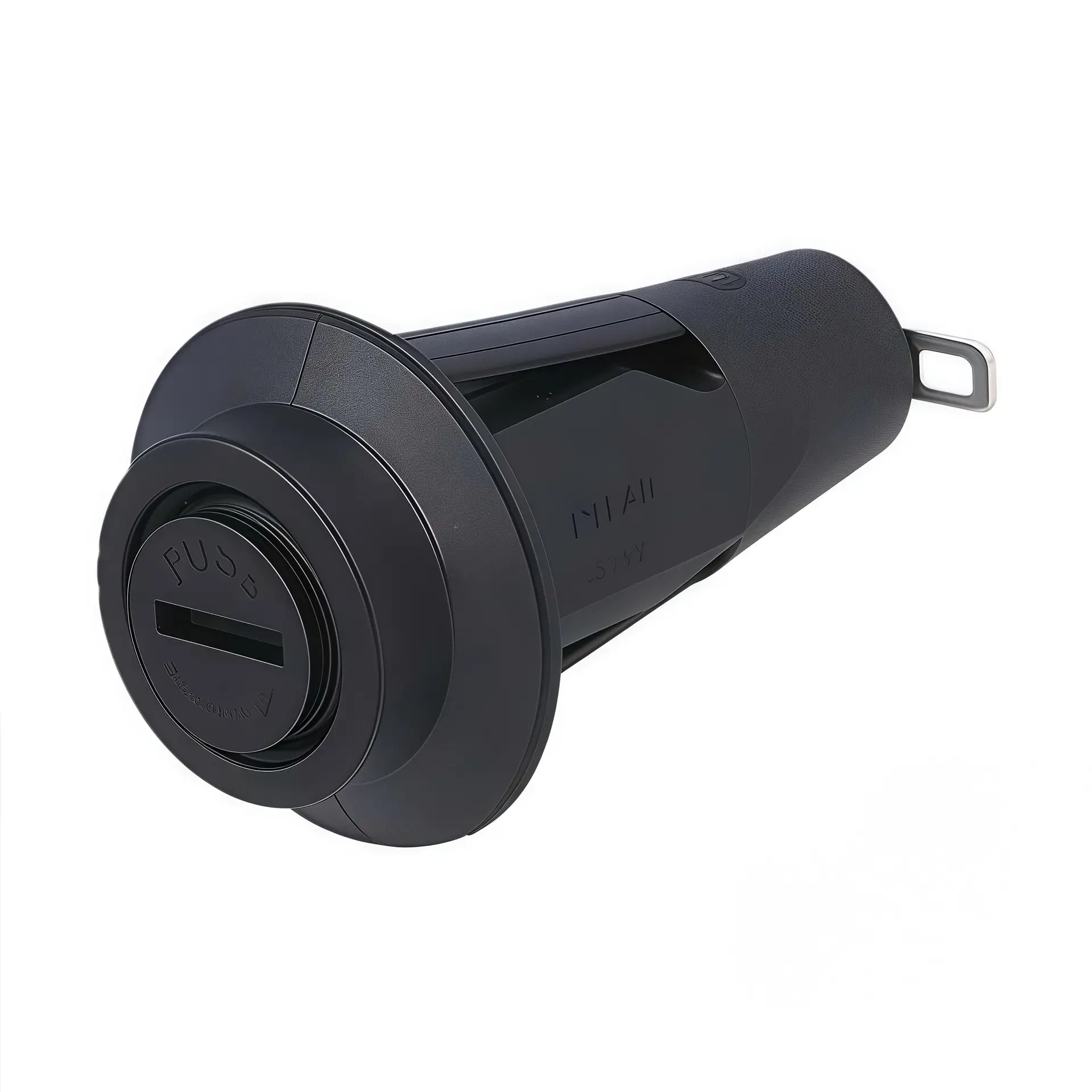

Panel Mount Fuse Holder: Fixed on the equipment panel, with external operation design, convenient for fuse replacement, suitable for large electrical equipment;
PCB Mount Fuse Holder: Welded directly on the printed circuit board, compact in size, realizing miniaturized circuit connection and protection, suitable for electronic equipment;
Bolt-On Fuse Holder: Fixed by bolts, with strong stability and large current carrying capacity, suitable for high-current circuits such as automobiles and energy storage;
Inline Fuse Holder: Connected in series in the wire, flexible in installation, suitable for small household appliances and automotive circuits.
